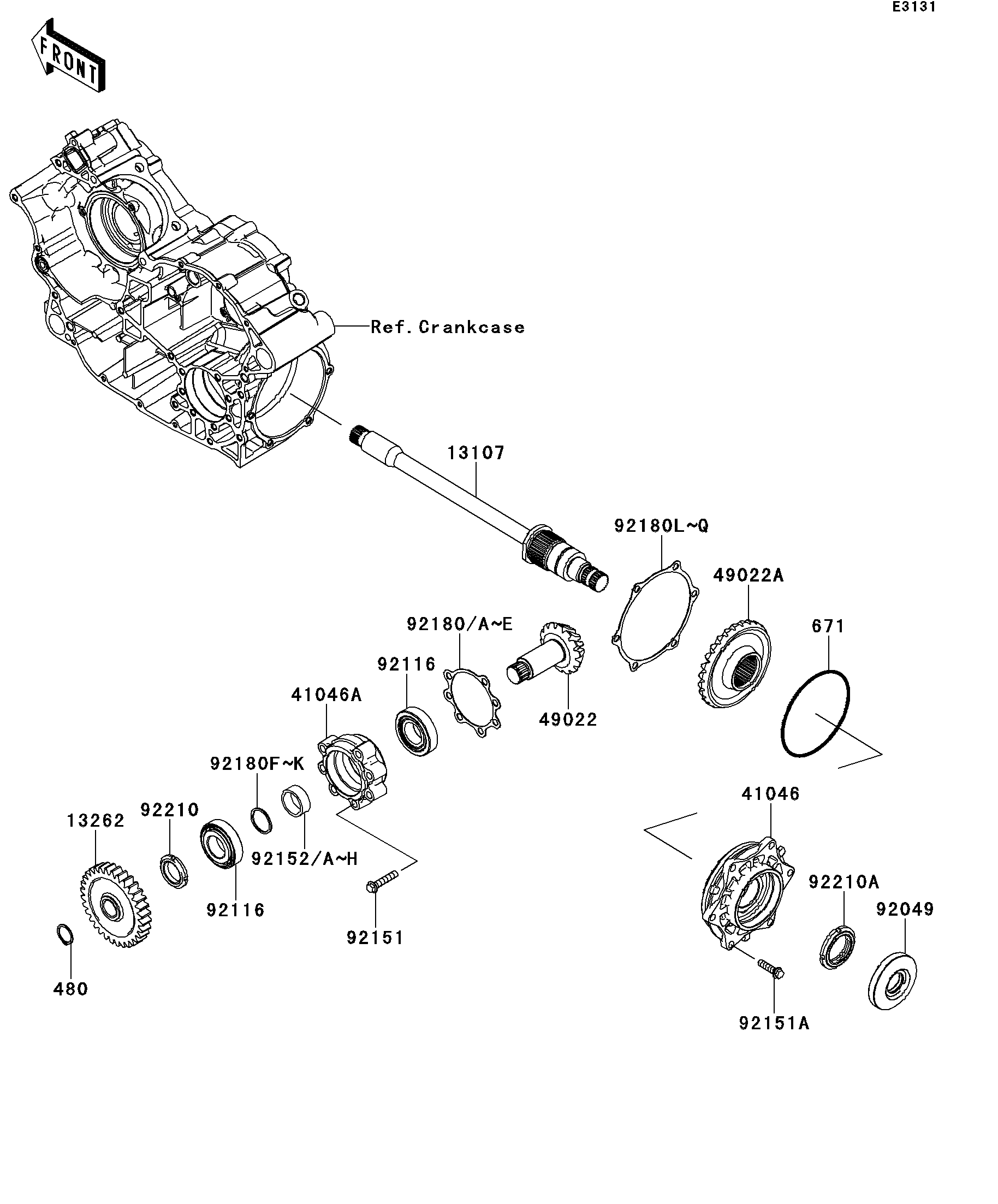

2013 TERYX4™ 750 4x4 (Canadian) - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
13107
13107
13262
13262
41046
41046
41046A
41046A
480
480
49022
49022
49022A
49022A
92049
92049
92116
92116
92116
92116
92151
92151
92151A
92151A
92152
92152
92152A
92152A
92152B
92152B
92152C
92152C
92152D
92152D
92152E
92152E
92152F
92152F
92152G
92152G
92152H
92152H
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
92180D
92180D
92180E
92180E
92180F
92180F
92180G
92180G
92180H
92180H
92180I
92180I
92180J
92180J
92180K
92180K
92180L
92180L
92180M
92180M
92180N
92180N
92180O
92180O
92180P
92180P
92180Q
92180Q
92210
92210
92210A
92210A
671
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,OUTPUT 13107 13107-0717 1
GEAR,OUTPUT,32T 13262 13262-0868 1
HOUSING-BEARING,DRIVEN 41046 41046-0026 1
HOUSING-BEARING,DRIVE 41046A 41046-0572 1
CIRCLIP-TYPE-C,24MM 480 480J2400 1
GEAR-BEVEL,DRIVE,14T 49022 49022-0560 1
GEAR-BEVEL,DRIVEN,27T 49022A 49022-0561 1
SEAL-OIL 92049 92049-0712 1
BEARING-ROLLER,HR30206JUQU42 92116 92116-0568 2
BOLT,8X40 92151 92151-1621 7
BOLT-FLANGED-SMALL,8X30 92151A 92151-1688 6
COLLAR,30.2X37X13.1 92152 92152-0947 AR
COLLAR,30.2X37X13.2 92152A 92152-0948 AR
COLLAR,30.2X37X13.3 92152B 92152-0949 AR
COLLAR,30.2X37X13.4 92152C 92152-0950 AR
COLLAR,30.2X37X13.5 92152D 92152-0951 AR
COLLAR,30.2X37X13.6 92152E 92152-0952 AR
COLLAR,30.2X37X13.7 92152F 92152-0953 1
COLLAR,30.2X37X13.8 92152G 92152-0954 AR
COLLAR,30.2X37X13.9 92152H 92152-0955 AR
SHIM,DRIVE,T=0.15 92180 92180-0702 AR
SHIM,DRIVE,T=0.20 92180A 92180-0703 AR
SHIM,DRIVE,T=0.50 92180B 92180-0704 AR
SHIM,DRIVE,T=0.80 92180C 92180-0705 AR
SHIM,DRIVE,T=1.0 92180D 92180-0706 1
SHIM,DRIVE,T=1.2 92180E 92180-0707 AR
SHIM,DRIVE,T=1.70 92180F 92180-0708 AR
SHIM,DRIVE,T=1.72 92180G 92180-0709 AR
SHIM,DRIVE,T=1.74 92180H 92180-0710 AR
SHIM,DRIVE,T=1.76 92180I 92180-0711 AR
SHIM,DRIVE,T=1.78 92180J 92180-0712 1
SHIM,DRIVE,T=1.80 92180K 92180-0713 AR
SHIM,DRIVEN,T=0.15 92180L 92180-0714 AR
SHIM,DRIVEN,T=0.20 92180M 92180-0715 AR
SHIM,DRIVEN,T=0.50 92180N 92180-0716 AR
SHIM,DRIVEN,T=0.80 92180O 92180-0717 AR
SHIM,DRIVEN,T=1.0 92180P 92180-0718 1
SHIM,DRIVEN,T=1.2 92180Q 92180-0719 AR
NUT,30MM 92210 92210-0762 1
NUT,40MM 92210A 92210-0795 1
O RING,115MM 671 671D25115 1
