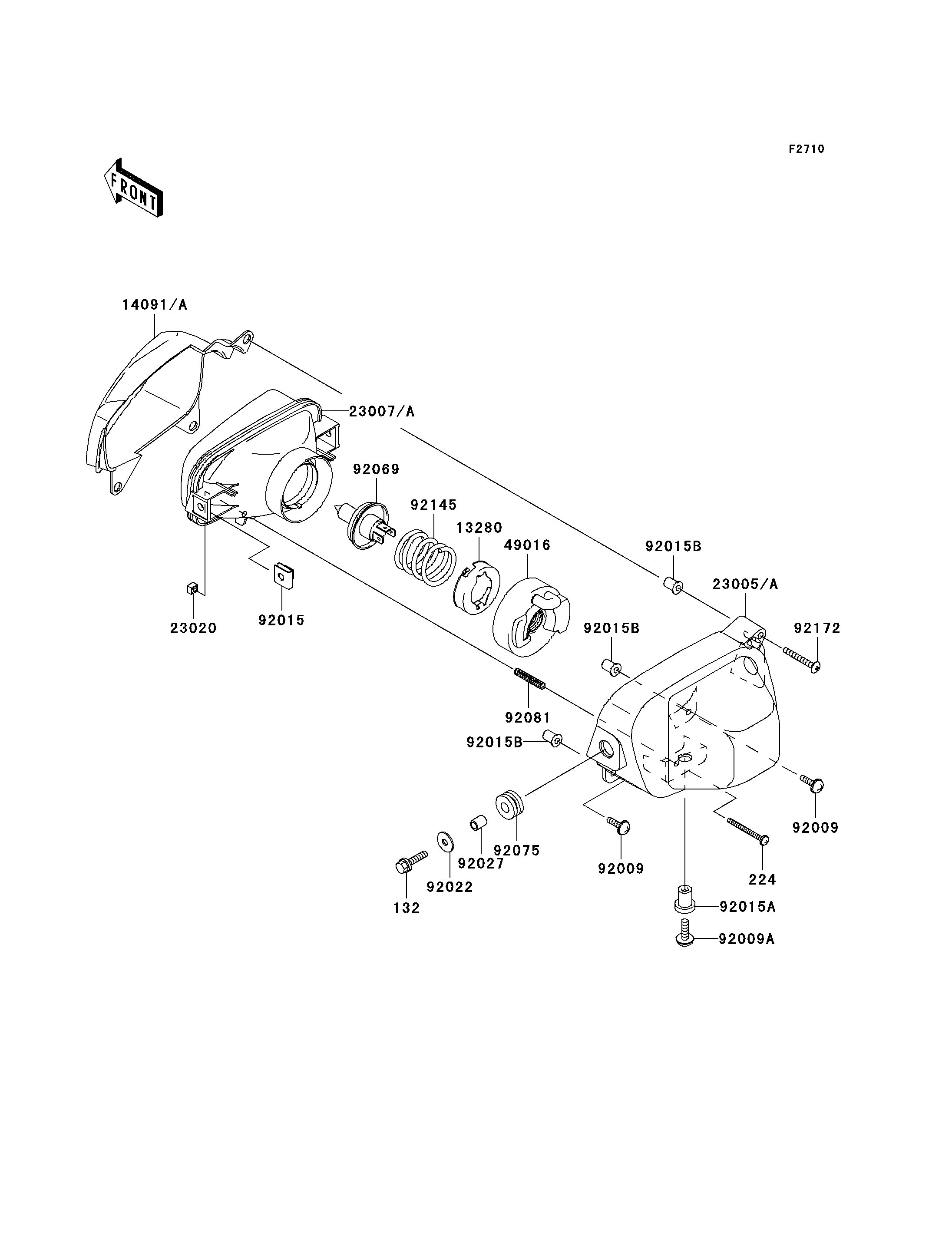

2006 KFX700 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
132
224
13280
14091
14091A
23005
23005A
23007
23007A
23020
49016
92009
92009
92009A
92015
92015A
92015B
92015B
92015B
92022
92027
92069
92075
92081
92145
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132H0625 4
SCREW-PAN-WP-CROS,4X45 224 224D0445 2
HOLDER,BULB SETTING 13280 13280-1198 2
COVER,HEAD LAMP GRILL,LH,BLACK 14091 14091-0061-6Z 1
COVER,HEAD LAMP GRILL,RH,BLACK 14091A 14091-0062-6Z 1
BODY-COMP-HEAD LAMP,LH 23005 23005-1180 1
BODY-COMP-HEAD LAMP,RH 23005A 23005-1181 1
LENS-COMP,HEAD LAMP,LH 23007 23007-1389 1
LENS-COMP,HEAD LAMP,RH 23007A 23007-1390 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
COVER-SEAL,HEAD LAMP 49016 49016-1213 2
SCREW,5X16,BLACK 92009 92009-1654 4
SCREW,6X22 92009A 92009-1664 2
NUT,6MM 92015 92015-1094 4
NUT,RUBBER,6MM 92015A 92015-1692 2
NUT,WELL,5MM 92015B 92015-1757 6
WASHER,6.5X20X1.6 92022 92022-125 4
COLLAR,6.8X10X12 92027 92027-162 4
BULB,12V 45/45W,T15 92069 92069-1114 2
DAMPER 92075 92075-1690 4
SPRING,FOCUS ADJUST 92081 92081-1896 2
SPRING,BULB SETTING 92145 92145-1346 2
SCREW,5X40 92172 92172-0063 2
