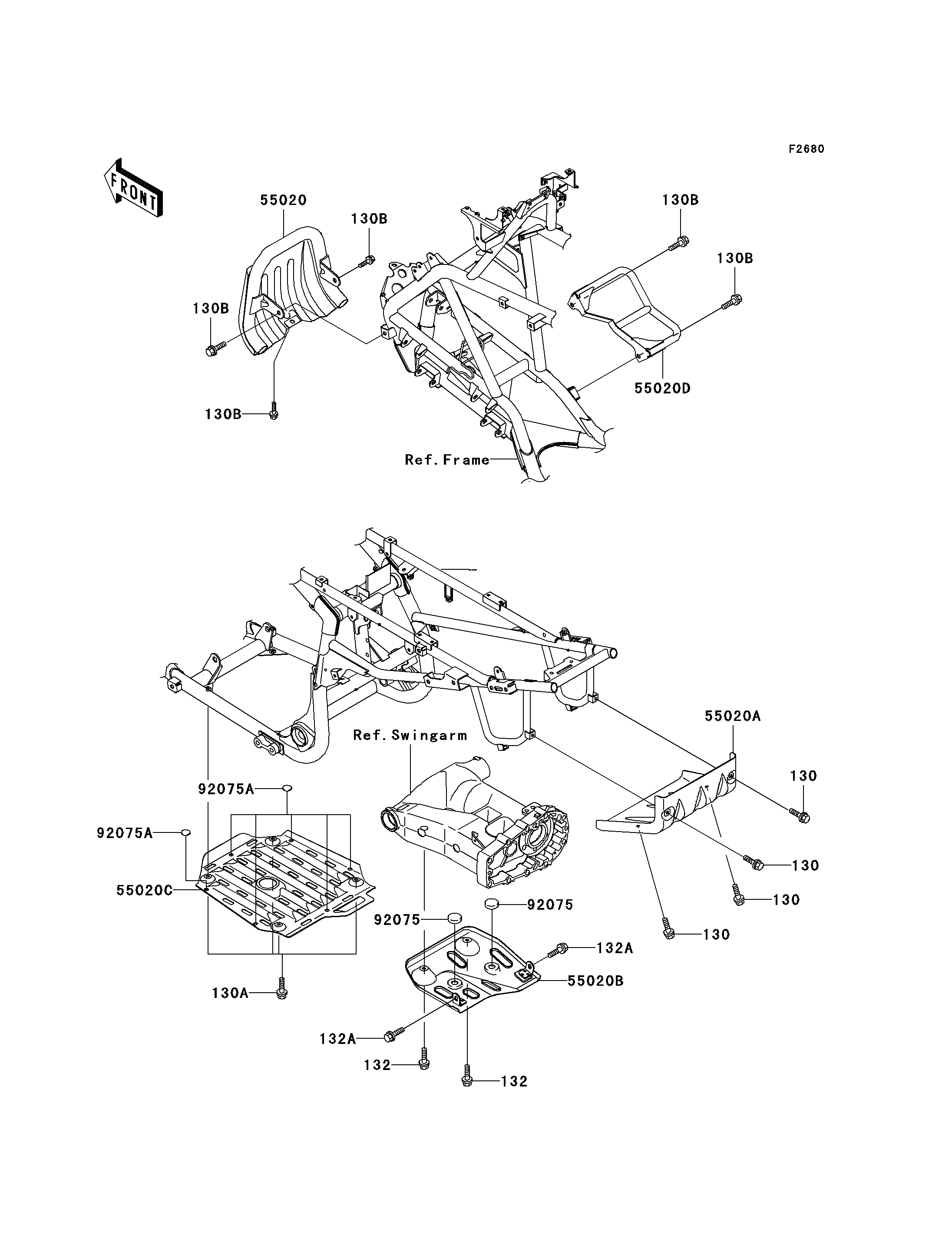

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
130
130
130
130A
130B
130B
130B
130B
130B
132
132
132A
132A
55020
55020A
55020B
55020C
55020D
92075
92075
92075A
92075A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X10 | 130 | 130J0610 | 4 | ||
| BOLT-FLANGED,6X12 | 130A | 130J0612 | 4 | ||
| BOLT-FLANGED,8X14 | 130B | 130J0814 | 5 | ||
| BOLT-FLANGED-SMALL,6X12 | 132 | 132J0612 | 2 | ||
| BOLT-FLANGED-SMALL,8X16 | 132A | 132J0816 | 2 | ||
| GUARD,FR,G.GRAY | 55020 | 55020-0010-HN | 1 | ||
| GUARD,FUEL TANK | 55020A | 55020-0011 | 1 | ||
| GUARD,SWING ARM | 55020B | 55020-0032 | 1 | ||
| GUARD,ENGINE | 55020C | 55020-1802 | 1 | ||
| GUARD,BELT CONVERTER,G.GRAY | 55020D | 55020-1810-HN | 1 | ||
| DAMPER | 92075 | 92075-157 | 2 | ||
| DAMPER,RUBBER | 92075A | 92075-261 | 6 |
