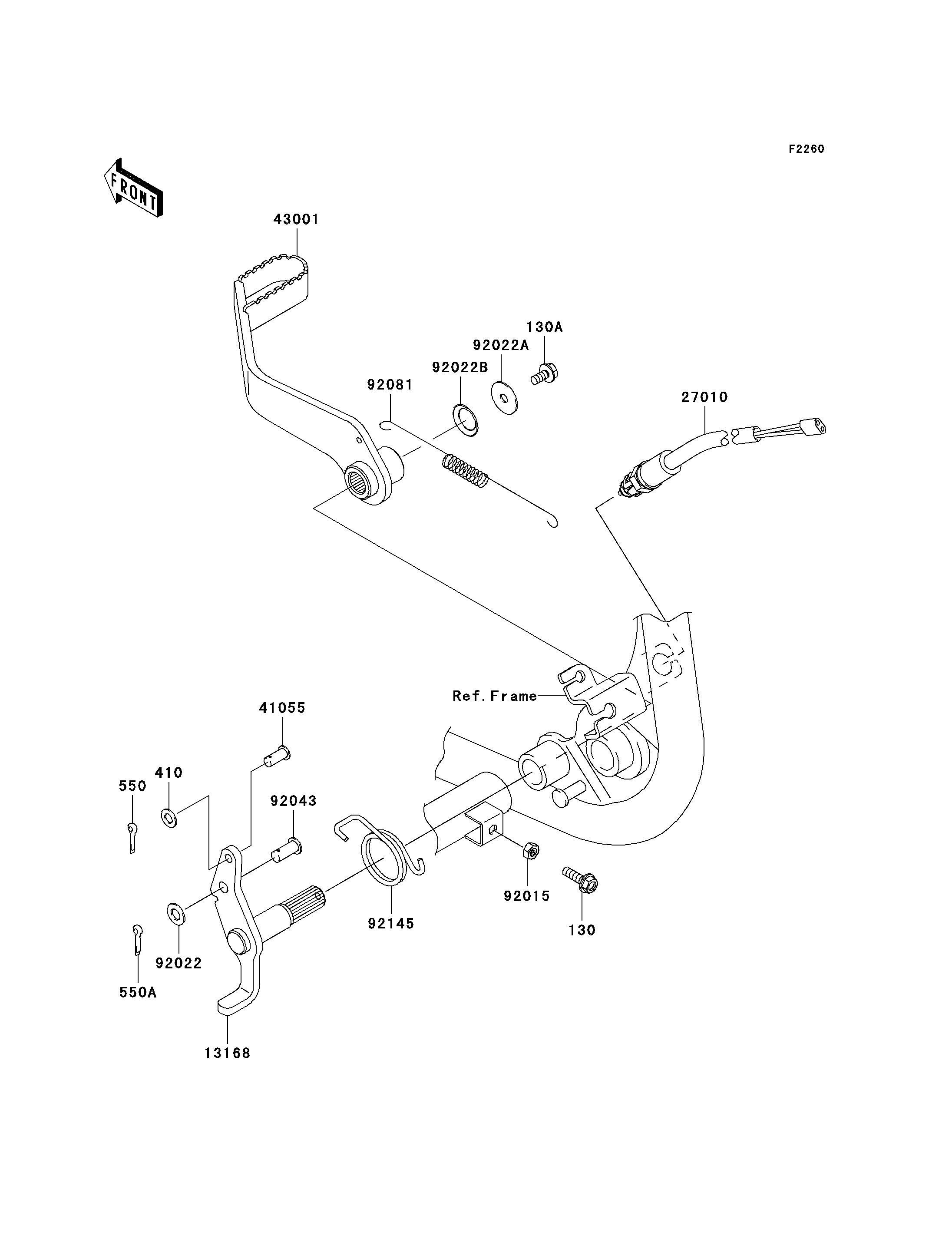

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X20 | 130 | 130G0620 | 1 | ||
| BOLT-FLANGED,6X12 | 130A | 130J0612 | 1 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 1 | ||
| PIN-COTTER,1.2X10 | 550 | 550D1210 | 1 | ||
| PIN-COTTER,2.0X15 | 550A | 550D2015 | 1 | ||
| LEVER | 13168 | 13168-0014 | 1 | ||
| SWITCH,BRAKE | 27010 | 27010-1494 | 1 | ||
| PIN | 41055 | 41055-003 | 1 | ||
| LEVER-BRAKE,PEDAL,G.GRAY | 43001 | 43001-0011-HN | 1 | ||
| NUT,6MM | 92015 | 92015-1410 | 1 | ||
| WASHER,8.5X16X1.2 | 92022 | 92022-1582 | 1 | ||
| WASHER,6.5X24X2 | 92022A | 92022-1690 | 1 | ||
| WASHER,SPRING,T=0.3 | 92022B | 92022-1943 | 1 | ||
| PIN,8X16 | 92043 | 92043-1013 | 1 | ||
| SPRING,BRAKE SWITCH | 92081 | 92081-1565 | 1 | ||
| SPRING,BRAKE PEDAL RETURN | 92145 | 92145-1534 | 1 |
