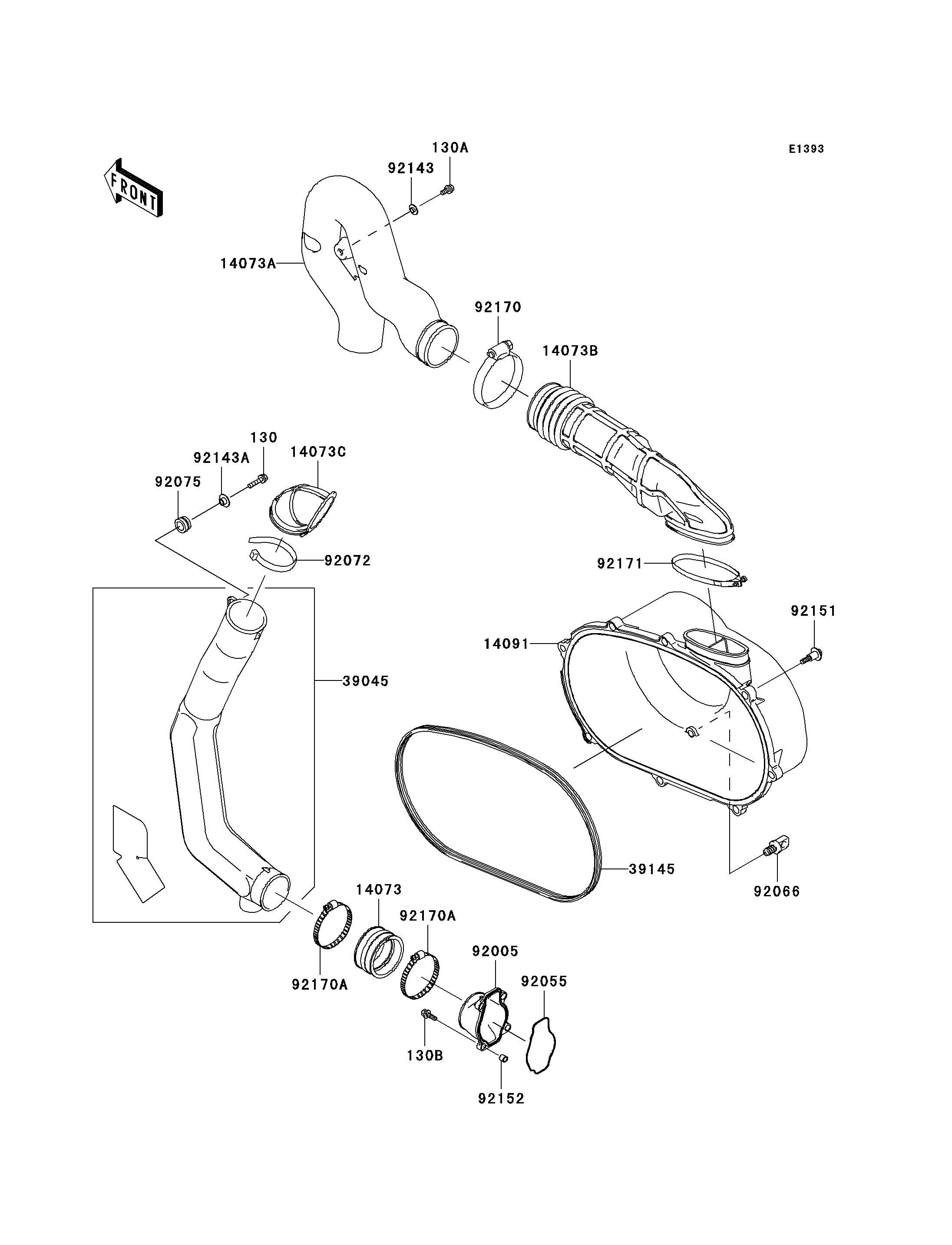

2006 KFX700 - Converter Cover

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
14073
14073A
14073B
14073C
14091
39045
39145
92005
92055
92066
92072
92075
92143
92143A
92151
92152
92170
92170A
92170A
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130G0625 1
BOLT-FLANGED,6X12 130A 130J0612 1
BOLT-FLANGED,6X20 130B 130Z0620 4
DUCT,JOINT 14073 14073-1775 1
DUCT,EXHAUST 14073A 14073-1850 1
DUCT,EXHAUST JOINT 14073B 14073-1851 1
DUCT,SNORKEL TOP 14073C 14073-1853 1
COVER,BELT CONVERTER 14091 14091-1535 1
DUCT-ASSY,SNORKEL 39045 39045-1072 1
TRIM-SEAL 39145 39145-1135 1
FITTING 92005 92005-1387 1
RING-O 92055 92055-1630 1
PLUG,DRAIN,11X19 92066 92066-1580 1
BAND,L=365 92072 92072-1197 1
DAMPER,RUBBER 92075 92075-1123 1
COLLAR 92143 92143-1087 1
COLLAR 92143A 92143-1353 1
BOLT,FLANGED,M6X13.5X16.5 92151 92151-1686 8
COLLAR 92152 92152-1332 4
CLAMP 92170 92170-1763 1
CLAMP 92170A 92170-1764 2
CLAMP 92171 92171-1554 1
