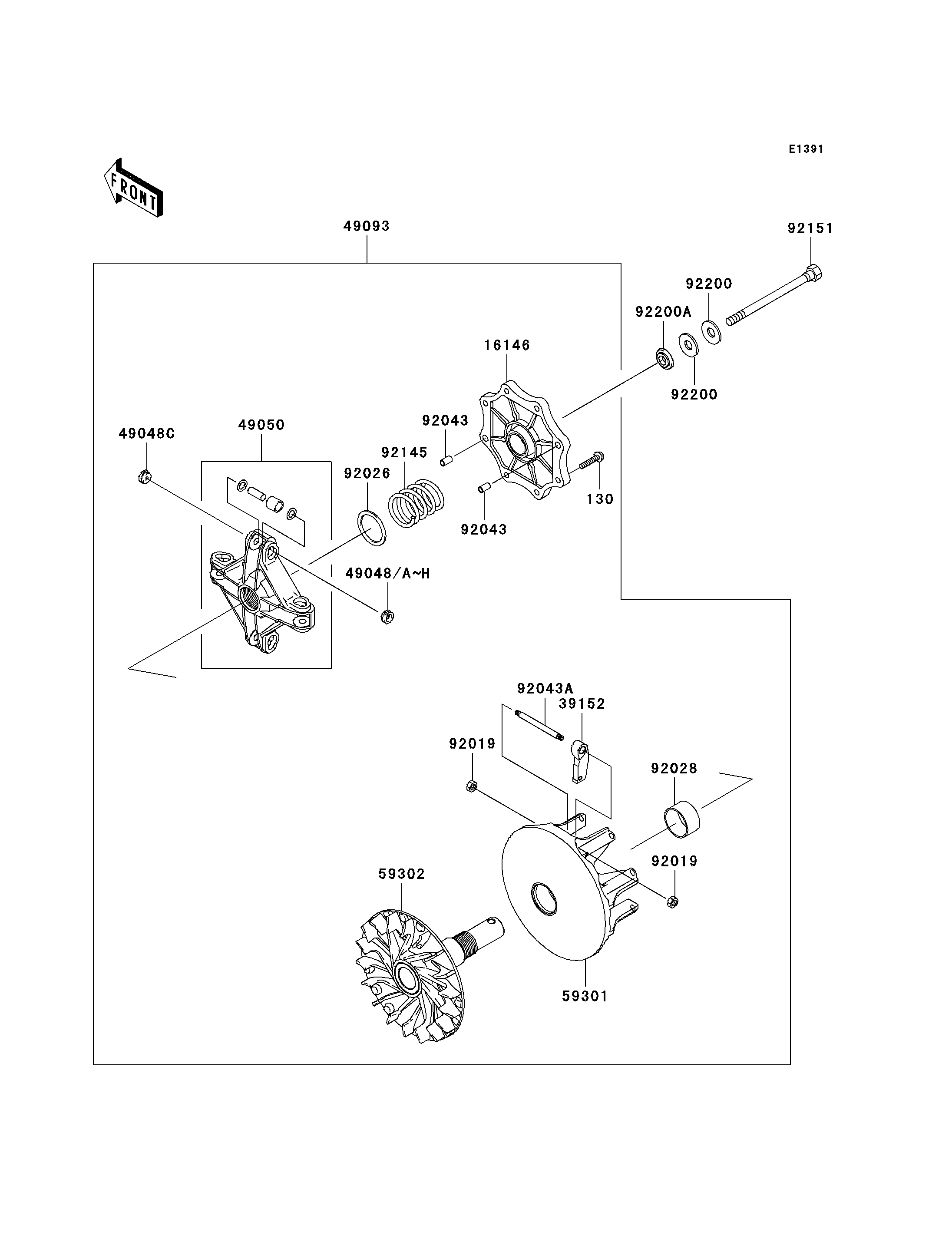

2006 KFX700 - Drive Converter

DOWNLOAD PDF
SELECT A NEW PART
130
16146
39152
49048
49048A
49048B
49048C
49048C
49048D
49048E
49048F
49048G
49048H
49050
49093
59301
59302
92019
92019
92026
92028
92043
92043
92043A
92145
92151
92200
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130T0630 8
COVER-ASSY 16146 16146-1231 1
WEIGHT-RAMP 39152 39152-1088 4
SHOE,T=7.2 49048 49048-1087 AR
SHOE,T=7.3 49048A 49048-1088 AR
SHOE,T=7.4 49048B 49048-1089 AR
SHOE,T=7.5 49048C 49048-1090 8
SHOE,T=7.6 49048D 49048-1091 AR
SHOE,T=7.7 49048E 49048-1092 AR
SHOE,T=7.8 49048F 49048-1093 AR
SHOE,T=7.9 49048G 49048-1094 AR
SHOE,T=8.0 49048H 49048-1095 AR
SPIDER 49050 49050-1081 1
CONVERTER-ASSY-DRIVE 49093 49093-0010 1
SHEAVE-MOVABLE 59301 59301-1070 1
SHEAVE-COMP 59302 59302-0003 1
NUT,LOCK,6MM 92019 92019-008 8
SPACER,39X49.5X1.0 92026 92026-1603 1
BUSHING 92028 92028-1975 1
PIN,6.2X8X14 92043 92043-1263 2
PIN 92043A 92043-1688 4
SPRING 92145 92145-0021 1
BOLT,12X165 92151 92151-1393 1
WASHER,SPRING 92200 92200-1504 2
WASHER 92200A 92200-1634 1
