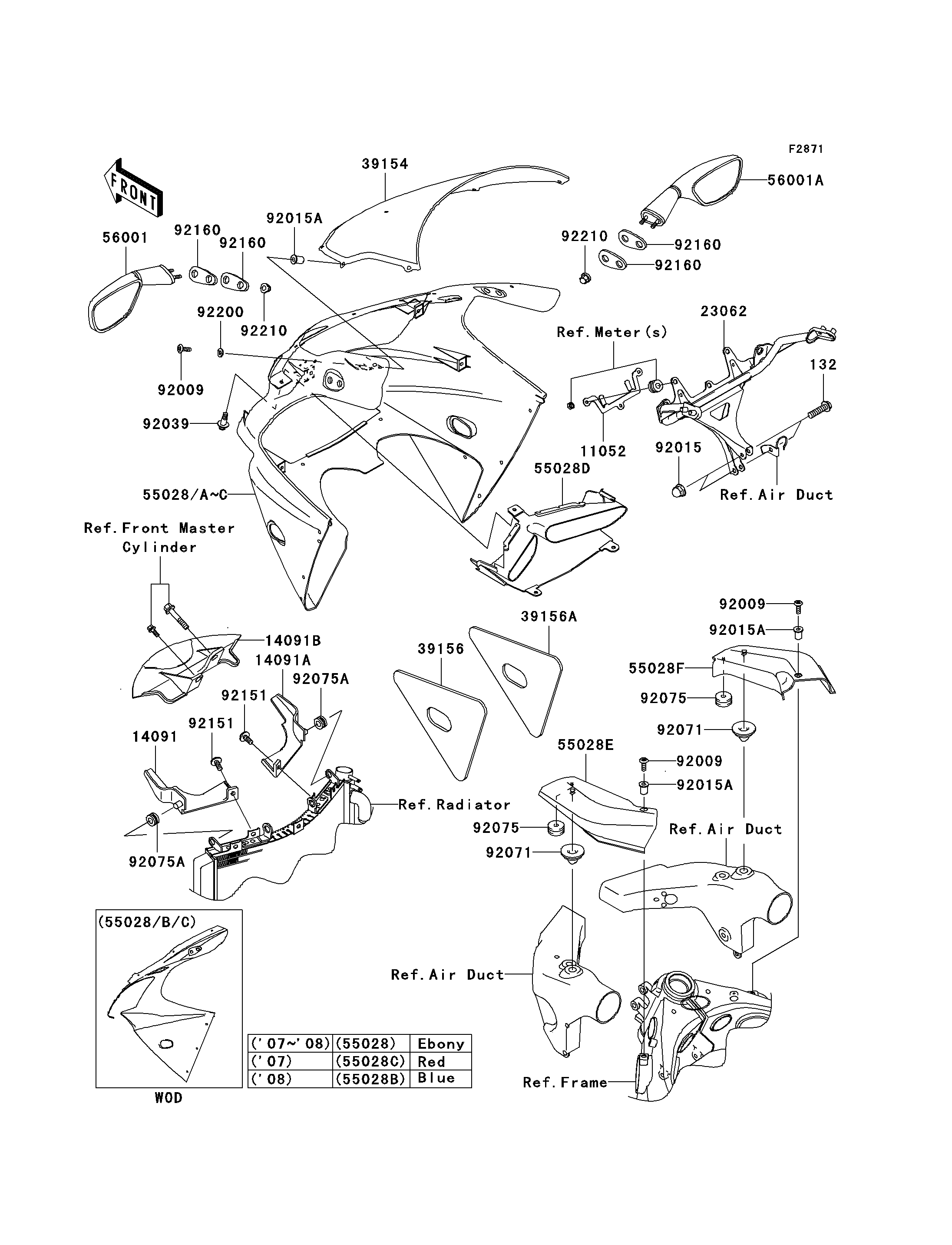

2008 ZZR®600 - Cowling

DOWNLOAD PDF
SELECT A NEW PART
132
11052
14091
14091A
14091B
23062
39154
39156
39156A
55028
55028B
55028D
55028E
55028F
56001
56001A
92009
92009
92009
92015
92015A
92015A
92015A
92039
92071
92071
92075
92075
92075A
92075A
92151
92151
92160
92160
92160
92160
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X30 132 132J0830 2
BRACKET,HEAD LAMP RELAY 11052 11052-1822 1
COVER,RADIATOR,LH 14091 14091-1170 1
COVER,RADIATOR,RH 14091A 14091-1171 1
COVER,UNDER BRACKET 14091B 14091-1271 1
BRACKET-COMP,METER&MIRROR STAY 23062 23062-1139 1
WINDSHIELD 39154 39154-5017 1
PAD,UPP COWLING,LH 39156 39156-1622 1
PAD,UPP COWLING,RH 39156A 39156-1623 1
COWLING,UPP,EBONY 55028 55028-1390-H8 1
COWLING,UPP,C.P.BLUE 55028B 55028-1390-723 1
COWLING,DUCT,M.F.C.GRAY 55028D 55028-1391-3L 1
COWLING,INNER,LH 55028E 55028-1394 1
COWLING,INNER,RH 55028F 55028-1395 1
MIRROR-ASSY,LH 56001 56001-1483 1
MIRROR-ASSY,RH 56001A 56001-1484 1
SCREW,5X16 92009 92009-1909 8
NUT,CAP,8MM,BLACK 92015 92015-1174 2
NUT,WELL,5MM 92015A 92015-1757 8
RIVET 92039 92039-1227 1
GROMMET 92071 92071-1222 2
DAMPER 92075 92075-1067 2
DAMPER 92075A 92075-1912 2
BOLT,SOCKET,6X14 92151 92151-1654 2
DAMPER,MIRROR 92160 92160-1089 4
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 6
NUT,CAP,6MM 92210 92210-0003 4
