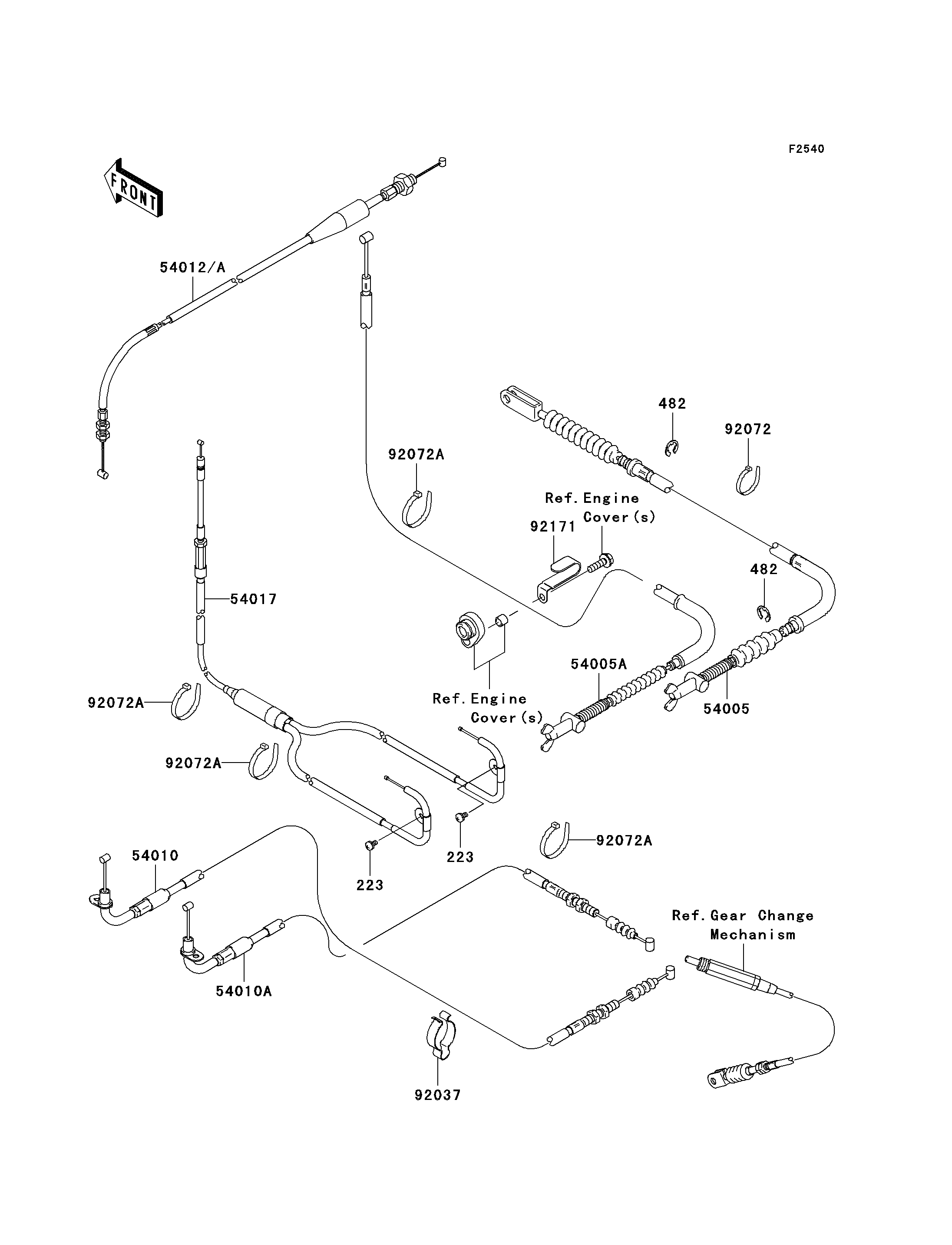

Parts Diagrams |
223
223
482
482
54005
54005A
54010
54010A
54012A
54017
92037
92072
92072A
92072A
92072A
92072A
92171
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-WS-CROS | 223 | 223D0408 | 2 | ||
| CIRCLIP-TYPE-E,8MM | 482 | 482L8000 | 2 | ||
| CABLE-BRAKE,REAR | 54005 | 54005-1217 | 1 | ||
| CABLE-BRAKE,PARKING | 54005A | 54005-1218 | 1 | ||
| CABLE,SHIFT,PULL | 54010 | 54010-1130 | 1 | ||
| CABLE,SHIFT,PUSH | 54010A | 54010-1131 | 1 | ||
| CABLE-THROTTLE | 54012A | 54012-0124 | 1 | ||
| CABLE-STARTER | 54017 | 54017-1226 | 1 | ||
| CLAMP | 92037 | 92037-093 | 1 | ||
| BAND,L=123 | 92072 | 92072-030 | 1 | ||
| BAND,L=188 | 92072A | 92072-1239 | 4 | ||
| CLAMP | 92171 | 92171-1230 | 1 |
| SCREW-PAN-WS-CROS | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-E,8MM | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CABLE-BRAKE,REAR | |
| REF # | 54005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-BRAKE,PARKING | |
| REF # | 54005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE,SHIFT,PULL | |
| REF # | 54010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE,SHIFT,PUSH | |
| REF # | 54010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-THROTTLE | |
| REF # | 54012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-STARTER | |
| REF # | 54017 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=123 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=188 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
