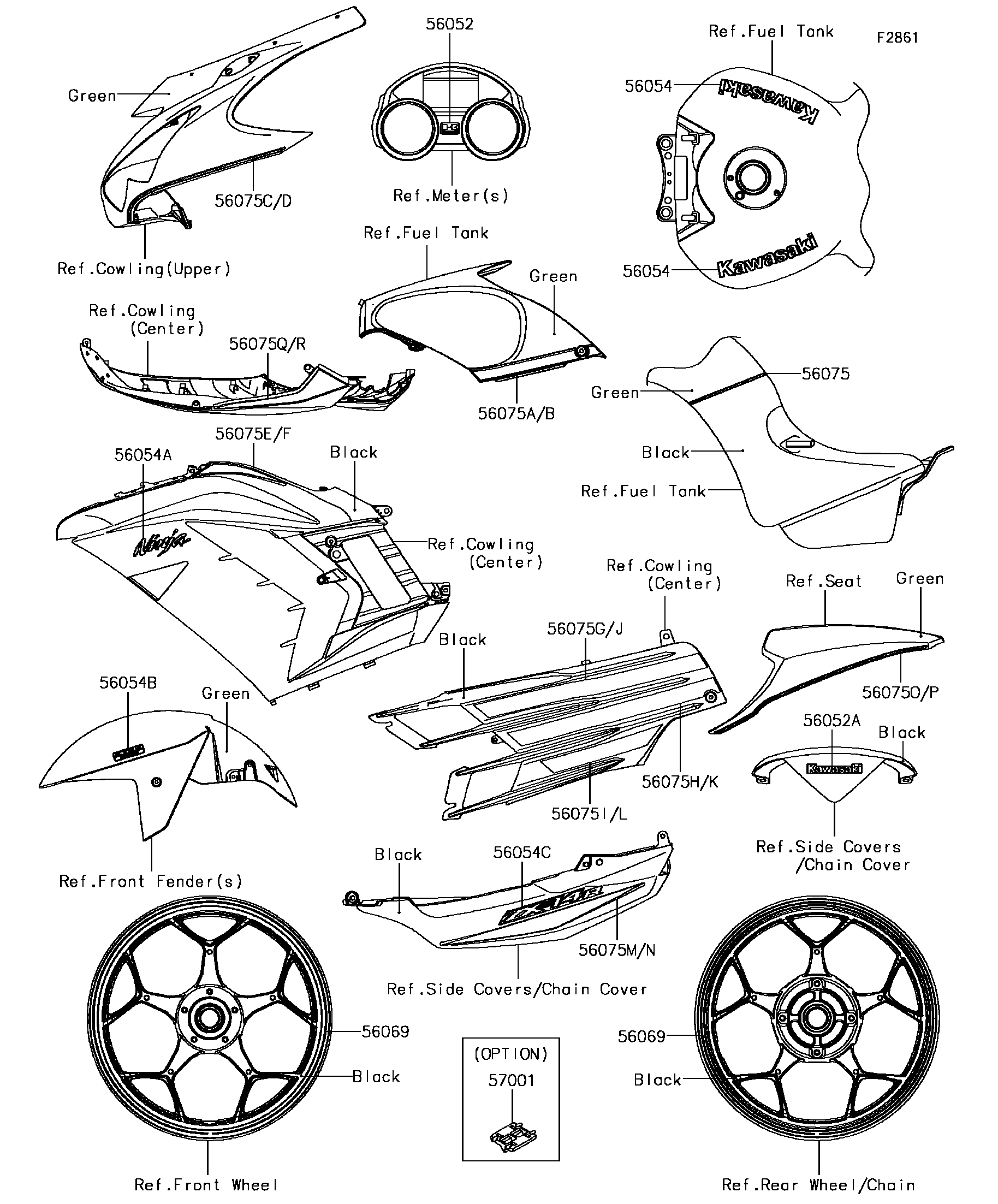

2016 Ninja ZX-14R ABS - Decals(Green)(HGF)

DOWNLOAD PDF
SELECT A NEW PART
56052
56052A
56054
56054
56054A
56054B
56054C
56069
56069
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
56075H
56075I
56075J
56075K
56075L
56075M
56075N
56075O
56075P
56075Q
56075R
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,K.KAWASAKI 56052 56052-1202 1
MARK,TAIL COVER,KAWASAKI 56052A 56052-1597 1
MARK,FUEL TANK,KAWASAKI 56054 56054-0948 2
MARK,SIDE COWLING,NINJA 56054A 56054-0949 2
MARK,FR FENDER,KTRC ABS 56054B 56054-0953 2
MARK,TAIL COVER,ZX-14R 56054C 56054-1974 2
PATTERN,WHEEL,GRN,4X1353 56069 56069-2527 4
PATTERN,FUEL TANK,CNT 56075 56075-1436 1
PATTERN,TANK COVER,LH 56075A 56075-1437 1
PATTERN,TANK COVER,RH 56075B 56075-1438 1
PATTERN,UPP COWL.,LH 56075C 56075-1439 1
PATTERN,UPP COWL.,RH 56075D 56075-1440 1
PATTERN,SIDE COWL.,LH,LWR 56075E 56075-1442 1
PATTERN,SIDE COWL.,RH,LWR 56075F 56075-1444 1
PATTERN,SIDE COVER,LH,UPP 56075G 56075-1445 1
PATTERN,SIDE COVER,LH,CNT 56075H 56075-1446 1
PATTERN,SIDE COVER,LH,LWR 56075I 56075-1447 1
PATTERN,SIDE COVER,RH,UPP 56075J 56075-1448 1
PATTERN,SIDE COVER,RH,CNT 56075K 56075-1449 1
PATTERN,SIDE COVER,RH,LWR 56075L 56075-1450 1
PATTERN,TAIL COVER,LH 56075M 56075-1451 1
PATTERN,TAIL COVER,RH 56075N 56075-1452 1
PATTERN,SEAT COVER,LH 56075O 56075-1453 1
PATTERN,SEAT COVER,RH 56075P 56075-1454 1
PATTERN,SIDE COWL.,LH,UPP 56075Q 56075-1833 1
PATTERN,SIDE COWL.,RH,UPP 56075R 56075-1834 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
