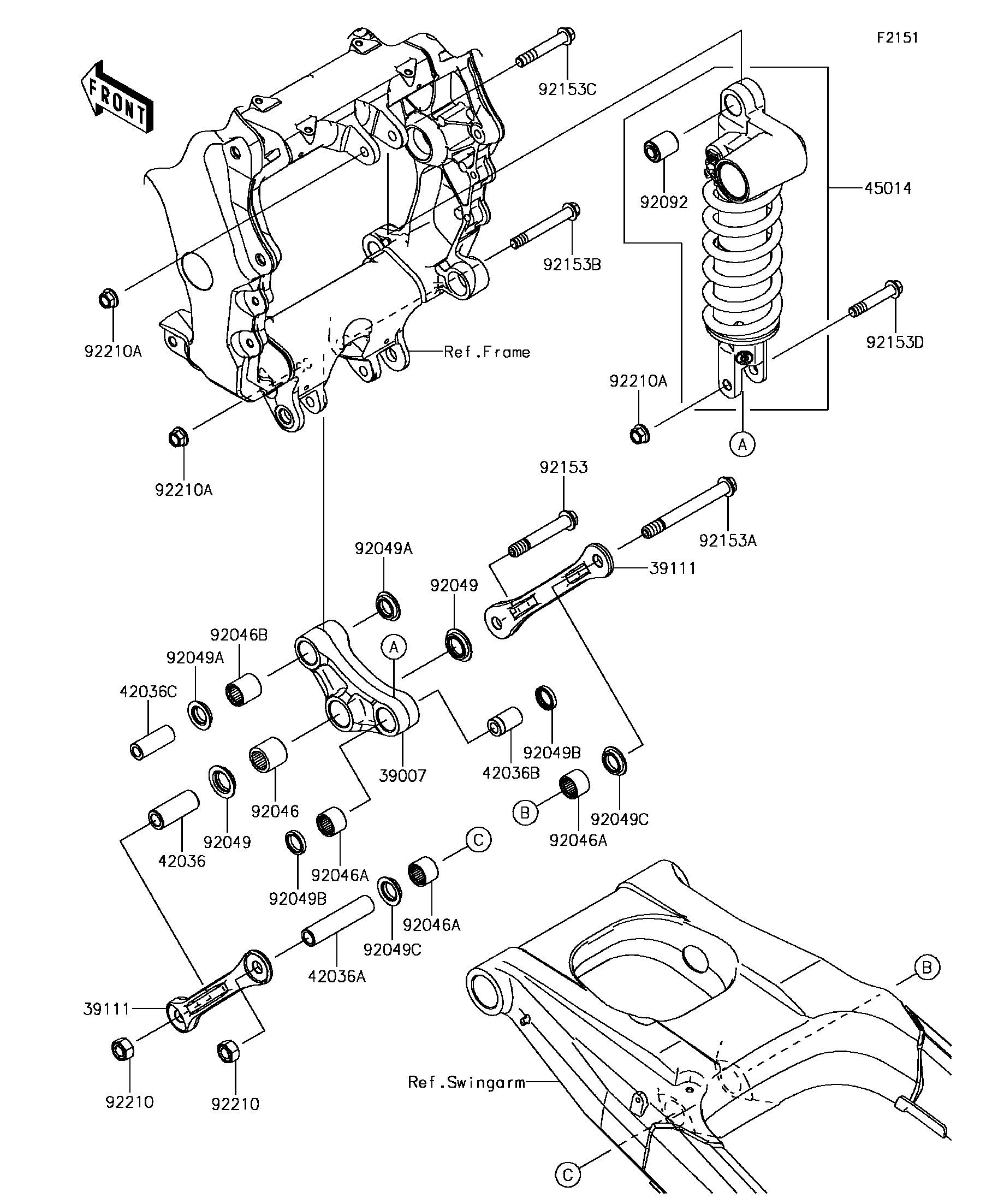

2016 Ninja ZX-14R ABS - Suspension/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
39007
39111
39111
42036
42036A
42036B
42036C
45014
92046
92046A
92046A
92046A
92046B
92049
92049
92049A
92049A
92049B
92049B
92049C
92049C
92092
92153
92153A
92153B
92153C
92153D
92210
92210
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-0061 1
ROD-TIE,SUSPENSION 39111 39111-0025 2
SLEEVE,12.1X20X50 42036 42036-1111 1
SLEEVE,12.1X18X82 42036A 42036-1231 1
SLEEVE,10.1X18X30 42036B 42036-1258 1
SLEEVE,10.1X17X44.5 42036C 42036-1342 1
SHOCKABSORBER,SILVER+BLK 45014 45014-0518-23I 1
BEARING-NEEDLE,7E-HVS20X27X25 92046 92046-1236 1
BEARING-NEEDLE,SFYZM182417 92046A 92046-1272 3
BEARING-NEEDLE,SFYZM172425 92046B 92046-1273 1
SEAL-OIL,ARM 92049 92049-1109 2
SEAL-OIL,MHA17245.7F 92049A 92049-1223 2
SEAL-OIL,MHA18244 92049B 92049-1225 2
SEAL-OIL,KCR MF018N1 92049C 92049-1493 2
BUSHING-RUBBER 92092 92092-0003 1
BOLT,FLANGED,12X75 92153 92153-1367 1
BOLT,FLANGED,12X110 92153A 92153-1368 1
BOLT,FLANGED,10X77 92153B 92153-1613 1
BOLT,FLANGED,10X62 92153C 92153-1614 1
BOLT,FLANGED,10X55 92153D 92153-1615 1
NUT,LOCK,12MM 92210 92210-0274 2
NUT,LOCK,FLANGED,10MM 92210A 92210-1139 3
