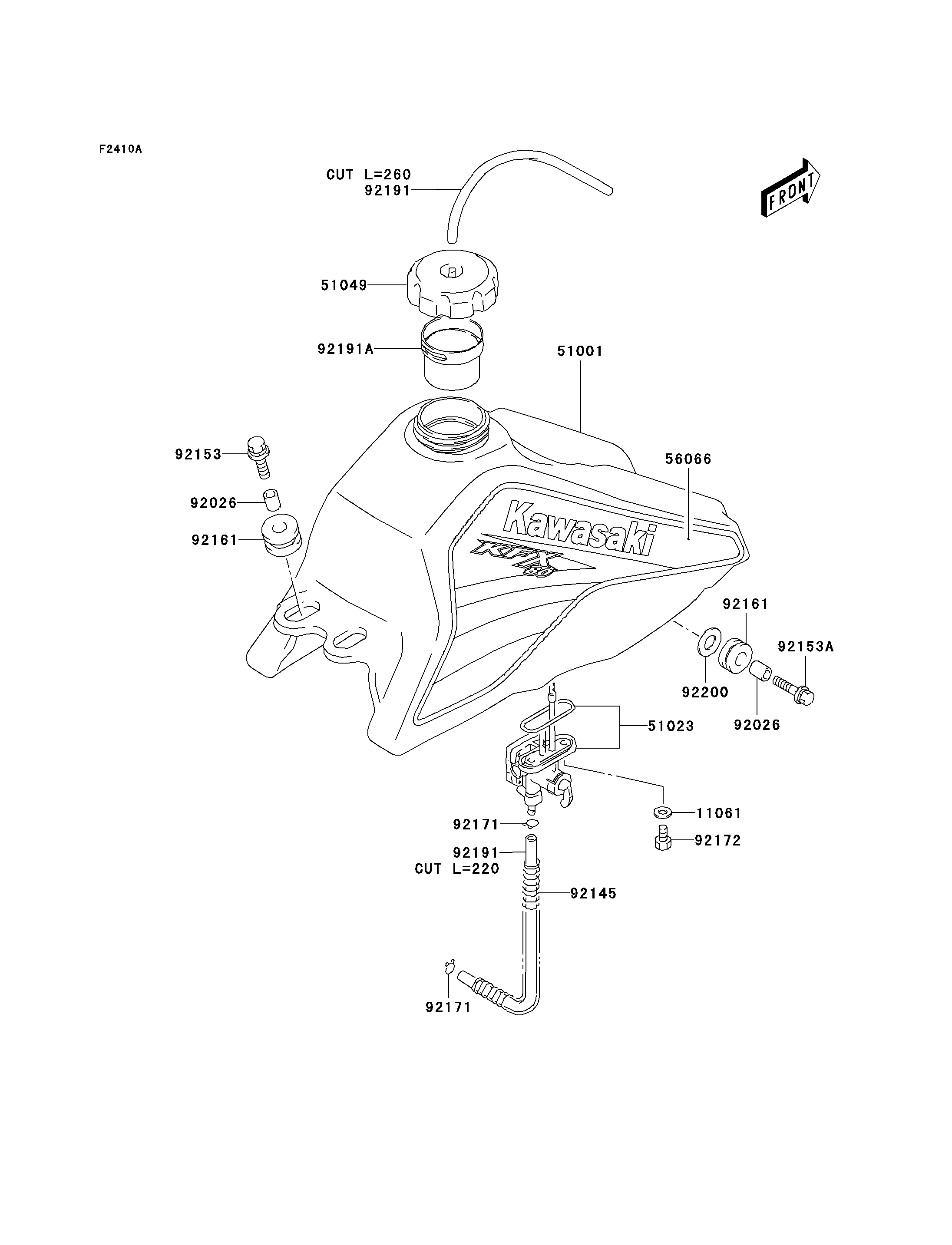

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11061
51001
51023
51049
56066
92026
92026
92145
92153
92153A
92161
92161
92171
92171
92172
92191
92191
92191A
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,6.4X11.5X0.8 | 11061 | 11061-S002 | 2 | ||
| TANK-COMP-FUEL,BLACK | 51001 | 51001-S006-504 | 1 | ||
| TAP-ASSY | 51023 | 51023-S006 | 1 | ||
| CAP-TANK | 51049 | 51049-S007 | 1 | ||
| PATTERN,SET,WHT/BLK/GLD/GRN | 56066 | 56066-S035-587 | 1 | ||
| SPACER,FOOTREST | 92026 | 92026-S057 | 4 | ||
| SPRING,FUEL HOSE | 92145 | 92145-S080 | 1 | ||
| BOLT,FUEL TANK | 92153 | 92153-S222 | 2 | ||
| BOLT,FUEL TANK | 92153A | 92153-S223 | 2 | ||
| DAMPER,FUEL TANK | 92161 | 92161-S076 | 4 | ||
| CLAMP,OIL HOSE | 92171 | 92171-S062 | 2 | ||
| SCREW,FUEL COCK | 92172 | 92172-S151 | 2 | ||
| TUBE,FUEL TANK BREATHER | 92191 | 92191-S028 | 2 | ||
| TUBE,FUEL TANK FILLER | 92191A | 92191-S029 | 1 | ||
| WASHER,FOOTREST | 92200 | 92200-S093 | 2 |
