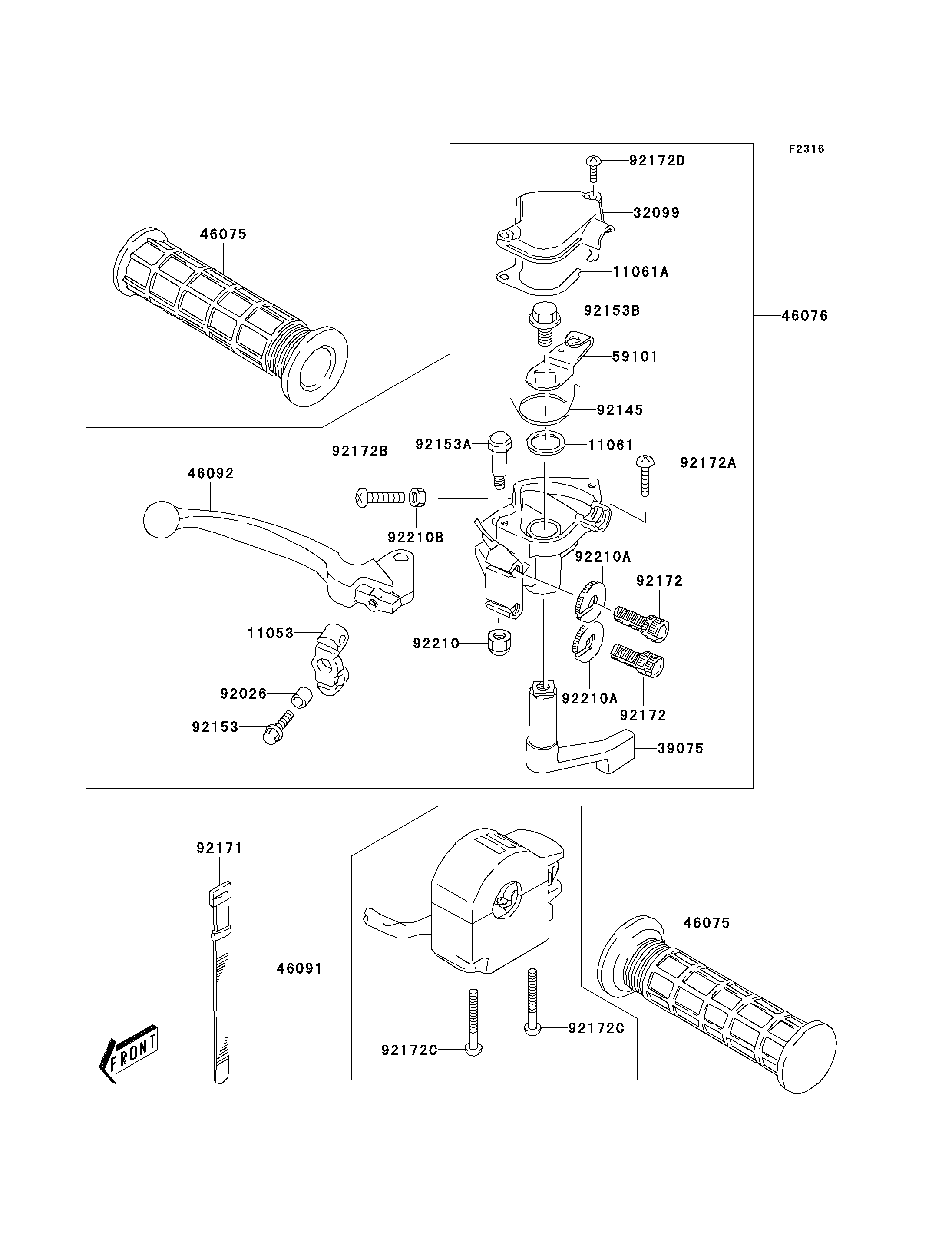

2003 KFX80 - Handle Lever

DOWNLOAD PDF
SELECT A NEW PART
11053
11061
11061A
32099
39075
46075
46075
46076
46091
46092
59101
92026
92145
92153
92153A
92153B
92171
92172
92172
92172A
92172B
92172C
92172C
92172D
92210
92210A
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BRAKE CABLE 11053 11053-S004 1
GASKET,14X20X1.5 11061 11061-S065 1
GASKET,THROTTLE CASE 11061A 11061-S066 1
CASE,THROTTLE 32099 32099-S009 1
LEVER-THROTTLE 39075 39075-S002 1
GRIP,HANDLE,BLACK 46075 46075-S005-504 2
LEVER-ASSY-GRIP,FRONT BRAKE 46076 46076-S011 1
HOUSING-ASSY-CONTROL 46091 46091-S004 1
LEVER-GRIP,FRONT BRAKE 46092 46092-S009 1
REEL,THROTTLE CABLE 59101 59101-S005 1
SPACER 92026 92026-S072 1
SPRING,THROTTLE LEVER 92145 92145-S081 1
BOLT 92153 92153-S012 1
BOLT 92153A 92153-S198 1
BOLT 92153B 92153-S226 1
CLAMP,L=120 92171 92171-S035 1
SCREW 92172 92172-S134 2
SCREW,PARKING BRAKE SWITCH 92172A 92172-S150 1
SCREW 92172B 92172-S155 1
SCREW 92172C 92172-S156 2
SCREW 92172D 92172-S157 2
NUT 92210 92210-S024 1
NUT,CABLE ADJUSTER LOCK 92210A 92210-S070 2
NUT 92210B 92210-S087 1
