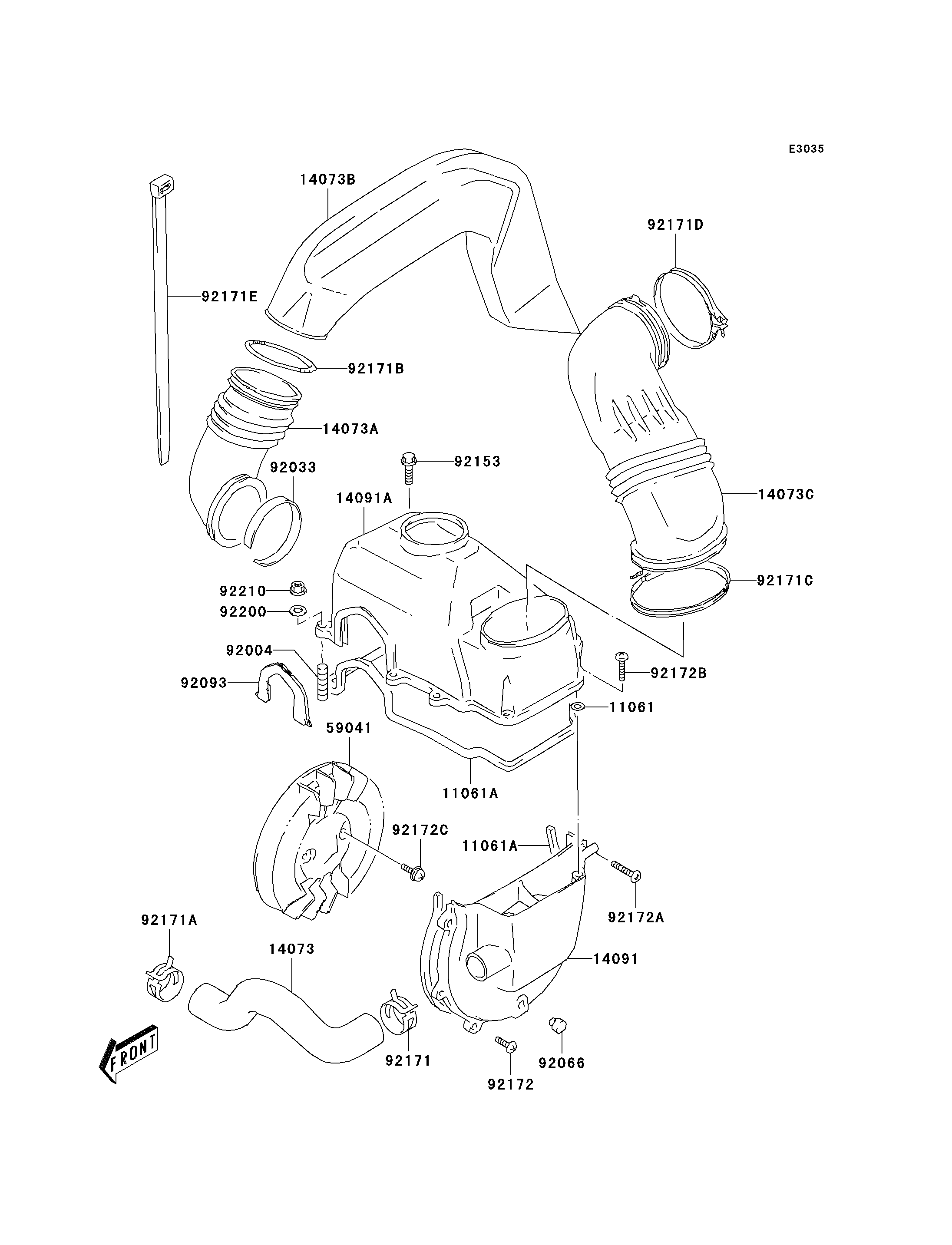

2003 KFX80 - Cooling

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061A
14073
14073A
14073B
14073C
14091
14091A
59041
92004
92033
92066
92093
92153
92171
92171A
92171B
92171C
92171D
92171E
92172
92172A
92172B
92172C
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,COOLING FAN COVER 11061 11061-S061 2
GASKET,COOLING FAN COVER 11061A 11061-S062 2
DUCT,BELT COOLING,OUT 14073 14073-S007 1
DUCT,COOLING,OUT 14073A 14073-S008 1
DUCT,COOLING,OUT 14073B 14073-S009 1
DUCT,COOLING,IN 14073C 14073-S010 1
COVER,COOLING FAN 14091 14091-S074 1
COVER,COOLING 14091A 14091-S075 1
FAN,COOLING 59041 59041-S001 1
STUD,COOLING COWLING 92004 92004-S009 1
RING-SNAP 92033 92033-S031 1
PLUG,DRAIN 92066 92066-S023 1
SEAL,COOLING COWLING 92093 92093-S019 1
BOLT 92153 92153-S012 5
CLAMP,BELT COOLING 92171 92171-S066 1
CLAMP,BELT COOLING 92171A 92171-S067 1
CLAMP 92171B 92171-S075 1
CLAMP 92171C 92171-S076 1
CLAMP 92171D 92171-S082 1
CLAMP 92171E 92171-S084 2
SCREW 92172 92172-S055 5
SCREW,COOLING FAN COVER 92172A 92172-S142 1
SCREW,COOLING COWLING 92172B 92172-S143 2
SCREW 92172C 92172-S162 2
WASHER 92200 92200-S003 1
NUT 92210 92210-S066 1
