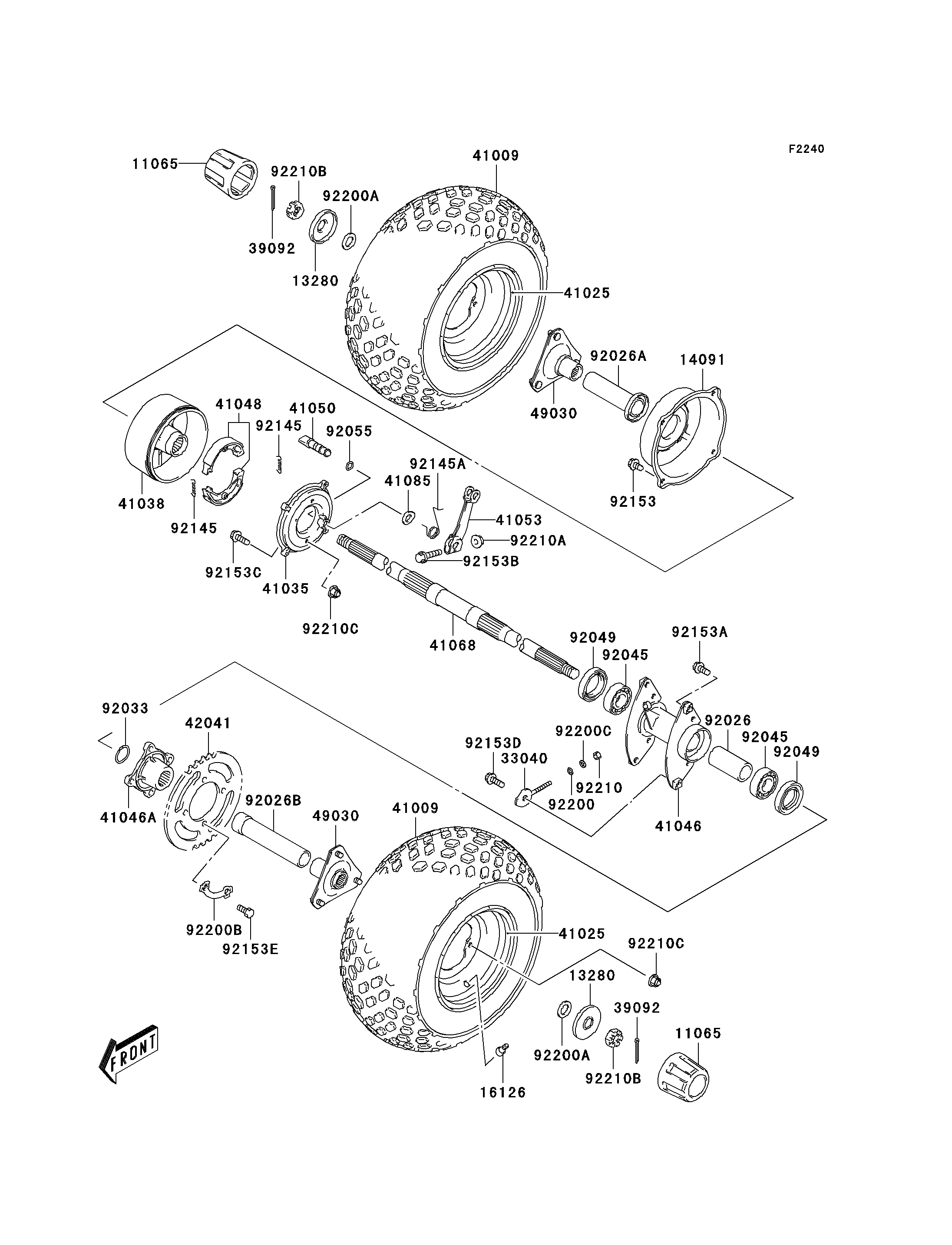

2006 KFX50 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065
11065
13280
13280
13280
13280
14091
14091
16126
16126
33040
33040
39092
39092
39092
39092
41009
41009
41009
41009
41025
41025
41025
41025
41035
41035
41038
41038
41046
41046
41046A
41046A
41048
41048
41050
41050
41053
41053
41068
41068
41085
41085
42041
42041
49030
49030
49030
49030
92026
92026
92026A
92026A
92026B
92026B
92033
92033
92045
92045
92045
92045
92049
92049
92049
92049
92055
92055
92145
92145
92145
92145
92145A
92145A
92153
92153
92153A
92153A
92153B
92153B
92153C
92153C
92153D
92153D
92153E
92153E
92200
92200
92200A
92200A
92200A
92200A
92200B
92200B
92200C
92200C
92210
92210
92210A
92210A
92210B
92210B
92210B
92210B
92210C
92210C
92210C
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,WHEEL 11065 11065-S022 2
HOLDER,CENTER CAP 13280 13280-S017 2
COVER,REAR BRAKE DRUM 14091 14091-S071 1
VALVE,WHEEL RIM,TR412 16126 16126-S002 2
ADJUSTER-CHAIN 33040 33040-S002 2
PIN-HAIR,REAR AXLE 39092 39092-S008 2
TIRE 41009 41009-S009 2
RIM,REAR WHEEL,B.SILVER 41025 41025-S006-530 2
PANEL-ASSY-BRAKE 41035 41035-S003 1
DRUM,REAR BRAKE 41038 41038-S001 1
HOUSING-BEARING 41046 41046-S001 1
HOUSING-BEARING,REAR SPROCKET 41046A 41046-S002 1
SHOE-BRAKE 41048 41048-S005 1
CAM-BRAKE 41050 41050-S005 1
LEVER-BRAKE CAM 41053 41053-S011 1
AXLE,RR 41068 41068-S007 1
INDICATOR 41085 41085-S002 1
SPROCKET-HUB,RR,37T 42041 42041-S004 1
HUB,RR 49030 49030-S001 2
SPACER,REAR AXLE 92026 92026-S064 1
SPACER,AXLE,RH 92026A 92026-S065 1
SPACER,AXLE,LH 92026B 92026-S066 1
RING-SNAP,STOPPER 92033 92033-S030 1
BEARING-BALL,RR AXLE 92045 92045-S038 2
SEAL-OIL,REAR AXLE 92049 92049-S033 2
RING-O,BRAKE CAM 92055 92055-S041 1
SPRING,REAR BRAKE SHOE 92145 92145-S047 2
SPRING,REAR BRAKE CAM 92145A 92145-S068 1
BOLT 92153 92153-S143 4
BOLT,MUFFLER 92153A 92153-S194 2
BOLT,BRAKE CAM LEVER 92153B 92153-S205 1
BOLT 92153C 92153-S206 2
BOLT,CHAIN ADJUSTER 92153D 92153-S207 2
BOLT,REAR SPROCKET 92153E 92153-S208 4
WASHER 92200 92200-S003 2
WASHER,REAR AXLE 92200A 92200-S100 2
WASHER,SPROCKET 92200B 92200-S101 2
WASHER 92200C 92200-S102 2
NUT 92210 92210-S001 2
NUT 92210A 92210-S004 1
NUT,REAR AXLE 92210B 92210-S076 2
NUT 92210C 92210-S094 8
