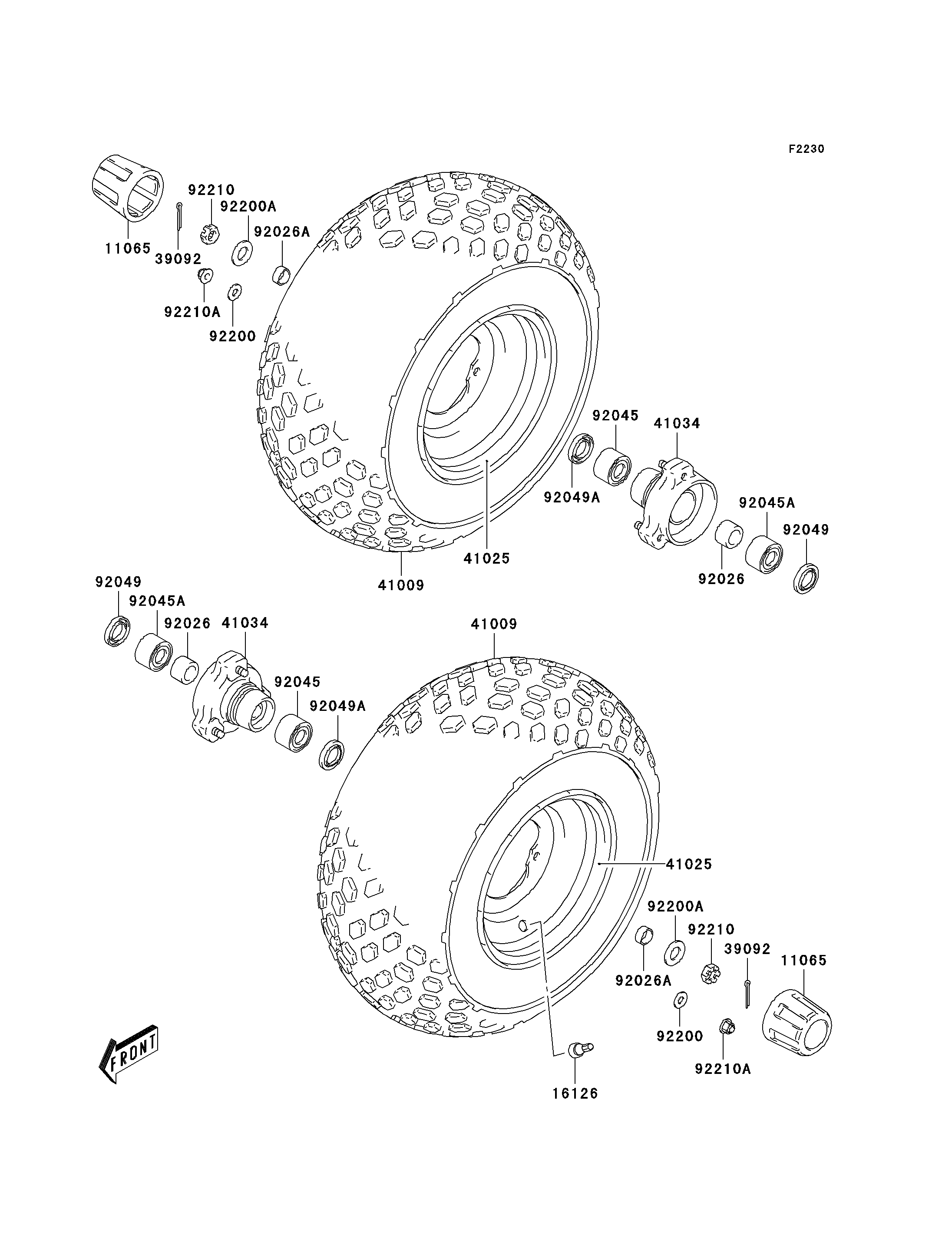

11065
11065
16126
39092
39092
41009
41009
41025
41025
41034
41034
92026
92026
92026A
92026A
92045
92045
92045A
92045A
92049
92049
92049A
92049A
92200
92200
92200A
92200A
92210
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,WHEEL | 11065 | 11065-S022 | 2 | ||
| VALVE,WHEEL RIM,TR412 | 16126 | 16126-S002 | 2 | ||
| PIN-HAIR | 39092 | 39092-S007 | 2 | ||
| TIRE | 41009 | 41009-S009 | 2 | ||
| RIM,FRONT WHEEL,B.SILVER | 41025 | 41025-S005-530 | 2 | ||
| DRUM-ASSY,FR | 41034 | 41034-S003 | 2 | ||
| SPACER,FRONT HUB BEARING | 92026 | 92026-S061 | 2 | ||
| SPACER,FRONT AXLE | 92026A | 92026-S062 | 2 | ||
| BEARING-BALL,FRONT HUB | 92045 | 92045-S036 | 2 | ||
| BEARING-BALL,FRONT HUB | 92045A | 92045-S037 | 2 | ||
| SEAL-OIL,22X40X6 | 92049 | 92049-S032 | 2 | ||
| SEAL-OIL,FRONT HUB BRG | 92049A | 92049-S063 | 2 | ||
| WASHER,WHEEL NUT | 92200 | 92200-S098 | 6 | ||
| WASHER,FRONT AXLE | 92200A | 92200-S099 | 2 | ||
| NUT,FRONT AXLE | 92210 | 92210-S075 | 2 | ||
| NUT | 92210A | 92210-S094 | 6 |
