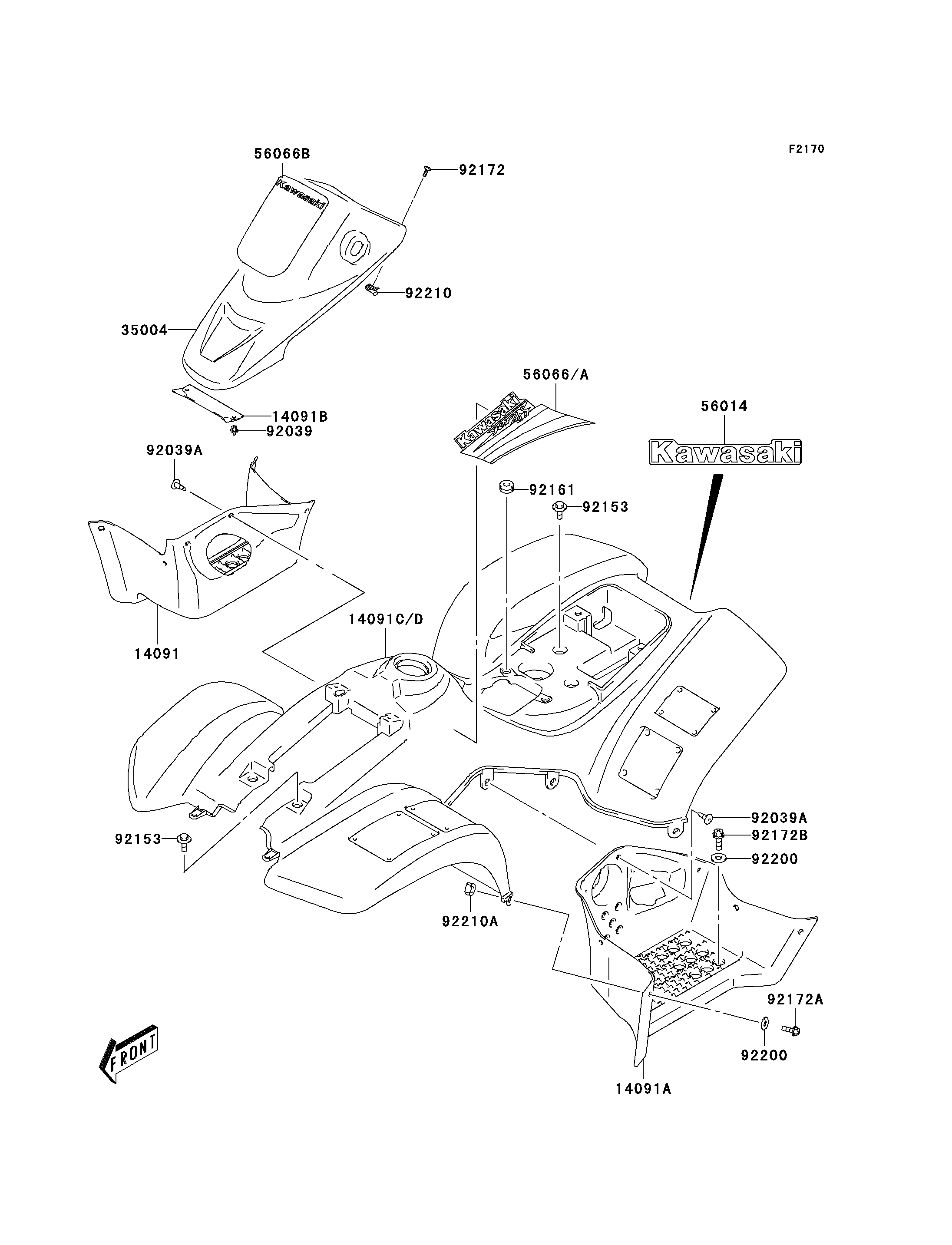

2006 KFX50 - Fenders

DOWNLOAD PDF
SELECT A NEW PART
14091
14091A
14091B
35004
56014
56066
56066A
56066B
92039
92039A
92039A
92153
92153
92161
92172
92172A
92172B
92200
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FRAME,RH,BLACK 14091 14091-S067-504 1
COVER,FRAME,LH,BLACK 14091A 14091-S068-504 1
COVER,FRONT FENDER,BLACK 14091B 14091-S070-504 1
FENDER-FRONT,BLACK 35004 35004-S007-504 1
EMBLEM,BLACK/GREEN 56014 56014-S012-554 1
PATTERN,WHITE/BLACK 56066 56066-S003-558 1
PATTERN,RH,WHT/BLK/GLD/GRN 56066A 56066-S033-587 1
PATTERN,LH,WHT/BLK/GLD/GRN 56066B 56066-S034-587 1
RIVET,O.BLACK 92039 92039-S003-505 2
RIVET,BLACK 92039A 92039-S005-506 10
BOLT 92153 92153-S196 3
DAMPER,FRAME COVER 92161 92161-S069 2
SCREW 92172 92172-S018 2
SCREW 92172A 92172-S019 4
SCREW 92172B 92172-S022 4
WASHER,6.5X16X1.2 92200 92200-S005 12
NUT,COWL 92210 92210-S023 2
NUT 92210A 92210-S054 4
COVER,FRAME CENTER,L.GREEN 14091C 14091-S159-535 1 US
COVER,FRAME CENTER,L.GREEN 14091D 14091-S160-535 1 CN
