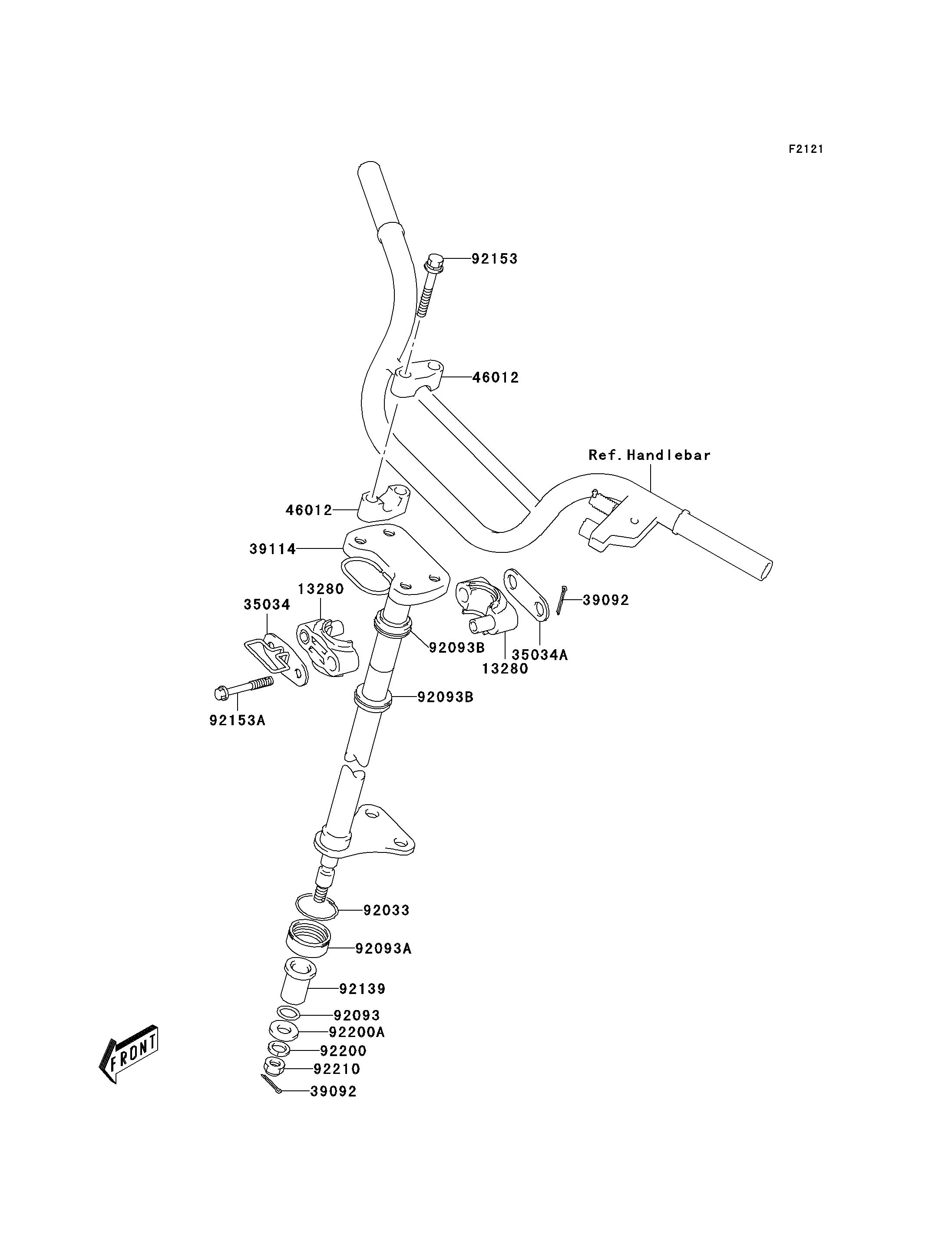

Parts Diagrams |
13280
13280
35034
35034A
39092
39092
39114
46012
46012
92033
92093
92093A
92093B
92093B
92139
92153
92153A
92200
92200A
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,STEERING SHAFT | 13280 | 13280-S016 | 2 | ||
| REINFORCE,STEERING HOLDER | 35034 | 35034-S001 | 1 | ||
| REINFORCE,STEERING HOLDER | 35034A | 35034-S002 | 1 | ||
| PIN-HAIR,COTTER | 39092 | 39092-S005 | 3 | ||
| SHAFT-COMP-STRG | 39114 | 39114-S001 | 1 | ||
| HOLDER-HANDLE | 46012 | 46012-S002 | 4 | ||
| RING-SNAP,STEERING SHAFT | 92033 | 92033-S029 | 1 | ||
| SEAL | 92093 | 92093-S008 | 1 | ||
| SEAL,STEERING SHAFT DUST | 92093A | 92093-S016 | 1 | ||
| SEAL,STEERING SHAFT | 92093B | 92093-S020 | 2 | ||
| BUSHING,STEERING SHAFT | 92139 | 92139-S011 | 1 | ||
| BOLT,HANDLE CLAMP | 92153 | 92153-S199 | 4 | ||
| BOLT,STEERING SHAFT HOLDER | 92153A | 92153-S200 | 2 | ||
| WASHER,STEERING SHAFT,LWR | 92200 | 92200-S096 | 1 | ||
| WASHER,10.5X25X3.2 | 92200A | 92200-S280 | 1 | ||
| NUT,STEERING SHAFT | 92210 | 92210-S071 | 1 |
| HOLDER,STEERING SHAFT | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| REINFORCE,STEERING HOLDER | |
| REF # | 35034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REINFORCE,STEERING HOLDER | |
| REF # | 35034A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-HAIR,COTTER | |
| REF # | 39092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SHAFT-COMP-STRG | |
| REF # | 39114 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-HANDLE | |
| REF # | 46012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,STEERING SHAFT | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,STEERING SHAFT DUST | |
| REF # | 92093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,STEERING SHAFT | |
| REF # | 92093B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,STEERING SHAFT | |
| REF # | 92139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HANDLE CLAMP | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,STEERING SHAFT HOLDER | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,STEERING SHAFT,LWR | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X25X3.2 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,STEERING SHAFT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
