Parts Diagrams |
11061
11065
13078
13168
13236
49080
49088
59101
59106
92033
92145
92145A
92145B
92153
92153A
92153B
92172
92200
92210

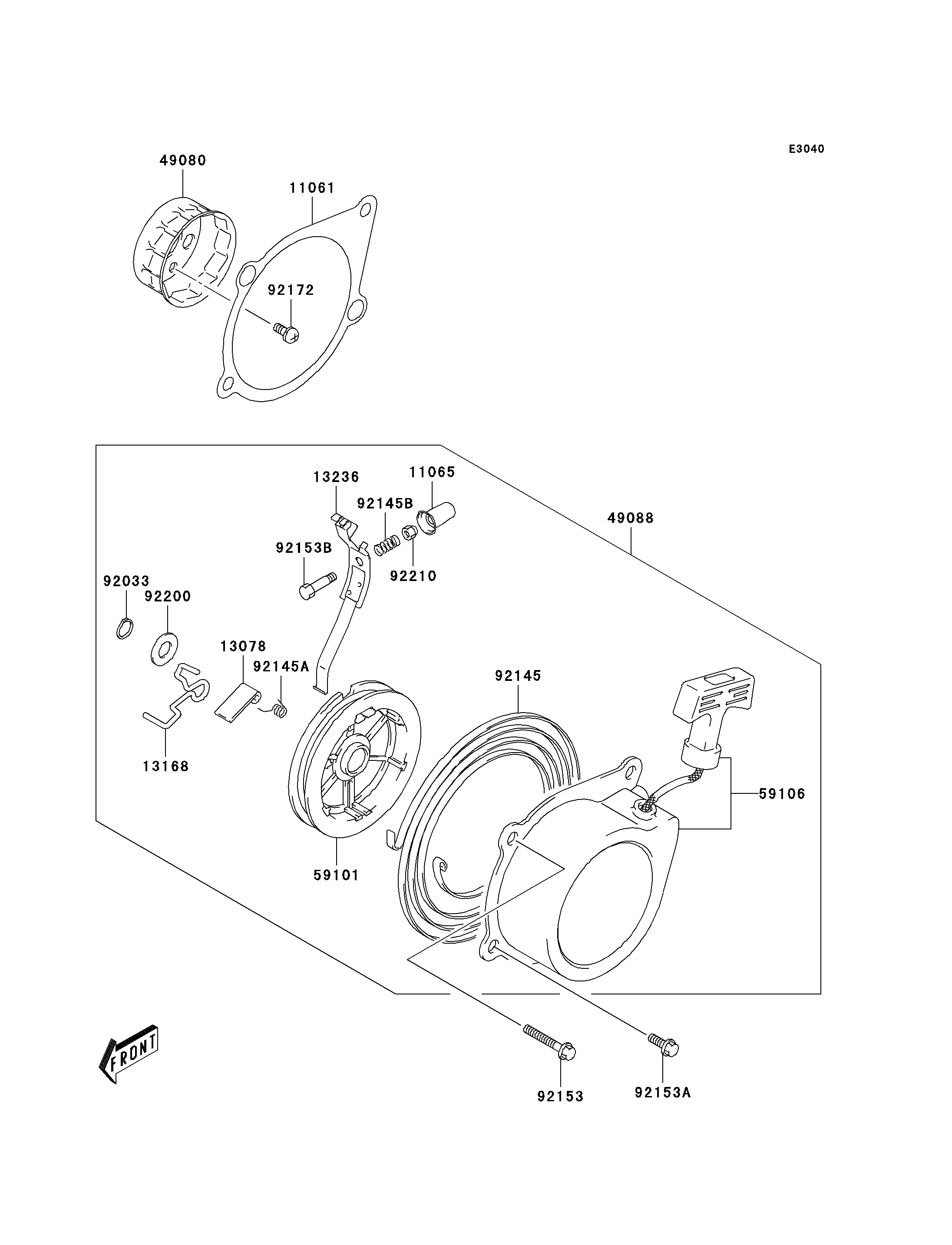

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RECOIL STARTER | 11061 | 11061-S050 | 1 | ||
| CAP | 11065 | 11065-S023 | 1 | ||
| RATCHET | 13078 | 13078-S002 | 1 | ||
| LEVER | 13168 | 13168-S003 | 1 | ||
| LEVER-COMP | 13236 | 13236-S003 | 1 | ||
| PULLEY-STARTING | 49080 | 49080-S001 | 1 | ||
| STARTER-RECOIL | 49088 | 49088-S004 | 1 | ||
| REEL | 59101 | 59101-S003 | 1 | ||
| ROPE | 59106 | 59106-S001 | 1 | ||
| RING-SNAP | 92033 | 92033-S001 | 1 | ||
| SPRING | 92145 | 92145-S069 | 1 | ||
| SPRING,RETURN | 92145A | 92145-S070 | 1 | ||
| SPRING | 92145B | 92145-S071 | 1 | ||
| BOLT | 92153 | 92153-S006 | 1 | ||
| BOLT,RECOIL STARTER | 92153A | 92153-S193 | 3 | ||
| BOLT | 92153B | 92153-S209 | 1 | ||
| SCREW,STARTER | 92172 | 92172-S128 | 3 | ||
| WASHER | 92200 | 92200-S103 | 1 | ||
| NUT | 92210 | 92210-S077 | 1 |
| GASKET,RECOIL STARTER | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET | |
| REF # | 13078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER | |
| REF # | 13168 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PULLEY-STARTING | |
| REF # | 49080 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STARTER-RECOIL | |
| REF # | 49088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REEL | |
| REF # | 59101 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROPE | |
| REF # | 59106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,RETURN | |
| REF # | 92145A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92145B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,RECOIL STARTER | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,STARTER | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
