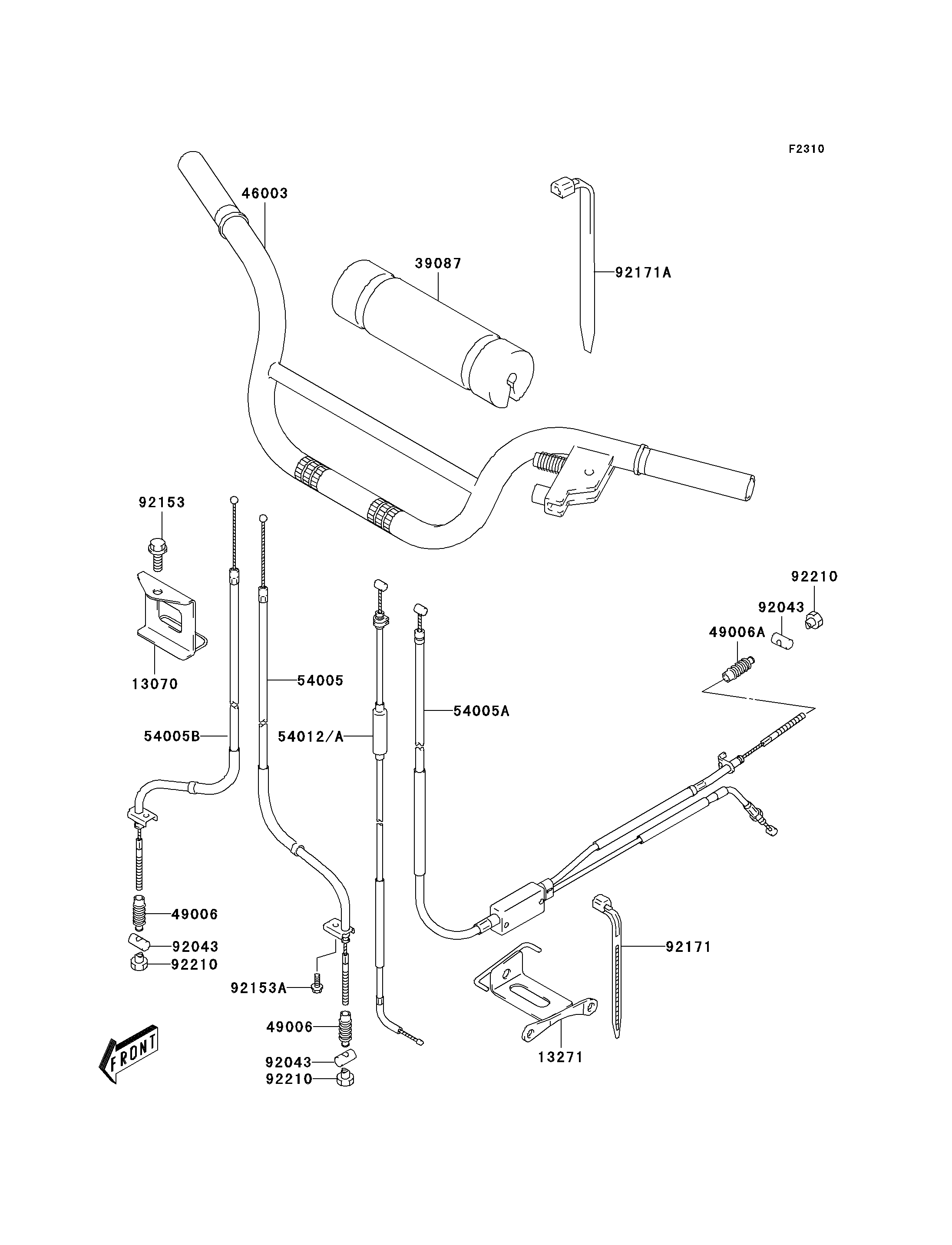

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13070
13271
39087
46003
49006
49006
49006A
54005
54005A
54005B
54012
92043
92043
92043
92153
92153A
92171
92171A
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE,FRONT BRAKE CABLE | 13070 | 13070-S009 | 1 | ||
| PLATE,REAR BRAKE CABLE | 13271 | 13271-S031 | 1 | ||
| PAD-HANDLE | 39087 | 39087-S001 | 1 | ||
| HANDLE,BLACK | 46003 | 46003-S004-504 | 1 | ||
| BOOT,FRONT BRAKE CABLE | 49006 | 49006-S012 | 2 | ||
| BOOT,REAR BRAKE CABLE | 49006A | 49006-S013 | 1 | ||
| CABLE-BRAKE,LH | 54005 | 54005-S005 | 1 | ||
| CABLE-BRAKE | 54005A | 54005-S006 | 1 | ||
| CABLE-BRAKE,FR | 54005B | 54005-S007 | 1 | ||
| CABLE-THROTTLE | 54012 | 54012-S005 | 1 | ||
| PIN | 92043 | 92043-S006 | 3 | ||
| BOLT | 92153 | 92153-S011 | 1 | ||
| BOLT,FRONT BRAKE CABLE | 92153A | 92153-S197 | 2 | ||
| CLAMP,L=125 | 92171 | 92171-S014 | 2 | ||
| CLAMP,CROSS BAR PAD | 92171A | 92171-S064 | 2 | ||
| NUT | 92210 | 92210-S014 | 3 |
