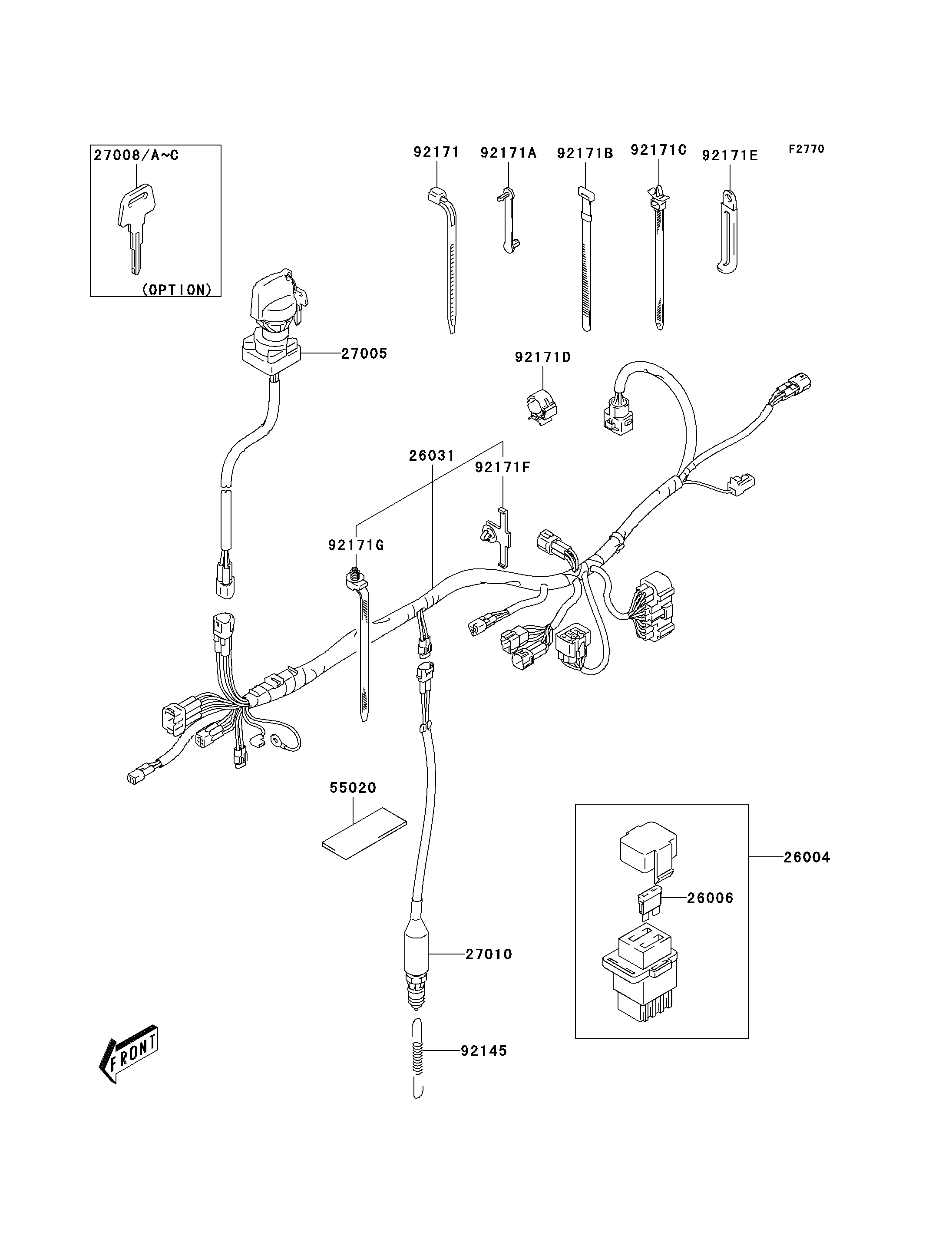

2006 KFX400 - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
26004
26006
26031
27005
27008
27008A
27008B
27008C
27010
55020
92145
92171
92171A
92171B
92171C
92171D
92171E
92171F
92171G
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FUSE-ASSY 26004 26004-S003 1
FUSE,10A 26006 26006-S007 1
HARNESS 26031 26031-S014 1
SWITCH-ASSY-IGNITION 27005 27005-S012 1
KEY-LOCK,BLANK,(TYPE:C) 27008 27008-S002 1 (OPTION)
KEY-LOCK,BLANK,(TYPE:D) 27008A 27008-S003 1 (OPTION)
KEY-LOCK,BLANK(TYPE:E) 27008B 27008-S006 1 (OPTION)
KEY-LOCK,BLANK(TYPE:F) 27008C 27008-S007 1 (OPTION)
SWITCH,STOP LAMP 27010 27010-S026 1
GUARD,WIRING HARNESS 55020 55020-S045 1
SPRING,STOP LAMP SWITCH 92145 92145-S150 1
CLAMP,L=125 92171 92171-S014 1
CLAMP,L=33 92171A 92171-S034 3
CLAMP,L=120 92171B 92171-S035 2
CLAMP,L=90 92171C 92171-S051 1
CLAMP,WIRING HARNESS 92171D 92171-S095 1
CLAMP,L=135 92171E 92171-S096 1
CLAMP 92171F 92171-S134 1
CLAMP 92171G 92171-S135 1
