Parts Diagrams |

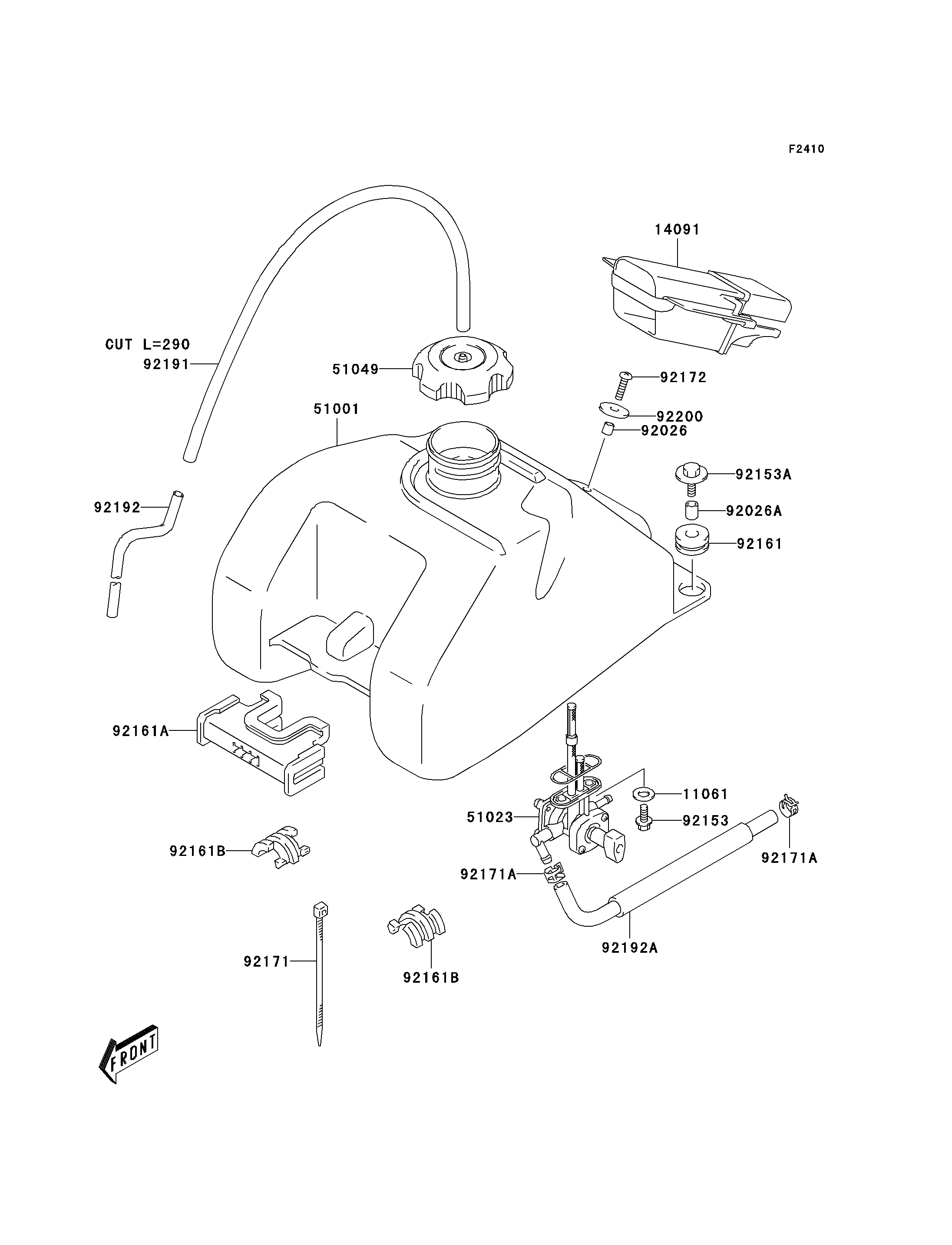

11061
14091
51001
51023
51049
92026
92026A
92153
92153A
92161
92161A
92161B
92161B
92171
92171A
92171A
92172
92191
92192
92192A
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,6.4X11.5X0.8 | 11061 | 11061-S002 | 2 | ||
| COVER | 14091 | 14091-S085 | 1 | ||
| TANK-COMP-FUEL | 51001 | 51001-S008 | 1 | ||
| TAP-ASSY | 51023 | 51023-S013 | 1 | ||
| CAP-TANK | 51049 | 51049-S004 | 1 | ||
| SPACER,6.5X10X9.4 | 92026 | 92026-S018 | 1 | ||
| SPACER | 92026A | 92026-S086 | 2 | ||
| BOLT | 92153 | 92153-S001 | 2 | ||
| BOLT,FUEL TANK | 92153A | 92153-S287 | 2 | ||
| DAMPER,FUEL TANK,RR | 92161 | 92161-S099 | 2 | ||
| DAMPER,FUEL TANK,FR | 92161A | 92161-S100 | 1 | ||
| DAMPER,FUEL TANK | 92161B | 92161-S101 | 2 | ||
| CLAMP,L=145 | 92171 | 92171-S015 | 2 | ||
| CLAMP | 92171A | 92171-S026 | 2 | ||
| SCREW | 92172 | 92172-S019 | 1 | ||
| TUBE,FUEL TANK BREATHER | 92191 | 92191-S028 | 1 | ||
| TUBE,FUEL TANK | 92192 | 92192-S038 | 1 | ||
| TUBE,FUEL | 92192A | 92192-S042 | 1 | ||
| WASHER,SEAT HOOK | 92200 | 92200-S133 | 1 |
| GASKET,6.4X11.5X0.8 | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL | |
| REF # | 51001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAP-ASSY | |
| REF # | 51023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-TANK | |
| REF # | 51049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,6.5X10X9.4 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FUEL TANK | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK,RR | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK,FR | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,L=145 | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,FUEL TANK BREATHER | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,FUEL TANK | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,FUEL | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,SEAT HOOK | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
