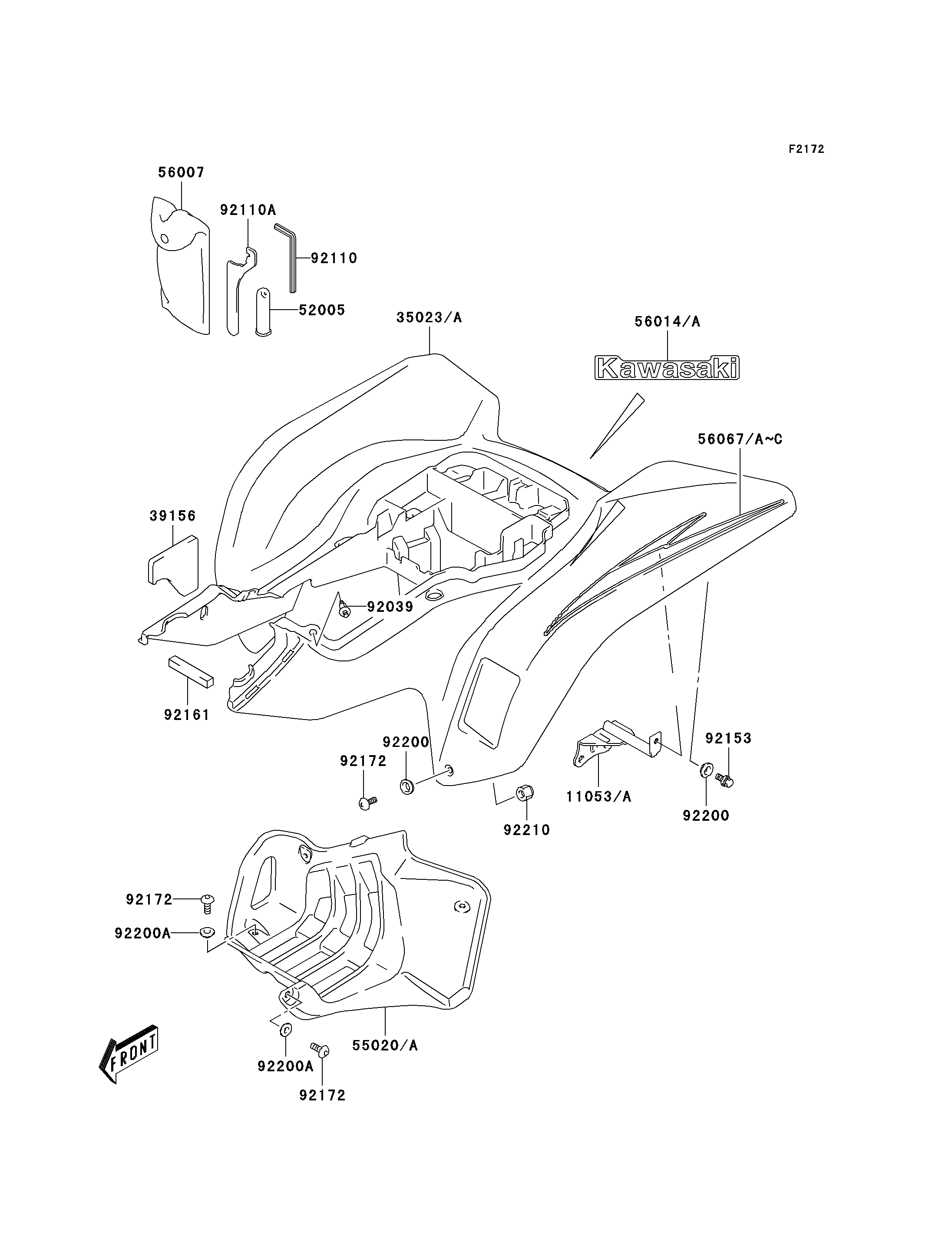

2006 KFX400 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
11053A
35023
35023A
39156
52005
55020
55020A
56007
56014
56014A
56067
56067A
56067B
56067C
92039
92110
92110A
92153
92161
92172
92172
92172
92200
92200
92200A
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RH 11053 11053-S083 1
BRACKET,LH 11053A 11053-S084 1
FENDER-REAR,B.ORANGE 35023 35023-S020-268 1
FENDER-REAR,L.GREEN 35023A 35023-S020-908 1
PAD,REAR FENDER 39156 39156-S002 1
GAUGE,AIR 52005 52005-S005 1
GUARD,FOOTREST,RH,BLACK 55020 55020-S020-506 1
GUARD,FOOTREST,LH,BLACK 55020A 55020-S021-506 1
TOOL-KIT 56007 56007-S005 1
EMBLEM,BLACK/ORANGE 56014 56014-S016-576 1
EMBLEM,KAWASAKI,BLACK/GREEN 56014A 56014-S016-913 1
PATTERN,RR FENDER,RH 56067 56067-S007-904 1
PATTERN,RR FENDER,RH 56067A 56067-S007-921 1
PATTERN,RR FENDER,LH 56067B 56067-S008-904 1
PATTERN,RR FENDER,LH 56067C 56067-S008-921 1
RIVET 92039 92039-S010 2
TOOL-WRENCH 92110 92110-S002 1
TOOL-WRENCH 92110A 92110-S003 1
BOLT 92153 92153-S465 2
DAMPER 92161 92161-S218 1
SCREW,PIPE COVER 92172 92172-S173 10
WASHER 92200 92200-S074 4
WASHER,FOOTREST GUARD 92200A 92200-S147 8
NUT 92210 92210-S054 2
