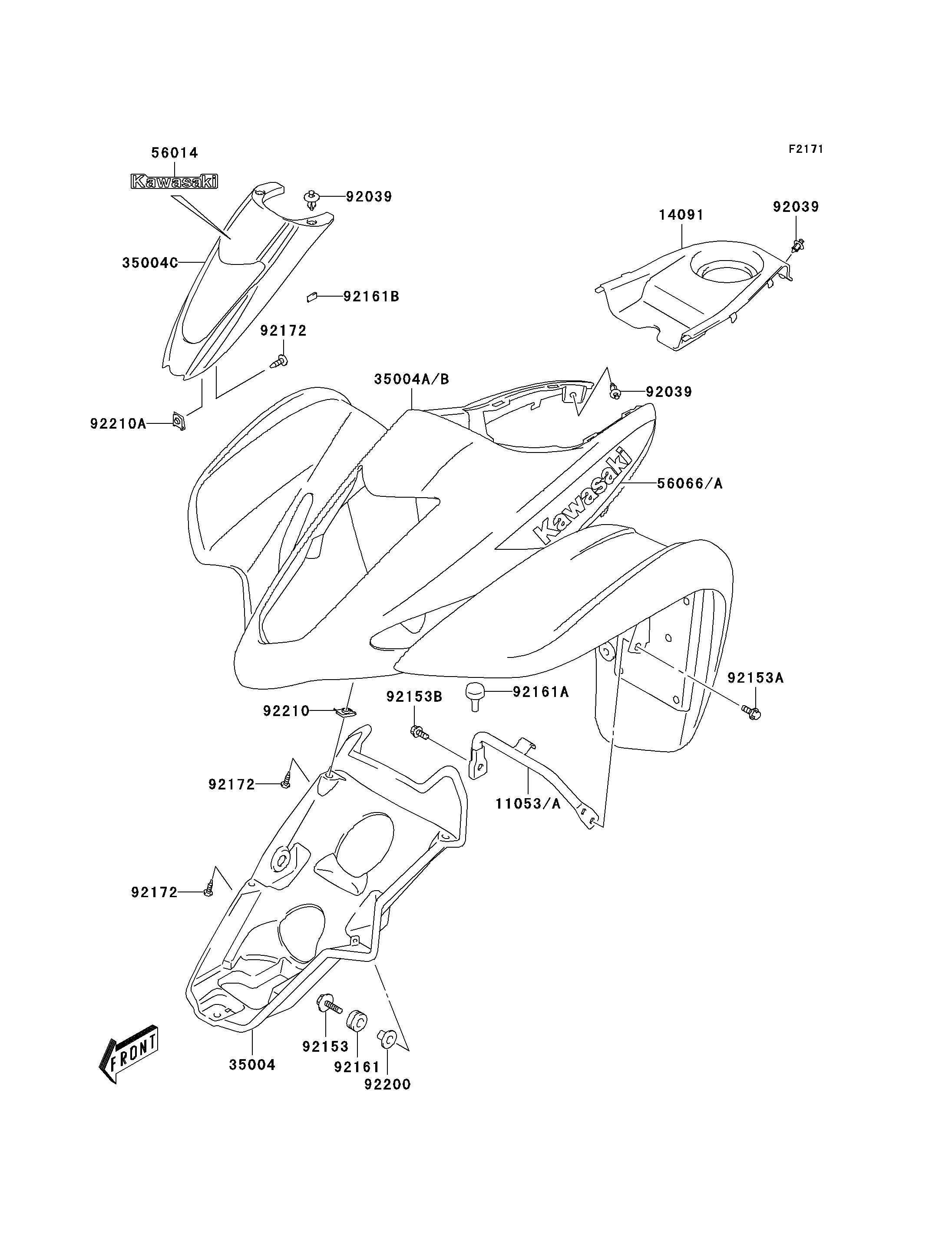

Parts Diagrams |
11053
11053A
14091
35004
35004A
35004B
35004C
56014
56066
56066A
92039
92039
92039
92153
92153A
92153B
92161
92161A
92161B
92172
92172
92172
92200
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,FRONT FENDER,RH | 11053 | 11053-S011 | 1 | ||
BRACKET,FRONT FENDER,LH | 11053A | 11053-S012 | 1 | ||
COVER,BLACK | 14091 | 14091-S182-503 | 1 | ||
FENDER-FRONT | 35004 | 35004-S020 | 1 | ||
FENDER-FRONT,B.ORANGE | 35004A | 35004-S021-268 | 1 | ||
FENDER-FRONT,L.GREEN | 35004B | 35004-S021-908 | 1 | ||
FENDER-FRONT,COVER,BLACK | 35004C | 35004-S022-503 | 1 | ||
EMBLEM,KAWASAKI,WHITE/BLACK | 56014 | 56014-S024-559 | 1 | ||
PATTERN,FR FENDER,RH,BLK/WHT | 56066 | 56066-S007-920 | 1 | ||
PATTERN,FR FENDER,LH,BLK/WHT | 56066A | 56066-S009-920 | 1 | ||
RIVET | 92039 | 92039-S010 | 8 | ||
BOLT | 92153 | 92153-S067 | 2 | ||
BOLT | 92153A | 92153-S439 | 2 | ||
BOLT | 92153B | 92153-S473 | 2 | ||
DAMPER | 92161 | 92161-S030 | 2 | ||
DAMPER,FRONT FENDER BRACKET | 92161A | 92161-S091 | 2 | ||
DAMPER | 92161B | 92161-S219 | 6 | ||
SCREW | 92172 | 92172-S031 | 7 | ||
WASHER,FRONT FENDER | 92200 | 92200-S148 | 2 | ||
NUT | 92210 | 92210-S012 | 2 | ||
NUT | 92210A | 92210-S143 | 2 |
