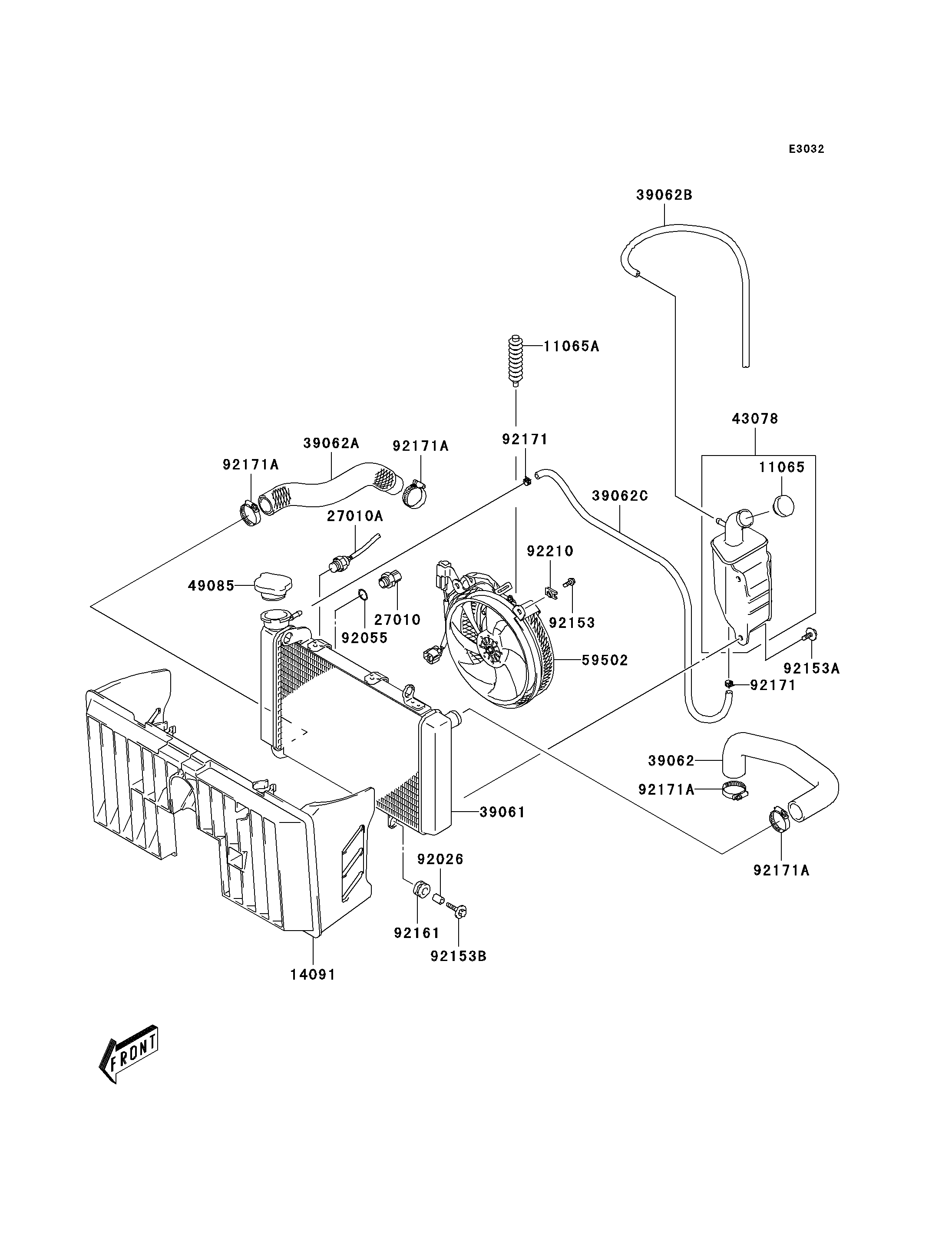

Parts Diagrams |
11065
11065A
14091
27010
27010A
39061
39062
39062A
39062B
39062C
43078
49085
59502
92026
92055
92153
92153A
92153B
92161
92171
92171
92171A
92171A
92171A
92171A
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,RESERVOIR TANK | 11065 | 11065-S036 | 1 | ||
| CAP | 11065A | 11065-S063 | 1 | ||
| COVER,RADIATOR | 14091 | 14091-S082 | 1 | ||
| SWITCH,FAN | 27010 | 27010-S023 | 1 | ||
| SWITCH,WATER TEMP | 27010A | 27010-S025 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-S009 | 1 | ||
| HOSE-COOLING | 39062 | 39062-S016 | 1 | ||
| HOSE-COOLING | 39062A | 39062-S017 | 1 | ||
| HOSE-COOLING | 39062B | 39062-S018 | 1 | ||
| HOSE-COOLING | 39062C | 39062-S019 | 1 | ||
| RESERVOIR | 43078 | 43078-S003 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-S002 | 1 | ||
| FAN-ASSY,RADIATOR | 59502 | 59502-S006 | 1 | ||
| SPACER | 92026 | 92026-S081 | 3 | ||
| RING-O | 92055 | 92055-S016 | 1 | ||
| BOLT | 92153 | 92153-S010 | 3 | ||
| BOLT,6X16 | 92153A | 92153-S050 | 2 | ||
| BOLT,OIL TANK | 92153B | 92153-S288 | 3 | ||
| DAMPER,OIL TANK | 92161 | 92161-S089 | 3 | ||
| CLAMP | 92171 | 92171-S002 | 2 | ||
| CLAMP,RADIATOR HOSE | 92171A | 92171-S088 | 4 | ||
| NUT | 92210 | 92210-S061 | 3 |
