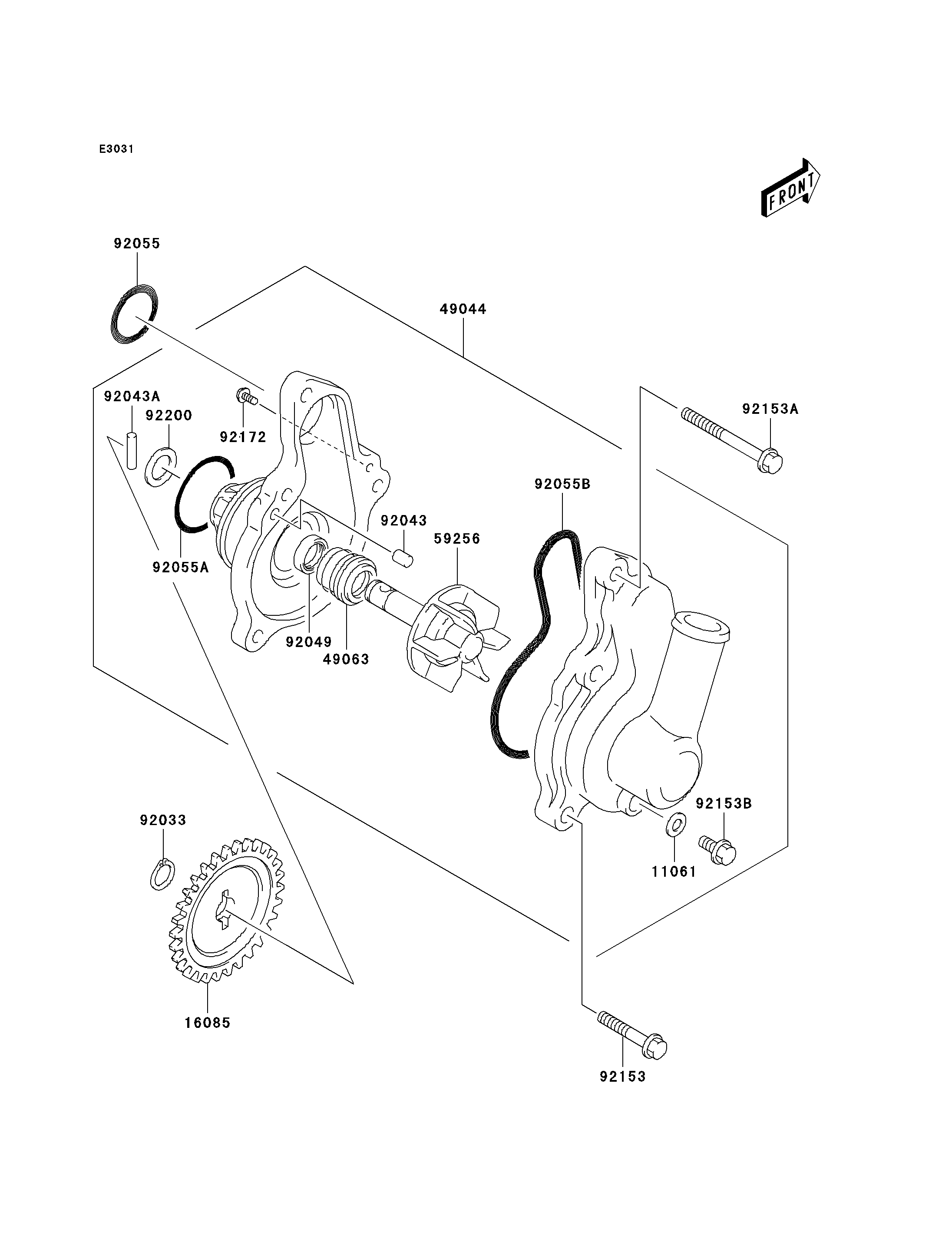

Parts Diagrams |
11061
16085
49044
49063
59256
92033
92043
92043A
92049
92055
92055A
92055B
92153
92153A
92153B
92172
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET | 11061 | 11061-S111 | 1 | ||
| GEAR,WATER PUMP | 16085 | 16085-S005 | 1 | ||
| PUMP-WATER | 49044 | 49044-S007 | 1 | ||
| SEAL-MECHANICAL,WATER PUMP | 49063 | 49063-S001 | 1 | ||
| IMPELLER | 59256 | 59256-S005 | 1 | ||
| RING-SNAP | 92033 | 92033-S001 | 1 | ||
| PIN | 92043 | 92043-S071 | 1 | ||
| PIN | 92043A | 92043-S072 | 1 | ||
| SEAL-OIL | 92049 | 92049-S071 | 1 | ||
| RING-O,D=2.4 | 92055 | 92055-S007 | 1 | ||
| RING-O | 92055A | 92055-S015 | 1 | ||
| RING-O | 92055B | 92055-S119 | 1 | ||
| BOLT,6X30 | 92153 | 92153-S261 | 3 | ||
| BOLT,CLUTCH COVER | 92153A | 92153-S262 | 1 | ||
| BOLT | 92153B | 92153-S468 | 1 | ||
| SCREW | 92172 | 92172-S283 | 1 | ||
| WASHER | 92200 | 92200-S275 | 1 |
| GASKET | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,WATER PUMP | |
| REF # | 16085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUMP-WATER | |
| REF # | 49044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-MECHANICAL,WATER PUMP | |
| REF # | 49063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| IMPELLER | |
| REF # | 59256 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,D=2.4 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X30 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH COVER | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
