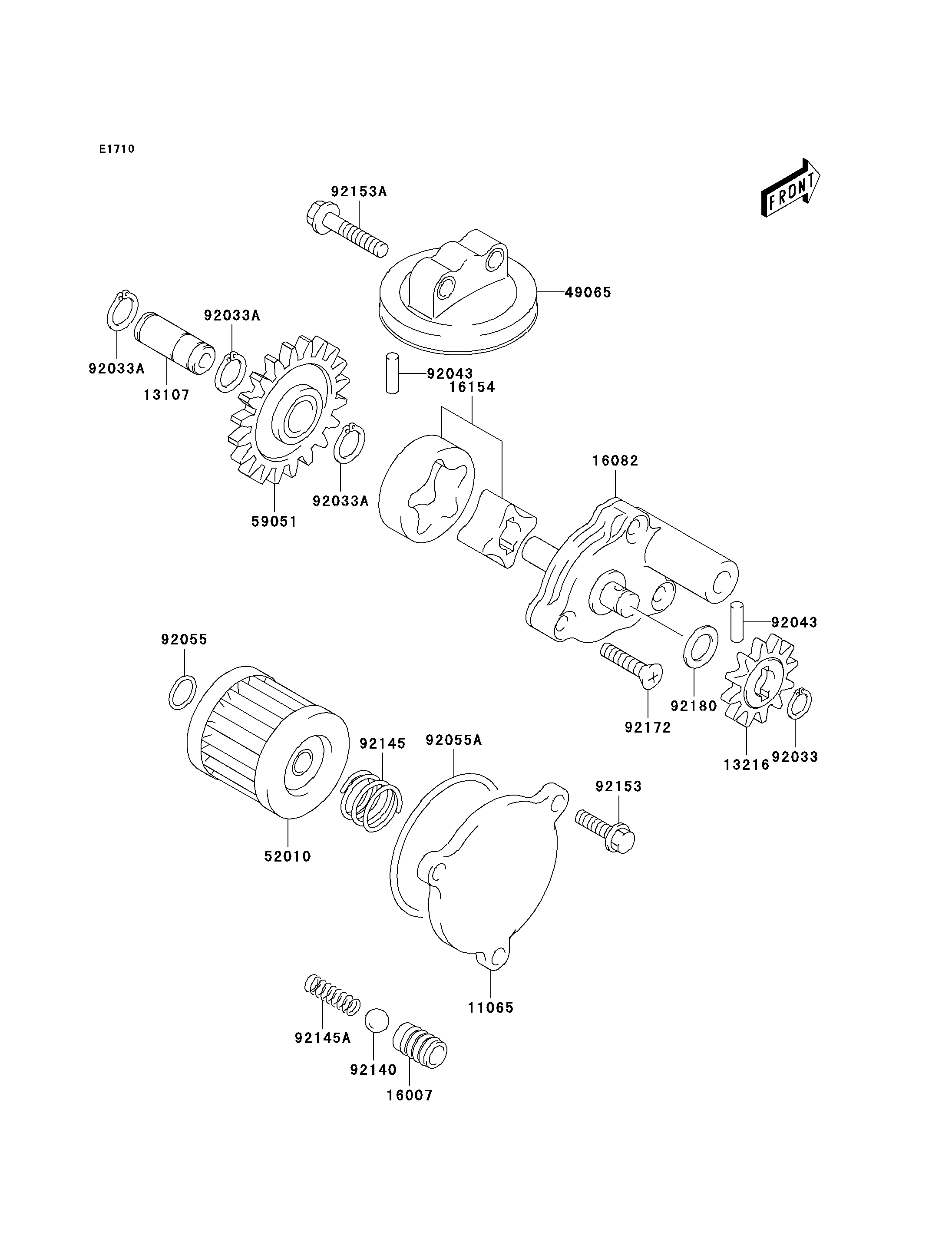

2006 KFX400 - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
11065
13107
13216
16007
16082
16154
49065
52010
59051
92033
92033A
92033A
92033A
92043
92043
92055
92055A
92140
92145
92145A
92153
92153A
92172
92180
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,OIL FILTER 11065 11065-S002 1
SHAFT,OIL PUMP IDLE GEAR 13107 13107-S004 1
GEAR-COMP,OIL PUMP 13216 13216-S012 1
SEAT-SPRING 16007 16007-S006 1
PUMP-ASSY-OIL 16082 16082-S004 1
ROTOR-PUMP 16154 16154-S001 1
FILTER-OIL 49065 49065-S004 1
ELEMENT-OIL FILTER 52010 52010-S004 1
GEAR-SPUR,OIL PUMP 59051 59051-S005 1
RING-SNAP 92033 92033-S001 1
RING-SNAP 92033A 92033-S023 3
PIN,4X15.8 92043 92043-S007 2
RING-O,D=1.9 92055 92055-S005 1
RING-O,D=2.4 92055A 92055-S010 1
BALL,OIL CHECK VALVE 92140 92140-S003 1
SPRING,OIL FILTER CAP 92145 92145-S004 1
SPRING,OIL CHECK VALVE 92145A 92145-S090 1
BOLT 92153 92153-S001 3
BOLT 92153A 92153-S067 2
SCREW,OIL PUMP 92172 92172-S167 3
SHIM,10X18X0.5 92180 92180-S001 1
