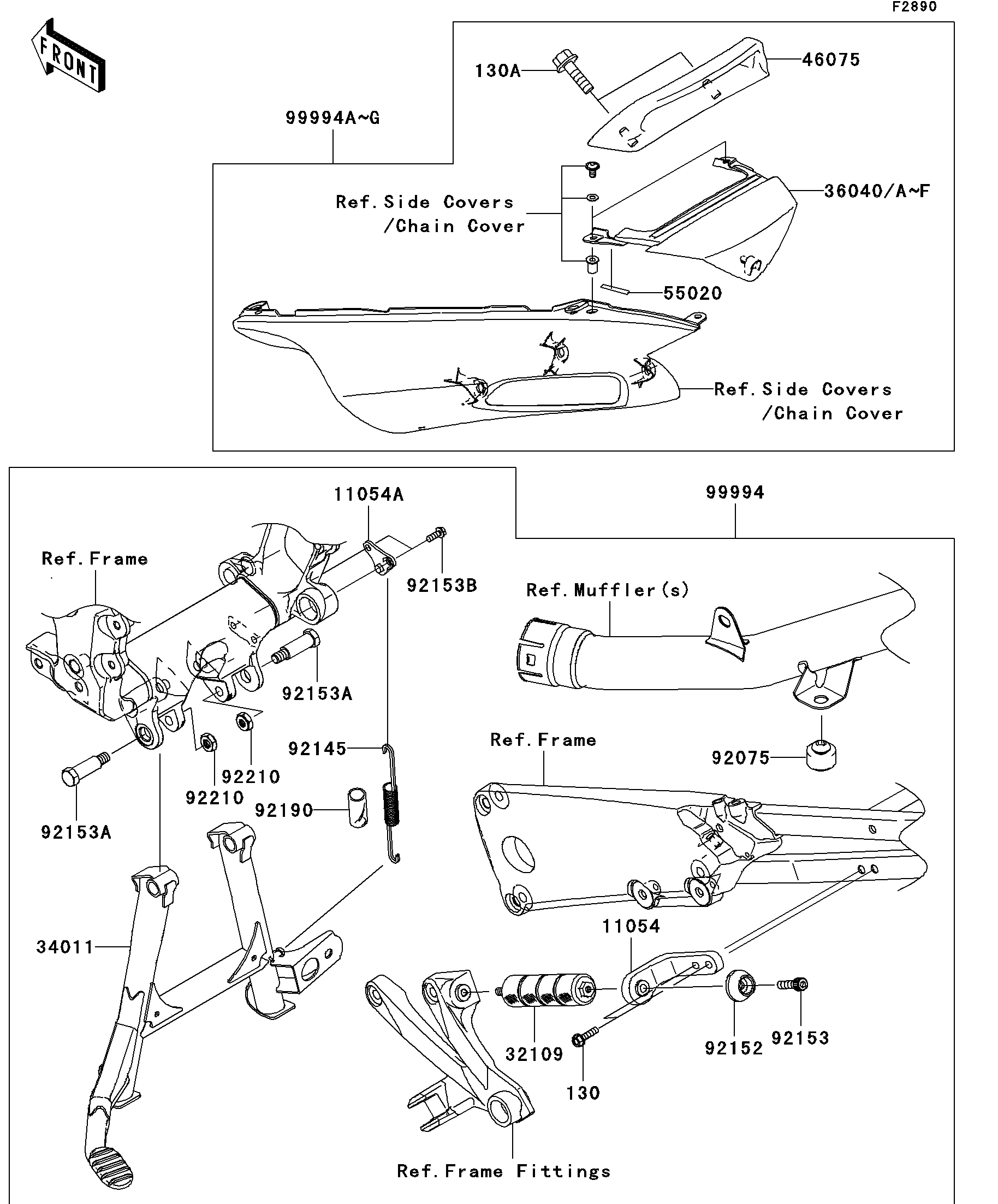

2007 Ninja® ZX™-14 - Optional Parts

DOWNLOAD PDF
SELECT A NEW PART
11054
11054A
130
130A
32109
34011
36040A
36040B
36040F
46075
55020
92075
92145
92152
92153
92153A
92153A
92153B
92190
92210
92210
99994
99994B
99994C
99994G
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CENTER STAND GRIP 11054 11054-0452 1
BRACKET,CENTER STAND SPRING 11054A 11054-0744 1
BOLT-FLANGED,6X25 130 130BA0625 2
BOLT-FLANGED,8X35 130A 130BA0835 2
GRIP-FRAME,CENTER STAND 32109 32109-0021 1
STAND-CENTER 34011 34011-0011 1
COVER-TAIL,CNT,M.BLACK 36040A 36040-0059-17K 1
COVER-TAIL,CNT,SILVER 36040B 36040-0059-17M 1 CN
COVER-TAIL,CNT,C.P.BLUE 36040F 36040-0059-723 1
GRIP,TAIL,F.BLACK 46075 46075-1104-21 1
GUARD,TAIL COVER 55020 55020-0277 2
DAMPER 92075 92075-015 1
SPRING,CENTER STAND 92145 92145-0362 1
COLLAR 92152 92152-0426 1
BOLT,SOCKET,10X30 92153 92153-1524 1
BOLT,CENTER STAND,10MM 92153A 92153-1593 2
BOLT,FLANGED,6X14 92153B 92153-1594 2
TUBE,16.5X20.5X55 92190 92190-1462 1
NUT,LOCK,10MM 92210 92210-0278 2
KIT,CENTER STAND 99994 99994-0052 1
KIT,TANDEM GRIP,M.BLACK 99994B 99994-0053-17K 1
KIT,TANDEM GRIP,SILVER 99994C 99994-0053-17M 1 CN
KIT,TANDEM GRIP,C.P.BLUE 99994G 99994-0053-723 1
