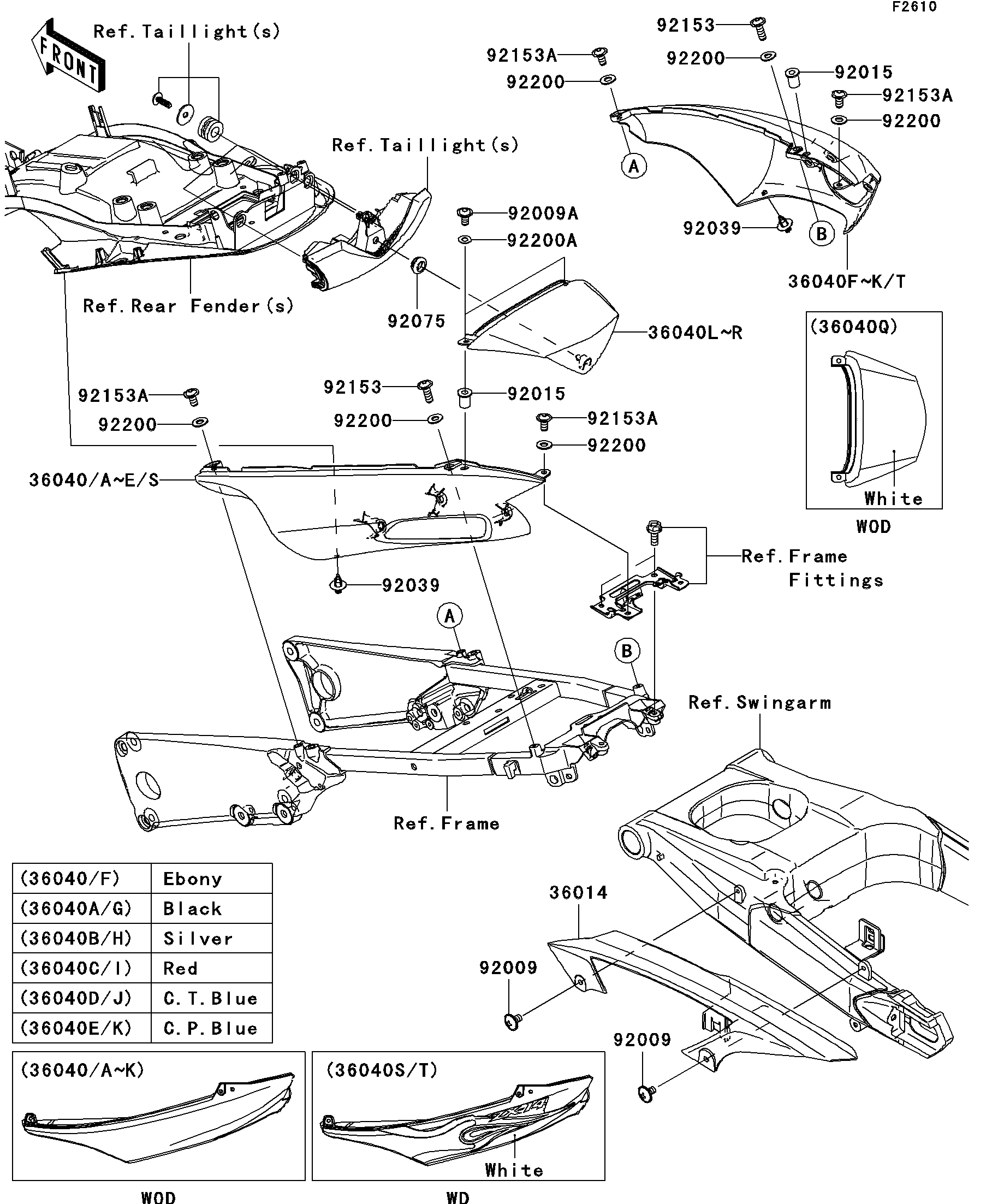

2007 Ninja® ZX™-14 - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36014
36040A
36040B
36040E
36040G
36040H
36040K
36040M
36040N
36040R
92009
92009
92009A
92015
92015
92039
92039
92075
92153
92153
92153A
92153A
92153A
92153A
92200
92200
92200
92200
92200
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-0030 1
COVER-TAIL,LH,M.BLACK 36040A 36040-0033-17K 1
COVER-TAIL,LH,SILVER 36040B 36040-0033-17M 1 CN
COVER-TAIL,LH,C.P.BLUE 36040E 36040-0033-723 1
COVER-TAIL,RH,M.BLACK 36040G 36040-0034-17K 1
COVER-TAIL,RH,SILVER 36040H 36040-0034-17M 1 CN
COVER-TAIL,RH,C.P.BLUE 36040K 36040-0034-723 1
COVER-TAIL,CNT,M.BLACK 36040M 36040-0058-17K 1
COVER-TAIL,CNT,SILVER 36040N 36040-0058-17M 1 CN
COVER-TAIL,CNT,C.P.BLUE 36040R 36040-0058-723 1
SCREW,6X10 92009 92009-1661 2
SCREW,5X16 92009A 92009-1909 2
NUT,WELL,5MM 92015 92015-1757 2
RIVET 92039 92039-0015 2
DAMPER 92075 92075-1011 1
BOLT,6X18 92153 92153-0478 2
BOLT,SOCKET,6X12 92153A 92153-1617 4
WASHER,6.5X14X1 92200 92200-1388 6
WASHER,NYLON,5.3X11.5X0.5 92200A 92200-1480 2
