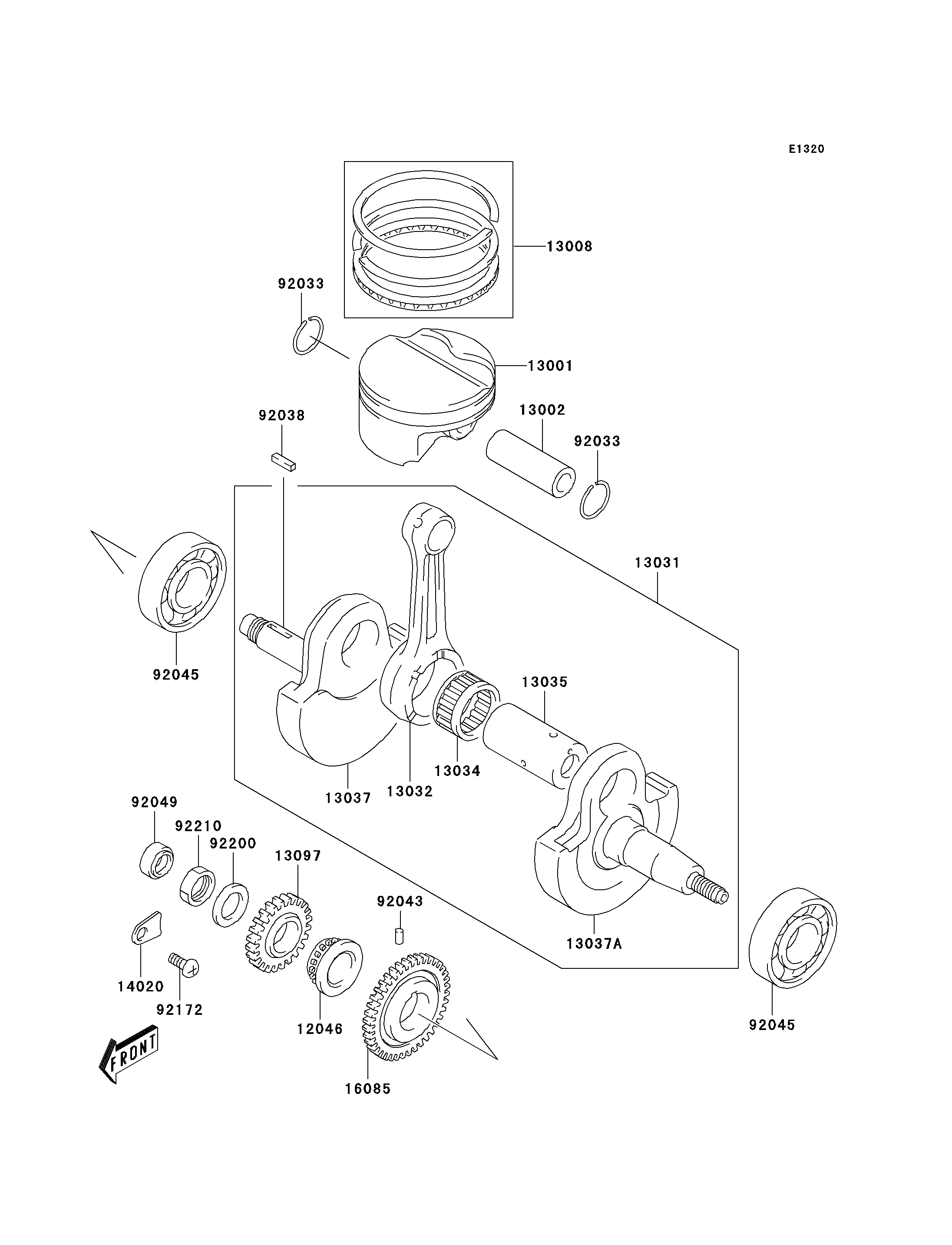

2006 KFX400 - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
12046
13001
13002
13008
13031
13032
13034
13035
13037
13037A
13097
14020
16085
92033
92033
92038
92043
92045
92045
92049
92172
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,CAM CHAIN 12046 12046-S006 1
PISTON-ENGINE 13001 13001-S006 1
PIN-PISTON 13002 13002-S006 1
RING-SET-PISTON 13008 13008-S008 1
CRANKSHAFT-COMP 13031 13031-S012 1
ROD-CONNECTING 13032 13032-S007 1
BEARING-BIG END 13034 13034-S008 1
PIN-CRANK 13035 13035-S006 1
CRANKSHAFT,RH 13037 13037-S011 1
CRANKSHAFT,LH 13037A 13037-S012 1
GEAR-PRIMARY SPUR 13097 13097-S007 1
RETAINER 14020 14020-S009 1
GEAR,CRANK BALANCER 16085 16085-S004 1
RING-SNAP,PISTON PIN 92033 92033-S040 2
KEY,PRIMARY DRIVE GEAR 92038 92038-S006 1
PIN,5X8 92043 92043-S008 1
BEARING-BALL,CRANKSHAFT 92045 92045-S054 2
SEAL-OIL,CRANKSHAFT,RH 92049 92049-S048 1
SCREW 92172 92172-S166 1
WASHER 92200 92200-S140 1
NUT,PRIMARY DRIVE GEAR 92210 92210-S102 1
