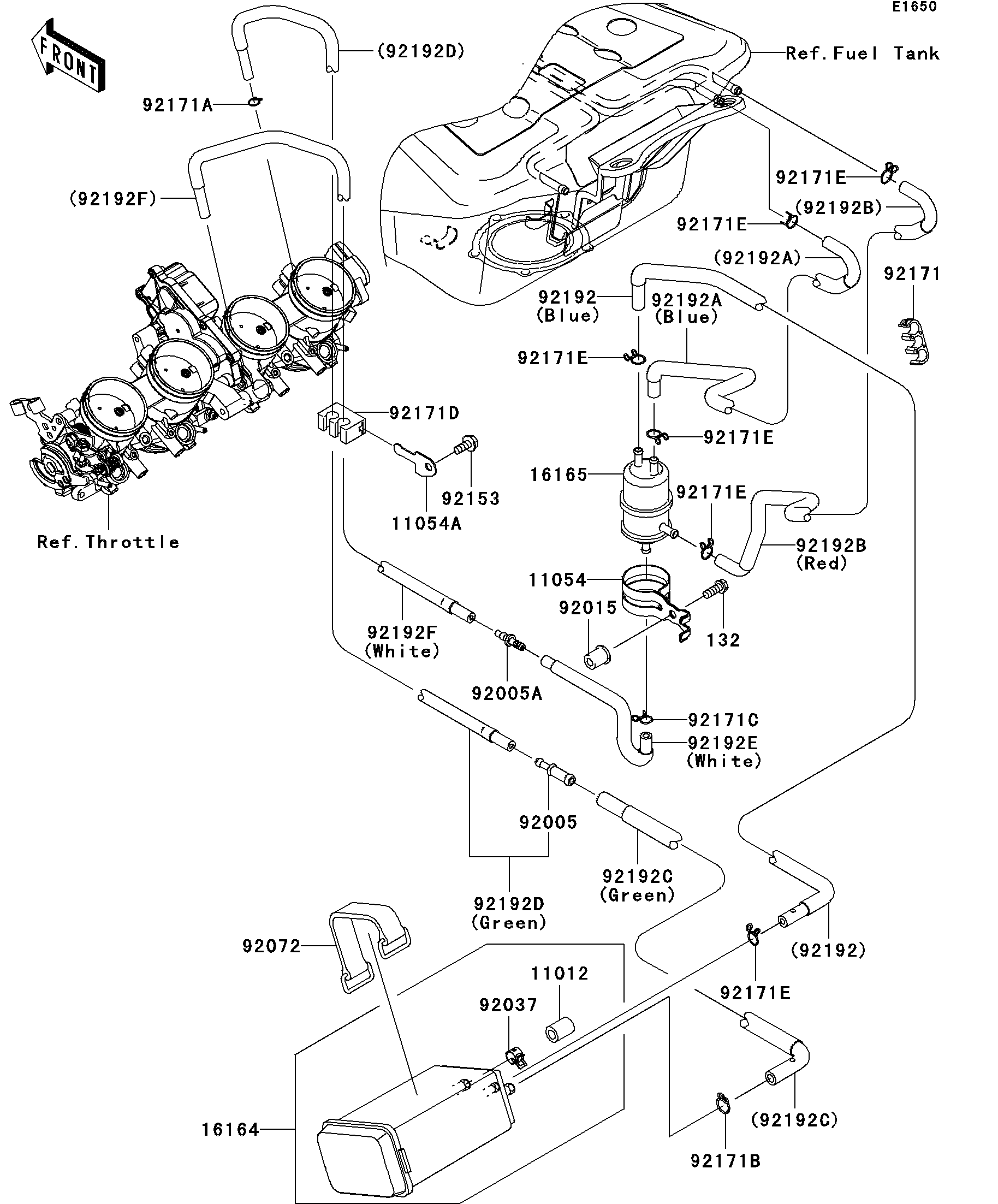

2007 Ninja® ZX™-14 - Fuel Evaporative System(CA)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11054
11054
11054A
11054A
16164
16164
16165
16165
92005
92005
92005A
92005A
92015
92015
92037
92037
92072
92072
92153
92153
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
92171D
92171D
92171E
92171E
92171E
92171E
92171E
92171E
92171E
92171E
92171E
92171E
92171E
92171E
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92192D
92192D
132
132
92192E
92192E
92192F
92192F
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CANISTER 11012 11012-1388 1 CA
BRACKET 11054 11054-0197 1 CA
BRACKET 11054A 11054-0464 1 CA
CANISTER 16164 16164-1054 1 CA
SEPARATOR 16165 16165-1001 1 CA
FITTING 92005 92005-0032 1 CA
FITTING 92005A 92005-1206 1 CA
NUT 92015 92015-1700 1 CA
CLAMP,CANISTER 92037 92037-1512 1 CA
BAND 92072 92072-0050 1 CA
BOLT-FLANGED,6X14 92153 92153-1571 1 CA
CLAMP 92171 92171-0334 1 CA
CLAMP 92171A 92171-0573 1 CA
CLAMP 92171B 92171-0574 1 CA
CLAMP 92171C 92171-0576 1 CA
CLAMP 92171D 92171-0693 1 CA
CLAMP 92171E 92171-0718 6 CA
TUBE,CANISTER-SEPARATOR,BLUE 92192 92192-0284 1 CA
TUBE,SEPARATOR-TANK,BLUE 92192A 92192-0285 1 CA
TUBE,TANK-SEPARATOR SIDE,RED 92192B 92192-0286 1 CA
TUBE,CANISTER-FITTING,GREEN 92192C 92192-0288 1 CA
TUBE,THROBO #4-GREEN TUBE 92192D 92192-0328 1 CA
BOLT-FLANGED-SMALL,6X16 132 132BA0616 1 CA
TUBE,SEPARATOR-FITTING,WHITE 92192E 92192-0329 1 CA
TUBE,THROBO #3-FITTING,WHITE 92192F 92192-0373 1 CA
