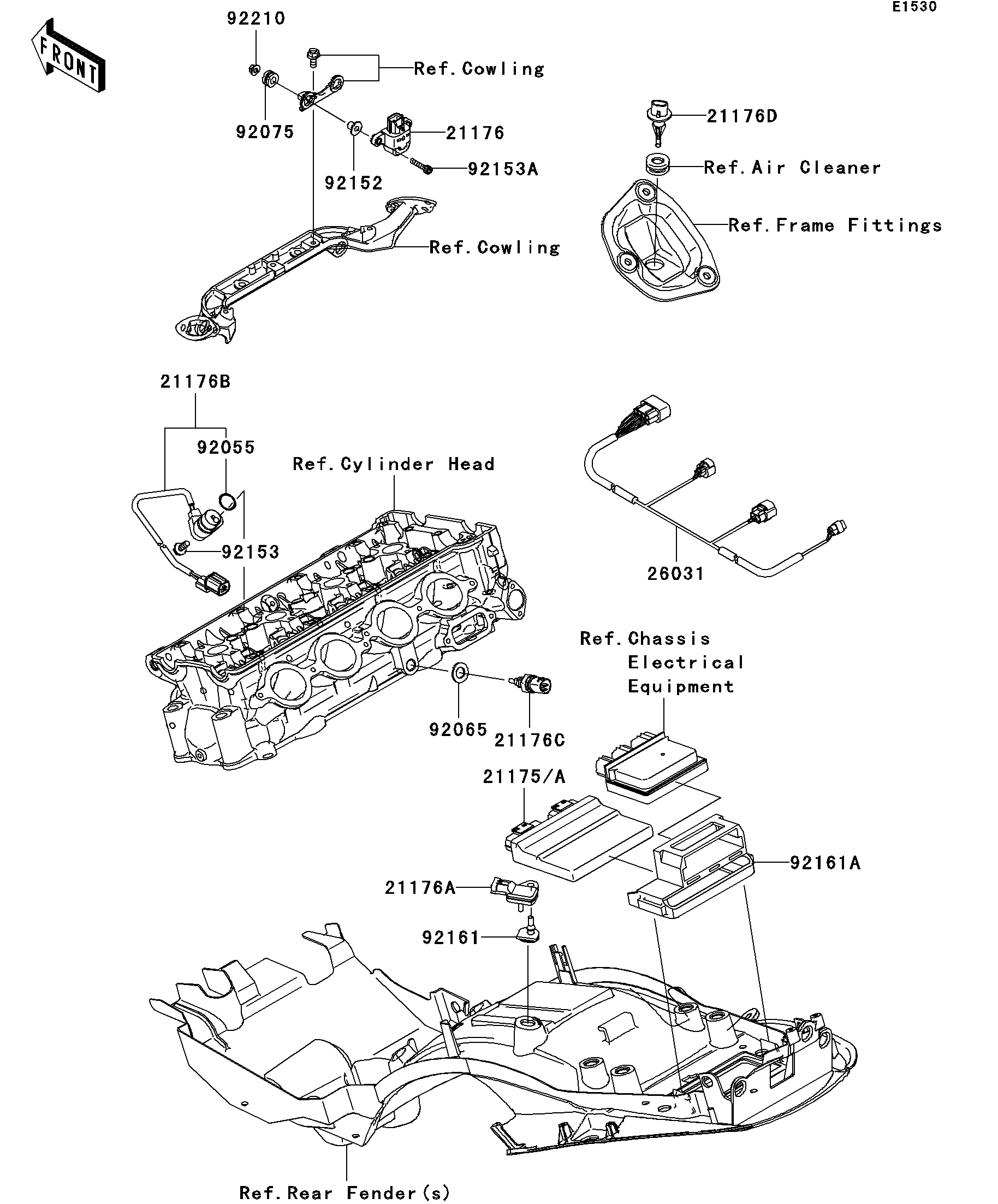

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
21175
21175A
21176
21176A
21176B
21176C
21176D
26031
92055
92065
92075
92152
92153
92153A
92161
92161A
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CONTROL UNIT-ELECTRONIC | 21175 | 21175-0084 | 1 | CN,US | |
| CONTROL UNIT-ELECTRONIC | 21175A | 21175-0089 | 1 | CA | |
| SENSOR,VEHICLE-DOWN | 21176 | 21176-0026 | 1 | ||
| SENSOR,PRESSURE | 21176A | 21176-0058 | 1 | ||
| SENSOR,CAM | 21176B | 21176-0064 | 1 | ||
| SENSOR,WATER TEMP | 21176C | 21176-1120 | 1 | ||
| SENSOR,AIR TEMP | 21176D | 21176-2106 | 1 | ||
| HARNESS | 26031 | 26031-0364 | 1 | ||
| RING-O | 92055 | 92055-1639 | 1 | ||
| GASKET,12X22X2 | 92065 | 92065-097 | 1 | ||
| DAMPER | 92075 | 92075-1912 | 2 | ||
| COLLAR | 92152 | 92152-0329 | 2 | ||
| BOLT-FLANGED,6X16 | 92153 | 92153-1584 | 1 | ||
| BOLT,SOCKET,5X22 | 92153A | 92153-1597 | 2 | ||
| DAMPER | 92161 | 92161-0041 | 1 | ||
| DAMPER,ECU | 92161A | 92161-0288 | 1 | ||
| NUT,5X0.8 | 92210 | 92210-0242 | 2 |
| CONTROL UNIT-ELECTRONIC | |
| REF # | 21175 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| CONTROL UNIT-ELECTRONIC | |
| REF # | 21175A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| SENSOR,VEHICLE-DOWN | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,PRESSURE | |
| REF # | 21176A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,CAM | |
| REF # | 21176B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,WATER TEMP | |
| REF # | 21176C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,AIR TEMP | |
| REF # | 21176D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS | |
| REF # | 26031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,12X22X2 | |
| REF # | 92065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X22 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ECU | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,5X0.8 | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
