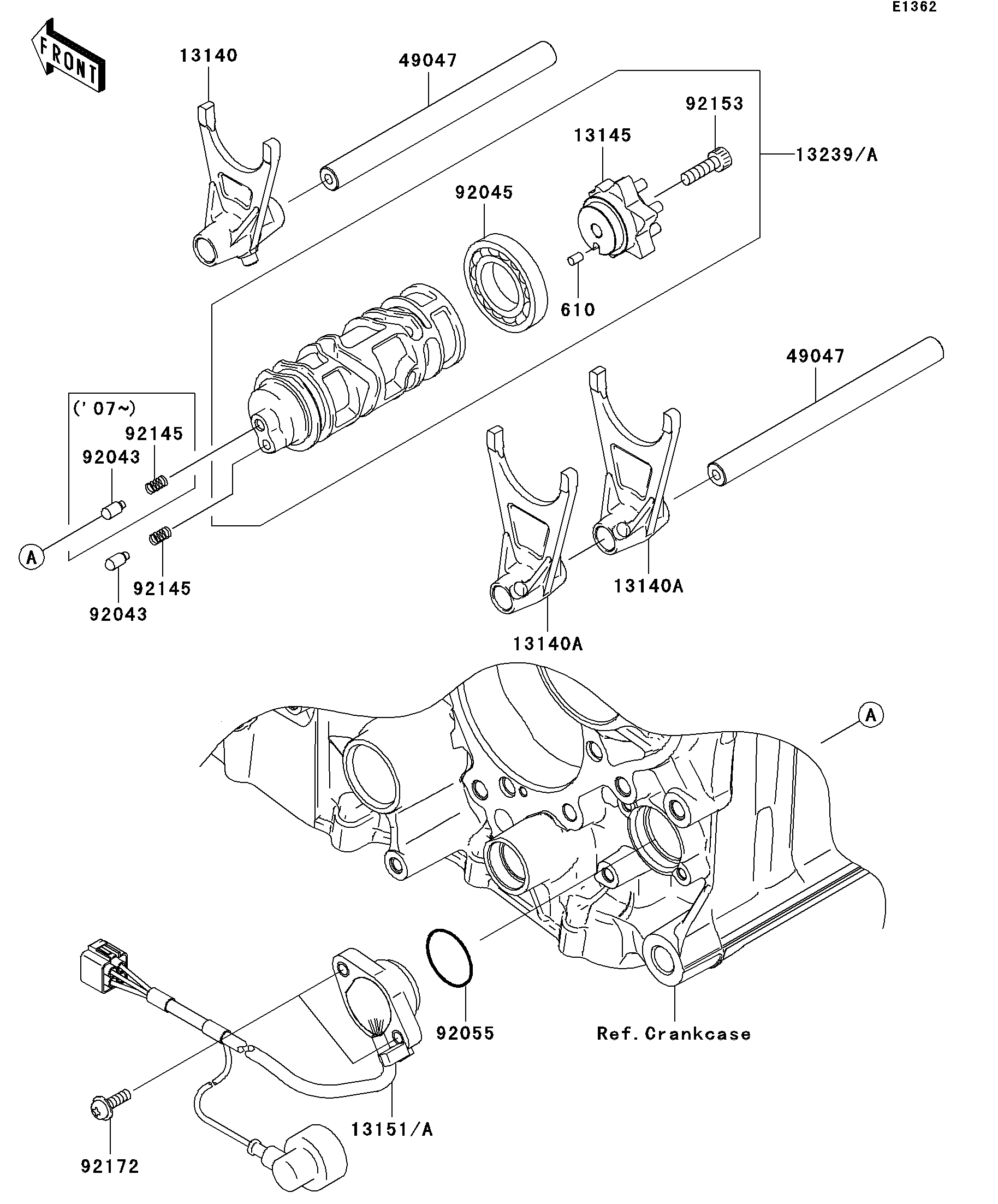

2007 Ninja® ZX™-14 - Gear Change Drum/Shift Fork(s)
13140
13140A
13140A
13145
13151A
13239A
49047
49047
610
92043
92043
92045
92055
92145
92145
92153
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FORK-SHIFT,INPUT | 13140 | 13140-0029 | 1 | ||
| FORK-SHIFT,OUTPUT | 13140A | 13140-0030 | 2 | ||
| CAM-CHANGE DRUM | 13145 | 13145-0023 | 1 | ||
| SWITCH-COMP,NEUTRAL | 13151A | 13151-0027 | 1 | ||
| DRUM-ASSY-CHANGE | 13239A | 13239-0023 | 1 | ||
| ROD-SHIFT | 49047 | 49047-0023 | 2 | ||
| ROLLER,4X6 | 610 | 610A0406 | 1 | ||
| PIN | 92043 | 92043-1654 | 2 | ||
| BEARING-BALL,16005(NTN) | 92045 | 92045-1045 | 1 | ||
| RING-O | 92055 | 92055-091 | 1 | ||
| SPRING | 92145 | 92145-1414 | 2 | ||
| BOLT,SOCKET,6X20 | 92153 | 92153-1031 | 1 | ||
| SCREW-PAN-WS-CROS,5X16 | 92172 | 92172-0270 | 2 |
