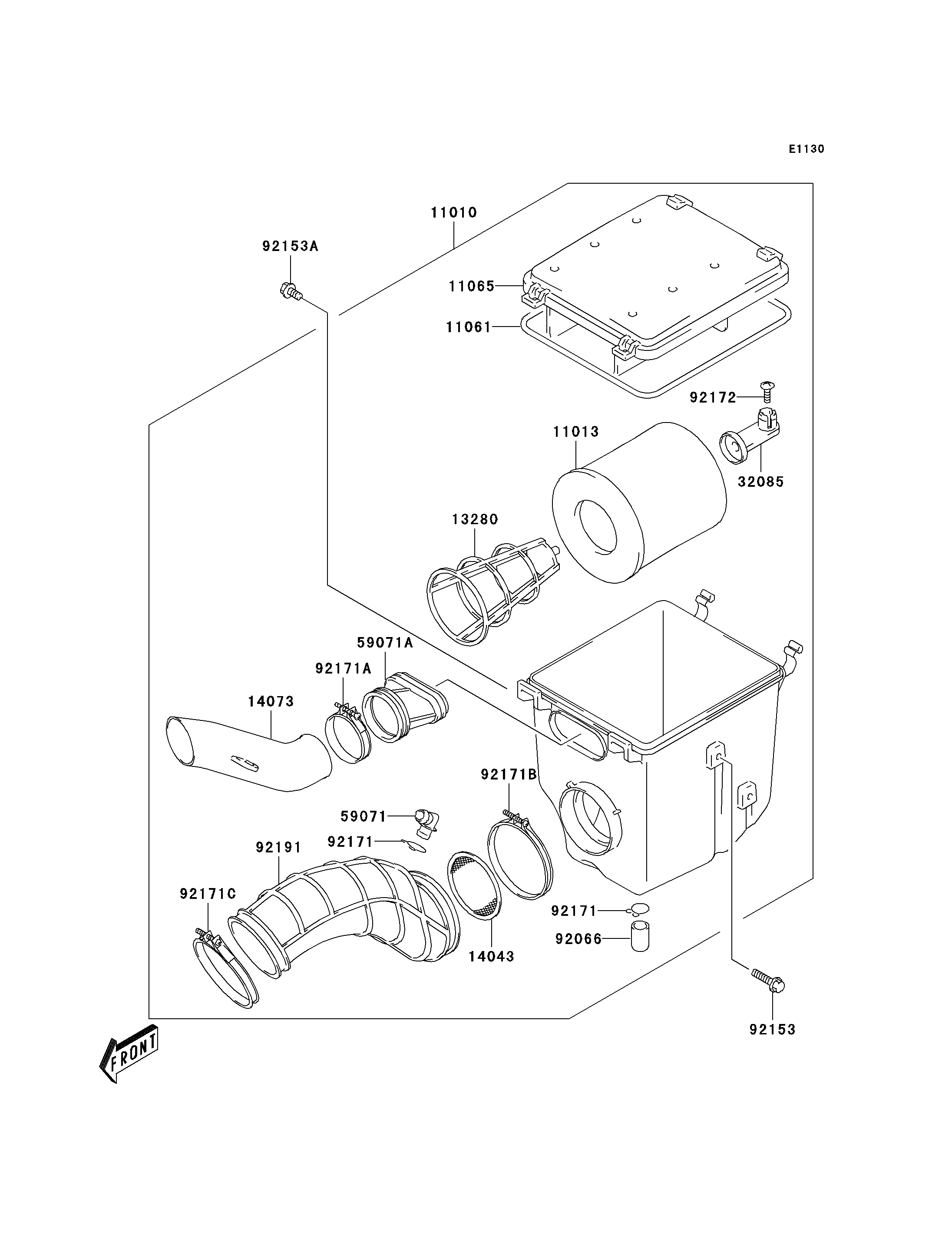

Parts Diagrams |
11010
11013
11061
11065
13280
14043
14073
32085
59071
59071A
92066
92153
92153A
92171
92171
92171A
92171B
92171C
92172
92191
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-S017 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-S011 | 1 | ||
| GASKET | 11061 | 11061-S075 | 1 | ||
| CAP,AIR CLEANER | 11065 | 11065-S071 | 1 | ||
| HOLDER | 13280 | 13280-S024 | 1 | ||
| FILTER | 14043 | 14043-S004 | 1 | ||
| DUCT,INLET | 14073 | 14073-S011 | 1 | ||
| STOPPER,HOLDER | 32085 | 32085-S011 | 1 | ||
| JOINT | 59071 | 59071-S002 | 1 | ||
| JOINT,INLET | 59071A | 59071-S005 | 1 | ||
| PLUG | 92066 | 92066-S004 | 1 | ||
| BOLT | 92153 | 92153-S002 | 2 | ||
| BOLT | 92153A | 92153-S012 | 1 | ||
| CLAMP | 92171 | 92171-S006 | 2 | ||
| CLAMP | 92171A | 92171-S089 | 1 | ||
| CLAMP | 92171B | 92171-S091 | 1 | ||
| CLAMP | 92171C | 92171-S102 | 1 | ||
| SCREW | 92172 | 92172-S055 | 1 | ||
| TUBE,OUTLET | 92191 | 92191-S060 | 1 |
| FILTER-ASSY-AIR | |
| REF # | 11010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT-AIR FILTER | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR CLEANER | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER | |
| REF # | 14043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,INLET | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER,HOLDER | |
| REF # | 32085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT,INLET | |
| REF # | 59071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,OUTLET | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
