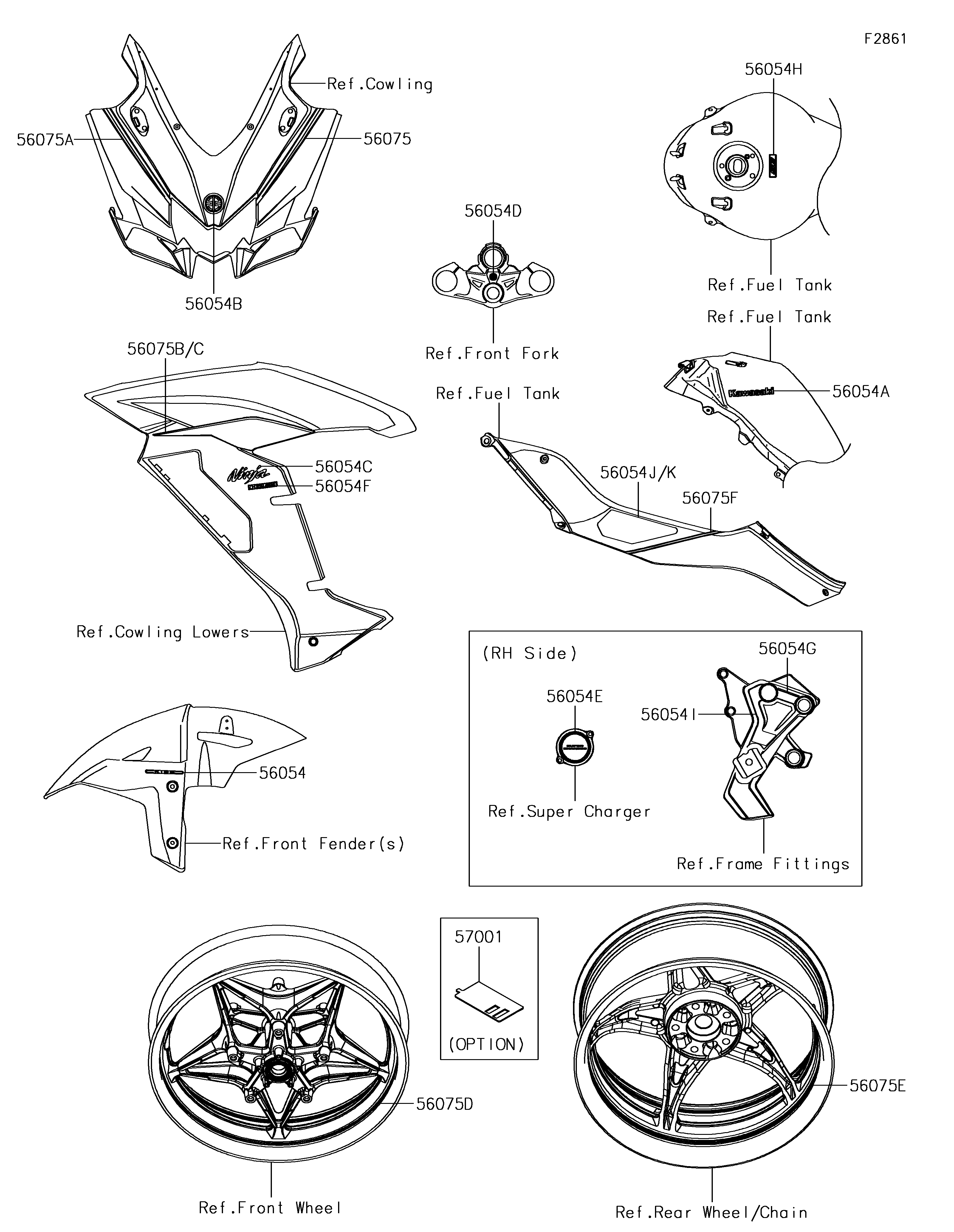

2018 NINJA H2™ SX SE - Decals

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56054D
56054E
56054F
56054G
56054H
56054I
56054J
56054K
56075
56075A
56075B
56075C
56075D
56075E
56075F
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,KIBS 56054 56054-0919 2
MARK,KAWASAKI 56054A 56054-1356 2
MARK,UPP COWL.,RIVER 56054B 56054-1557 1
MARK,SIDE COVER,NINJA 56054C 56054-1626 2
MARK,UPP HOLDER,RIVER 56054D 56054-1628 1
MARK,SUPERCHARGED 56054E 56054-1766 1
MARK,H2 SX,3D 56054F 56054-2330 2
MARK,STEP STAY,TOP 56054G 56054-2433 1
MARK,FUEL TANK,SE,3D 56054H 56054-2435 1
MARK,STEP STAY,SIDE 56054I 56054-2439 1
MARK,KNEE PAD,LH 56054J 56054-2455 1
MARK,KNEE PAD,RH 56054K 56054-2456 1
PATTERN,UPP COWL.,LH 56075 56075-4303 1
PATTERN,UPP COWL.,RH 56075A 56075-4304 1
PATTERN,SIDE COWL.,LH 56075B 56075-4305 1
PATTERN,SIDE COWL.,RH 56075C 56075-4306 1
PATTERN,FR WHEEL,GRN,10X1372 56075D 56075-4309 2
PATTERN,RR WHEEL,GRN,12X1377 56075E 56075-4310 2
PATTERN,KNEE COVER 56075F 56075-7161 2
RIM STRIPE APPLICATOR,10/12MM 57001 57001-1836 AR (OPTION)
