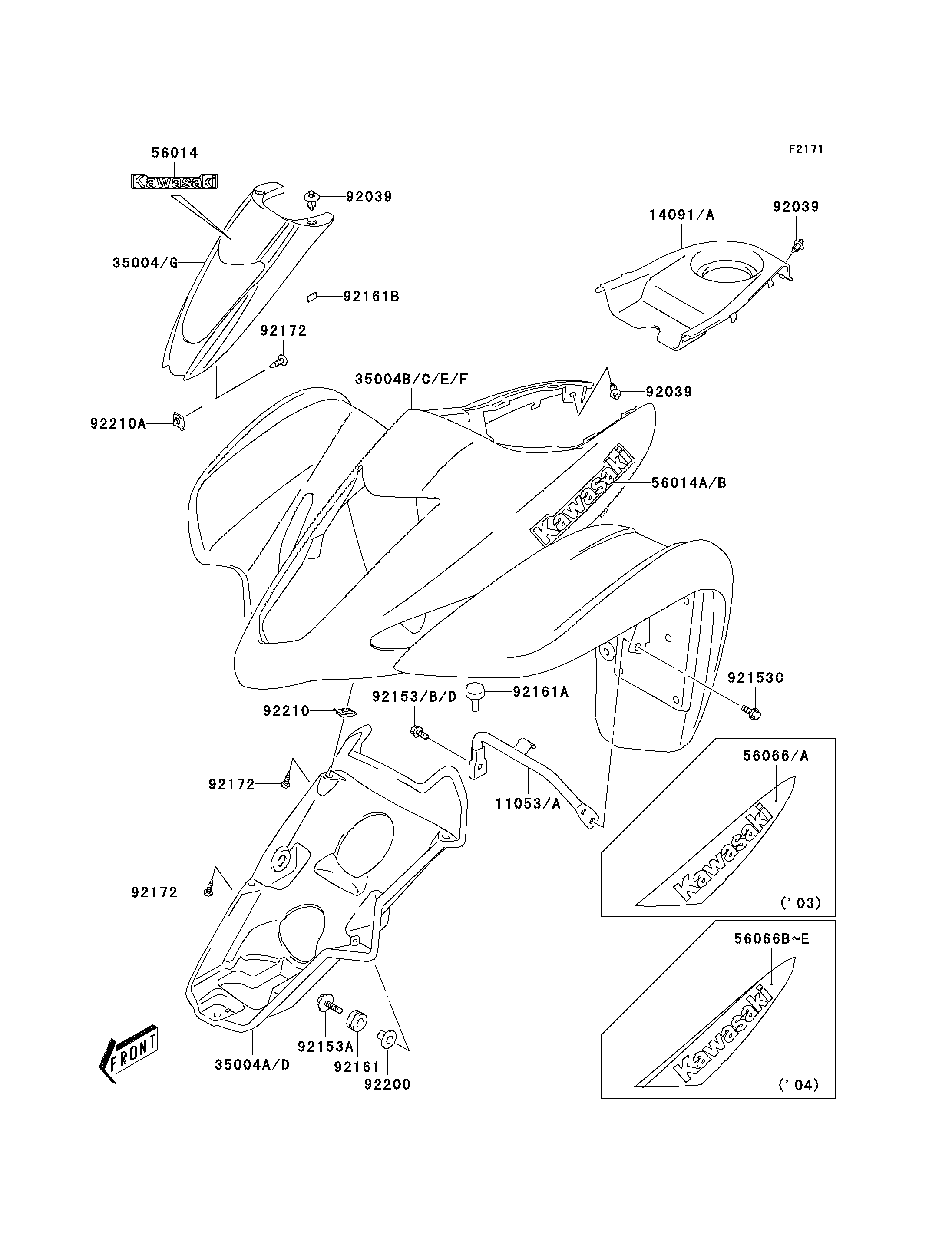

2004 KFX400 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
11053A
14091
35004
35004A
35004B
35004C
56014
56066B
56066C
56066D
56066E
92039
92039
92039
92153A
92153B
92153C
92161
92161A
92161B
92172
92172
92172
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FRONT FENDER,RH 11053 11053-S011 1
BRACKET,FRONT FENDER,LH 11053A 11053-S012 1
COVER,BLACK 14091 14091-S087-503 1
FENDER-FRONT,COVER,BLACK 35004 35004-S015-503 1
FENDER-FRONT 35004A 35004-S016 1
FENDER-FRONT,B.ORANGE 35004B 35004-S017-268 1
FENDER-FRONT,L.GREEN 35004C 35004-S017-535 1
EMBLEM,KAWASAKI,WHITE/BLACK 56014 56014-S024-559 1
PATTERN,RH,WHITE/BLACK 56066B 56066-S029-559 1
PATTERN,RH,WHT/BLK/SIL 56066C 56066-S029-574 1
PATTERN,LH,WHITE/BLACK 56066D 56066-S030-559 1
PATTERN,LH,WHT/BLK/SIL 56066E 56066-S030-574 1
RIVET 92039 92039-S010 8
BOLT 92153A 92153-S067 2
BOLT 92153B 92153-S258 2
BOLT 92153C 92153-S286 2
DAMPER 92161 92161-S030 2
DAMPER,FRONT FENDER BRACKET 92161A 92161-S091 2
DAMPER 92161B 92161-S149 6
SCREW 92172 92172-S031 7
WASHER,FRONT FENDER 92200 92200-S148 2
NUT 92210 92210-S012 2
NUT 92210A 92210-S143 2
