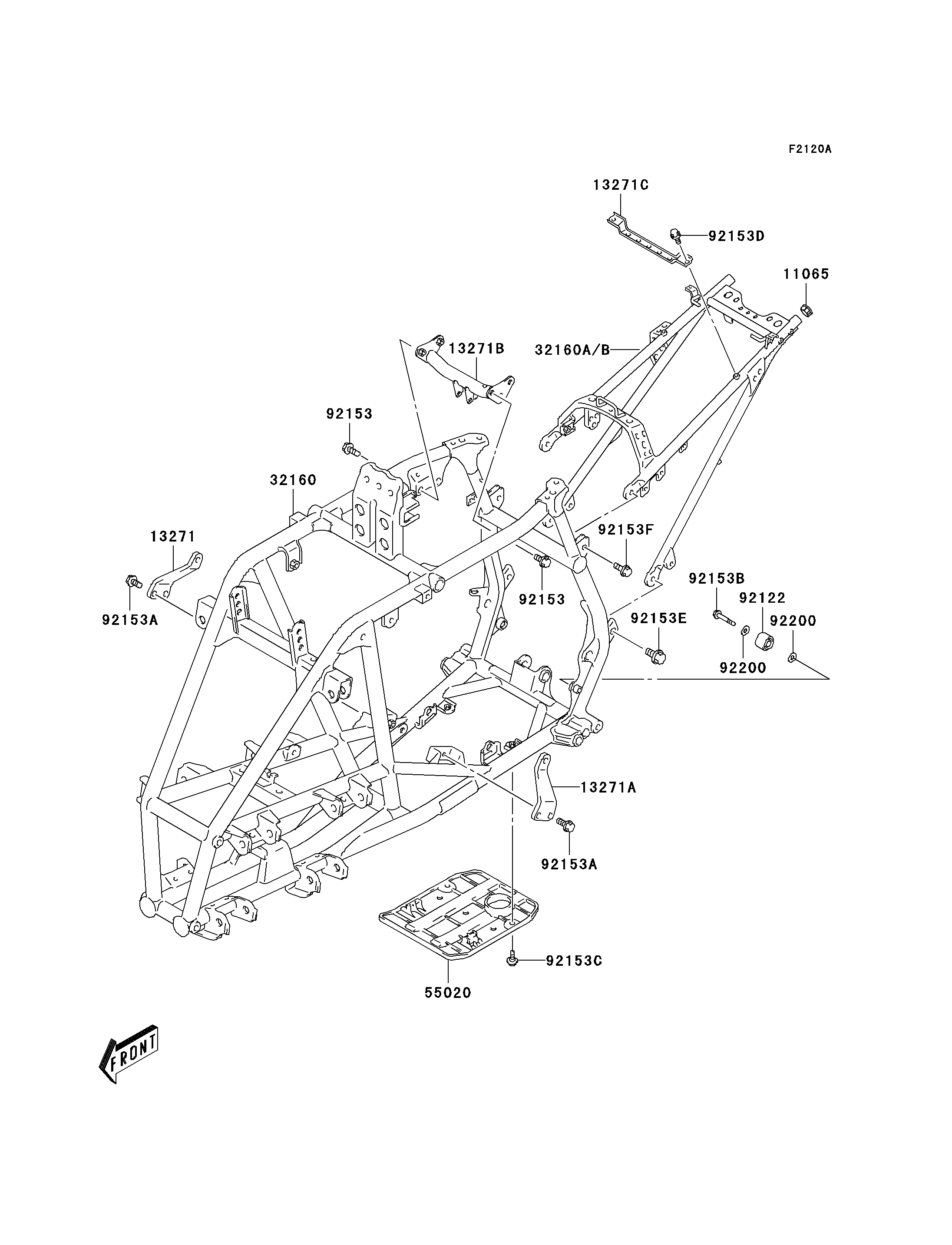

2005 KFX400 - Frame(A3)

DOWNLOAD PDF
SELECT A NEW PART
11065
13271
13271A
13271B
13271C
32160
55020
92122
92153
92153
92153A
92153A
92153B
92153C
92153D
92153E
92153F
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-S065 2
PLATE,MOUNT ENGINE,RH 13271 13271-S050 1
PLATE,MOUNT ENGINE,LH 13271A 13271-S051 1
PLATE,MOUNT ENGINE,UPP 13271B 13271-S083 1
PLATE,BATTERY 13271C 13271-S084 1
FRAME-COMP,FR,M.G.GRAY 32160 32160-S027-548 1
GUARD,ENGINE 55020 55020-S015 1
ROLLER 92122 92122-S008 1
BOLT 92153 92153-S108 4
BOLT,BRUSH GUARD 92153A 92153-S220 4
BOLT,CHAIN ROLLER 92153B 92153-S264 1
BOLT,ENGINE PROTECTOR 92153C 92153-S286 2
BOLT,6X16 92153D 92153-S383 2
BOLT 92153E 92153-S397 2
BOLT 92153F 92153-S464 2
WASHER,OIL PUMP DRIVEN 92200 92200-S111 2
FRAME-COMP,RR,S.SILVER 32160A 32160-S028-514 1 US
FRAME-COMP,RR,S.SILVER 32160B 32160-S029-514 1 CN
