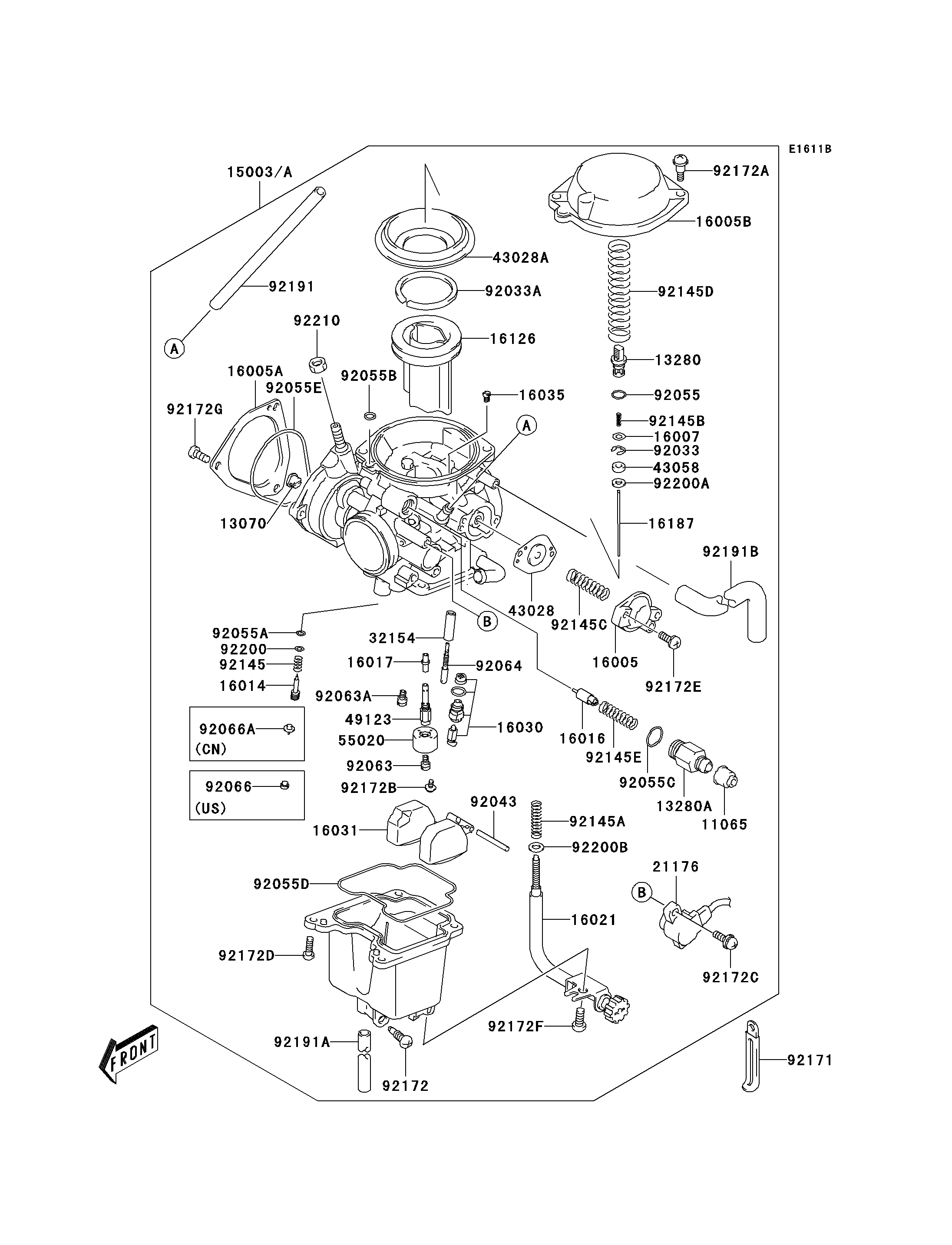

2005 KFX400 - Carburetor(A3)

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
13070
13070
13280
13280
13280A
13280A
16005
16005
16005A
16005A
16005B
16005B
16007
16007
16014
16014
16016
16016
16017
16017
16021
16021
16030
16030
16031
16031
16035
16035
16126
16126
16187
16187
21176
21176
32154
32154
43028
43028
43028A
43028A
43058
43058
49123
49123
55020
55020
92033
92033
92033A
92033A
92043
92043
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92055E
92055E
92063
92063
92063A
92063A
92064
92064
92145
92145
92145A
92145A
92145B
92145B
92145C
92145C
92145D
92145D
92145E
92145E
92171
92171
92172
92172
92172A
92172A
92172B
92172B
92172C
92172C
92172D
92172D
92172E
92172E
92172F
92172F
92172G
92172G
92191
92191
92191A
92191A
92191B
92191B
92200
92200
92200A
92200A
92200B
92200B
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-S020 1
GUIDE 13070 13070-S010 1
HOLDER 13280 13280-S002 1
HOLDER 13280A 13280-S038 1
TOP-CHAMBER 16005 16005-S004 1
TOP-CHAMBER,THROTTLE 16005A 16005-S005 1
TOP-CHAMBER,DIAPHRAGM 16005B 16005-S011 1
SEAT-SPRING 16007 16007-S005 1
SCREW-PILOT AIR 16014 16014-S010 1
PLUNGER 16016 16016-S007 1
JET-NEEDLE,P-0M 16017 16017-S005 1
SCREW-THROTTLE STOP 16021 16021-S005 1
VALVE-FLOAT 16030 16030-S006 1
FLOAT 16031 16031-S006 1
JET-AIR 16035 16035-S006 1
VALVE 16126 16126-S010 1
NEEDLE-JET,5E26-1 16187 16187-S007 1
SENSOR 21176 21176-S001 1
PIPE 32154 32154-S004 1
DIAPHRAGM 43028 43028-S008 1
DIAPHRAGM 43028A 43028-S009 1
RING 43058 43058-S001 1
HOLDER-MAIN JET 49123 49123-S008 1
GUARD,JET 55020 55020-S039 1
RING-SNAP,MULTIPLE JET 92033 92033-S008 1
RING-SNAP 92033A 92033-S041 1
PIN 92043 92043-S034 1
RING-O,ID:4.8 92055 92055-S003 1
RING-O 92055A 92055-S013 1
RING-O 92055B 92055-S044 1
RING-O 92055C 92055-S048 1
RING-O 92055D 92055-S058 1
RING-O 92055E 92055-S065 1
JET-MAIN,#130 92063 92063-S007 1
JET-MAIN,#60 92063A 92063-S008 1
JET-PILOT,#22.5 92064 92064-S008 1
SPRING,THROTTLE SCREW 92145 92145-S010 1
SPRING 92145A 92145-S095 1
SPRING 92145B 92145-S097 1
SPRING 92145C 92145-S098 1
SPRING 92145D 92145-S099 1
SPRING 92145E 92145-S109 1
CLAMP,L=45 92171 92171-S132 1
SCREW,DRAIN 92172 92172-S046 1
SCREW 92172A 92172-S047 2
SCREW 92172B 92172-S048 1
SCREW 92172C 92172-S049 2
SCREW 92172D 92172-S057 4
SCREW 92172E 92172-S139 2
SCREW 92172F 92172-S164 1
SCREW 92172G 92172-S180 3
TUBE,5X9X175 92191 92191-S054 1
TUBE 92191A 92191-S058 1
TUBE 92191B 92191-S059 1
WASHER 92200 92200-S019 1
WASHER 92200A 92200-S083 1
WASHER 92200B 92200-S151 1
NUT 92210 92210-S121 1
CARBURETOR-ASSY 15003 15003-S020 1 CN
CARBURETOR-ASSY 15003A 15003-S021 1 US
PLUG 92066 92066-S027 1 US
PLUG 92066A 92066-S041 1 CN
