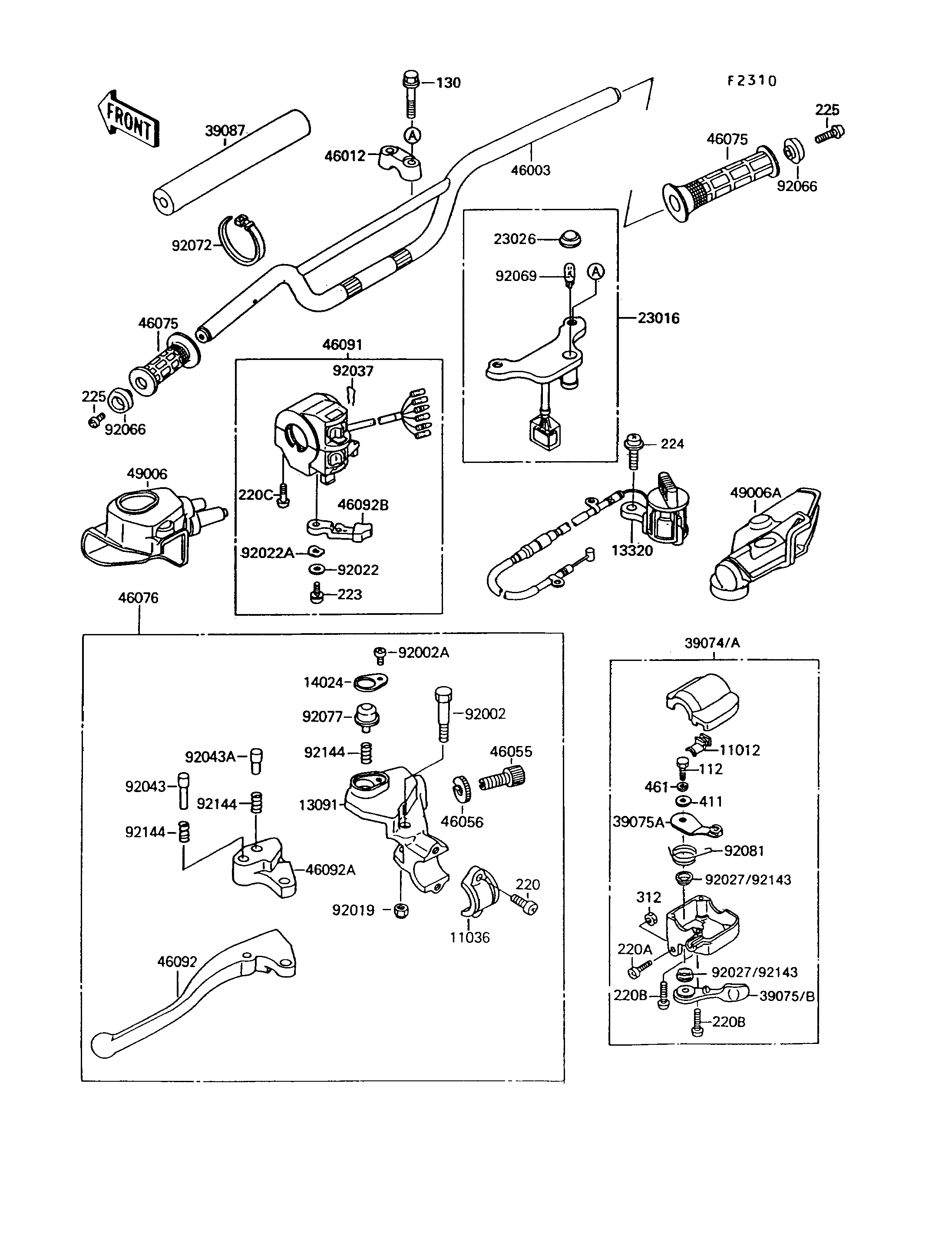

1994 Mojave 250 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1425 1
BRACKET-A,LEVER HOLDER 11036 11036-1297 1
HOLDER,LEVER 13091 13091-1456 1
LEVER-ASSY,REVERSE 13320 13320-1006 1
COVER,PARKING LEVER 14024 14024-1351 1
LAMP-ASSY,REVERSE 23016 23016-1105 1
LENS,PILOT,RED 23026 23026-1105 1
LEVER-ASSY-THROTTLE 39074 39074-1052 1
LEVER-THROTTLE 39075 39075-1053 1
LEVER-THROTTLE,ARM 39075A 39075-1054 1
PAD-HANDLE 39087 39087-1051 1
HANDLE,L.GREEN 46003 46003-1369-CC 1
HOLDER-HANDLE 46012 46012-1168 2
SCREW,CABLE ADJUST,8MM 46055 46055-009 1
NUT,CABLE ADJUST 46056 46056-006 1
GRIP 46075 46075-1056 2
LEVER-ASSY-GRIP,LH 46076 46076-1137 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1477 1
LEVER-GRIP,CLUTCH 46092 46092-1137 1
LEVER-GRIP,PARKING 46092A 46092-1138 1
LEVER-GRIP,CHOKE 46092B 46092-1139 1
BOOT,LH 49006 49006-1197 1
BOOT,RH 49006A 49006-1198 1
BOLT,LEVER SET 92002 92002-1833 1
BOLT,TAPPING 92002A 92002-1834 1
NUT,LOCK,6MM 92019 92019-008 1
WASHER,5MM 92022 92022-1837 1
WASHER,WAVE,5MM 92022A 92022-1838 1
COLLAR 92027 92027-1982 2
CLAMP,CLIP 92037 92037-1836 1
PIN,5X15 92043 92043-1341 1
PIN,5X11 92043A 92043-1342 1
PLUG,HANDLE 92066 92066-1191 2
BULB,12V 3.4W 92069 92069-1007 1
BAND,L=149 92072 92072-031 1
KNOB,PARKING LEVER 92077 92077-1076 1
SPRING 92081 92081-1685 1
SPRING 92144 92144-1058 3
BOLT-UPSET 112 112D0614 1
BOLT-FLANGED,8X55 130 130G0855 4
SCREW-PAN-CROS 220 220C0514 2
SCREW-PAN-CROS 220A 220C0530 2
SCREW-PAN-CROS 220B 220C0535 2
SCREW-PAN-CROS,6X30,BLACK 220C 220C0630 1
SCREW-PAN-WS-CROS 223 223C0512 1
SCREW-PAN-WP-CROS,5X20 224 224B0520 2
SCREW-PAN-WSP-CROS,6X20 225 225C0620 2
NUT-HEX,6MM,BLACK 312 312C0600 1
WASHER-PLAIN,6MM 411 411E0600 1
WASHER-SPRING 461 461L0600 1
