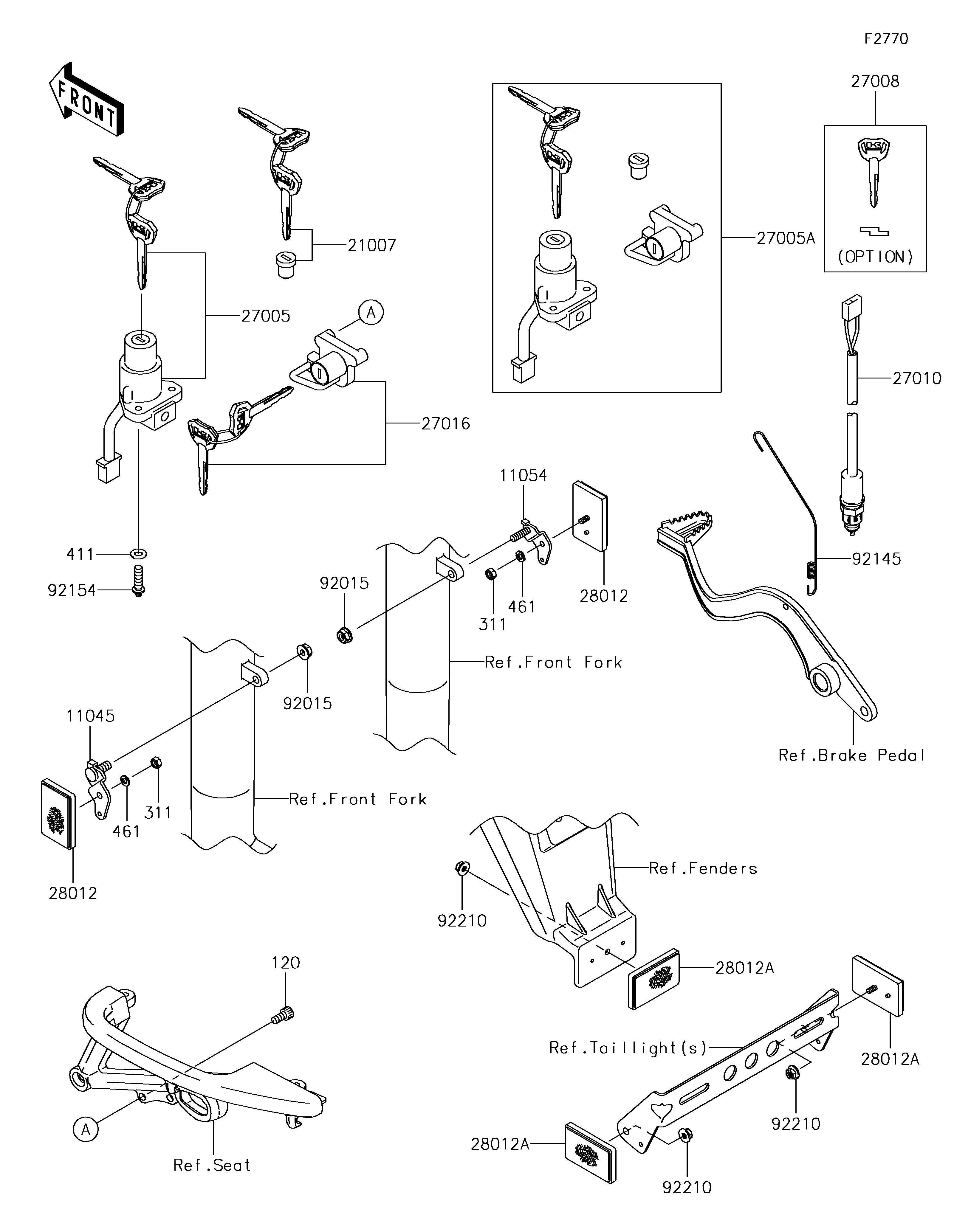

2018 KLR™650 - Ignition Switch(EJF/EJFA)

DOWNLOAD PDF
SELECT A NEW PART
11045
11054
120
21007
27005
27005A
27008
27010
27016
28012
28012
28012A
28012A
28012A
311
311
411
461
461
92015
92015
92145
92154
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR,FR 11045 11045-1354 1
BRACKET,REFLECTOR,FR 11054 11054-1889 1
BOLT-SOCKET,6X12 120 120CB0612 2
ROTOR,LOCK,TANK CAP 21007 21007-5074 1
SWITCH-ASSY-IGNITION 27005 27005-0647 1
SWITCH-ASSY-IGNITION 27005A 27005-5152 1
KEY-LOCK,BLANK 27008 27008-0559 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-0119 1
LOCK-ASSY 27016 27016-5385 1
REFLECTOR-REFLEX 28012 28012-1003 2
REFLECTOR-REFLEX 28012A 28012-1088 3
NUT-HEX,5MM 311 311AB0500 2
WASHER-PLAIN,6MM 411 411AA0600 2
WASHER-SPRING,5MM 461 461DB0500 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
SPRING 92145 92145-0778 1
BOLT,TORX,6X22 92154 92154-1858 2
NUT,FLANGED,5MM 92210 92210-0007 3
