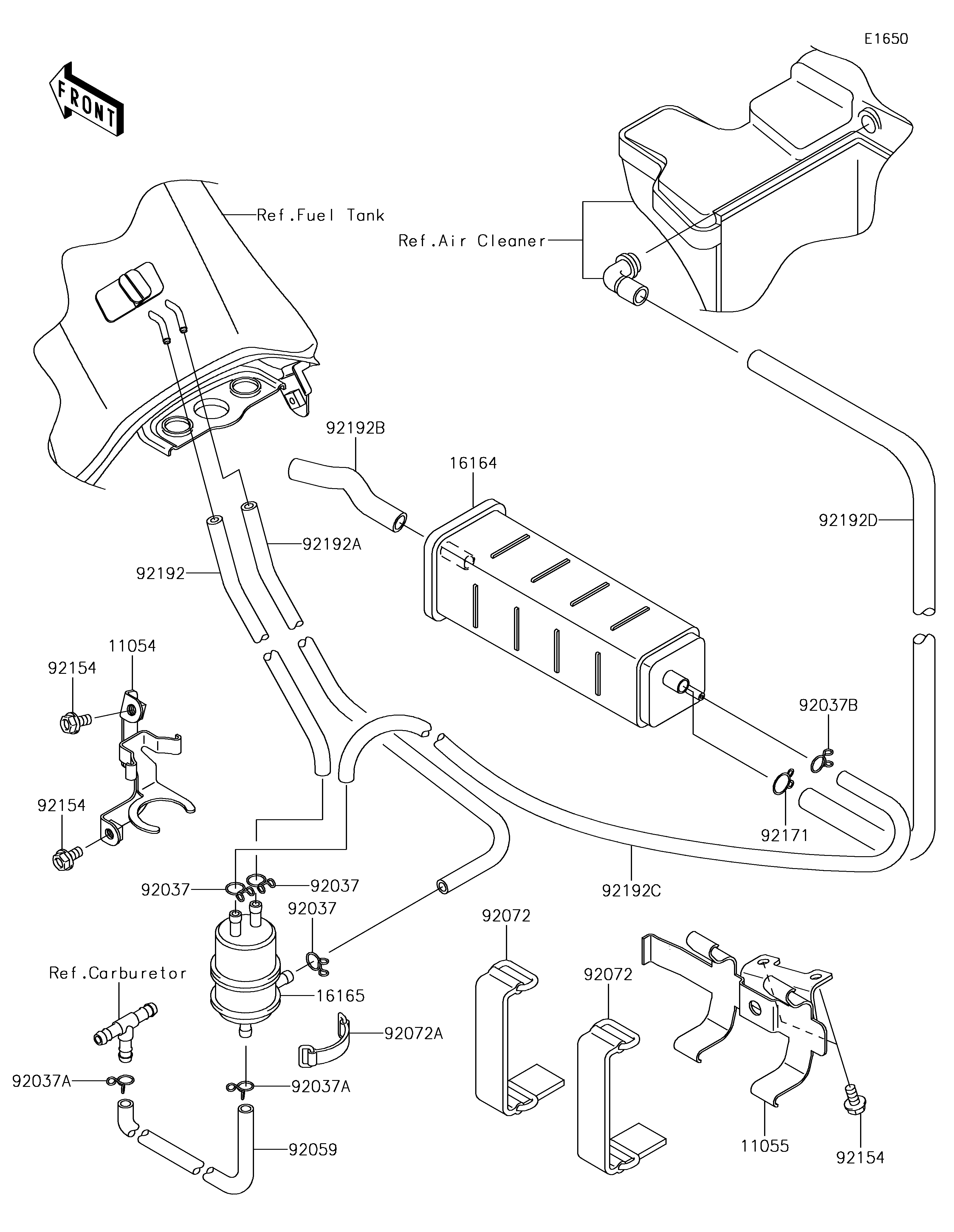

2018 KLR™650 - Fuel Evaporative System(CA)
11054
11055
16164
16165
92037
92037
92037
92037A
92037A
92037B
92059
92072
92072
92072A
92154
92154
92154
92171
92192
92192A
92192B
92192C
92192D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SEPARATOR | 11054 | 11054-0494 | 1 | CA | |
| BRACKET,CANISTER | 11055 | 11055-1266 | 1 | CA | |
| CANISTER | 16164 | 16164-0009 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| CLAMP,TUBE | 92037 | 92037-147 | 3 | CA | |
| CLAMP | 92037A | 92037-1712 | 2 | CA | |
| CLAMP,14MM | 92037B | 92037-1862 | 1 | CA | |
| TUBE,4X9X310,WHITE | 92059 | 92059-1804 | 1 | CA | |
| BAND,L=90 | 92072 | 92072-0135 | 2 | CA | |
| BAND,L=50 | 92072A | 92072-1419 | 1 | CA | |
| BOLT,FLANGED,6X12 | 92154 | 92154-1050 | 4 | CA | |
| CLAMP | 92171 | 92171-0576 | 1 | CA | |
| TUBE,5X9X400 | 92192 | 92192-0519 | 1 | CA | |
| TUBE,5X10X300 | 92192A | 92192-0520 | 1 | CA | |
| TUBE,AIR INTAKE,CANISTER | 92192B | 92192-0743 | 1 | CA | |
| TUBE,SEPARATOR-CANISTER | 92192C | 92192-0758 | 1 | CA | |
| TUBE,A/C-CANISTER | 92192D | 92192-0759 | 1 | CA |
