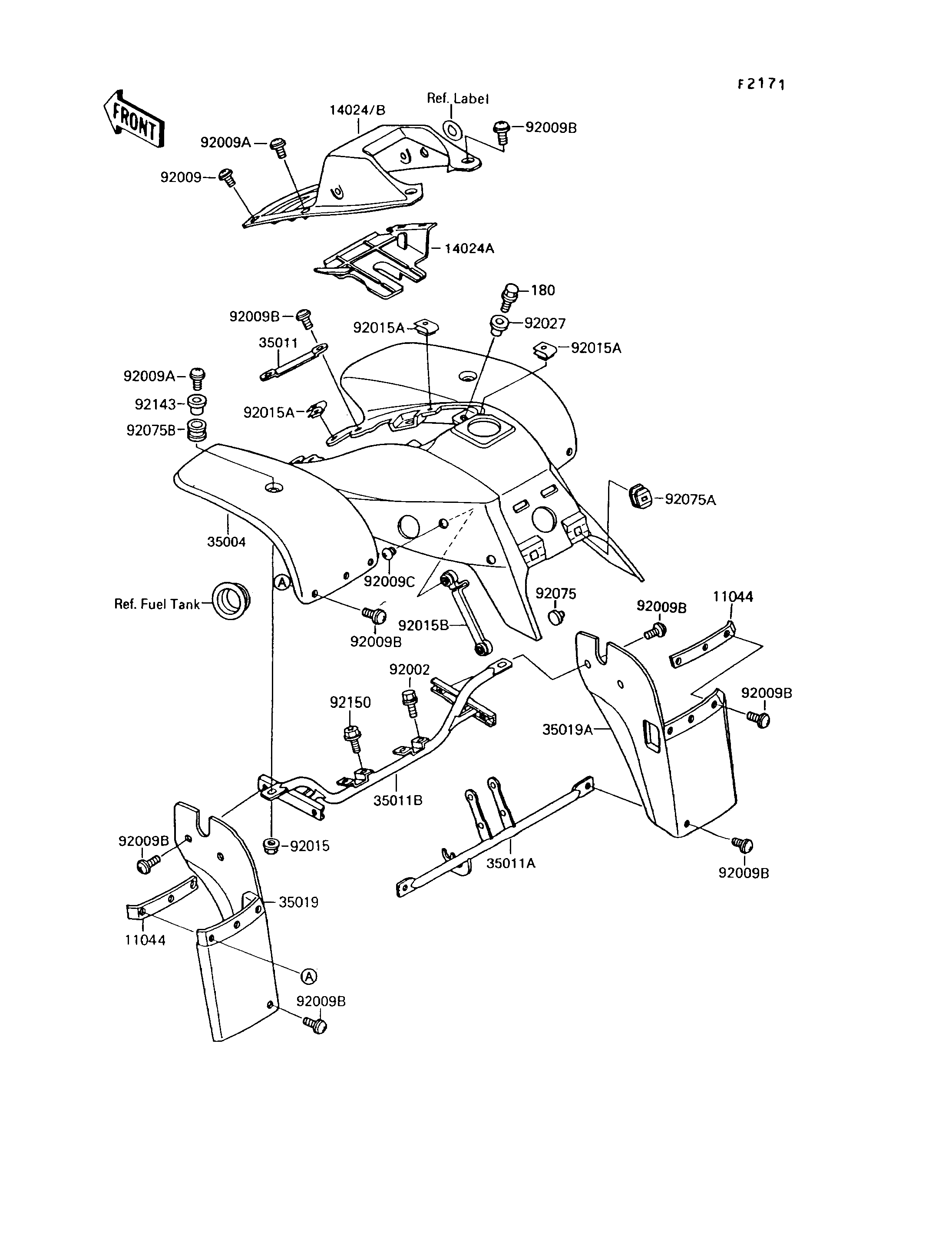

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FLAP | 11044 | 11044-1934 | 2 | ||
| COVER,FRONT FENDER,J.S.VIOLET | 14024 | 14024-1268-RE | 1 | US | |
| COVER,FRONT FENDER,INNER | 14024A | 14024-1297 | 1 | ||
| COVER,FRONT FENDER,J.S.VIOLET | 14024B | 14024-1442-RE | 1 | CN | |
| FENDER-FRONT,P.WHITE | 35004 | 35004-1192-6F | 1 | ||
| STAY,FRONT FENDER | 35011 | 35011-1324 | 1 | ||
| STAY,FLAP,L.GREEN | 35011A | 35011-1637-CC | 1 | ||
| STAY,FRONT FENDER,L.GREEN | 35011B | 35011-1642-CC | 1 | ||
| FLAP,LH | 35019 | 35019-1172 | 1 | ||
| FLAP,RH | 35019A | 35019-1173 | 1 | ||
| BOLT | 92002 | 92002-1626 | 3 | ||
| SCREW,6X18,BLACK | 92009 | 92009-1181 | 2 | ||
| SCREW,6X22,BLACK | 92009A | 92009-1256 | 4 | ||
| SCREW,6X14 | 92009B | 92009-1288 | 16 | ||
| SCREW,16MM | 92009C | 92009-1508 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1233 | 2 | ||
| NUT,CLAMP,6MM | 92015A | 92015-1678 | 6 | ||
| NUT | 92015B | 92015-1701 | 1 | ||
| COLLAR,L=5.6 | 92027 | 92027-1933 | 2 | CN | |
| COLLAR,L=5.6 | 92027 | 92027-1933 | 1 | US | |
| DAMPER,DUAL SEAT | 92075 | 92075-023 | 1 | ||
| DAMPER | 92075A | 92075-1834 | 2 | ||
| DAMPER,CASE | 92075B | 92075-222 | 2 | ||
| COLLAR,L=9.6 | 92143 | 92143-1016 | 2 | ||
| BOLT,FLANGED,6X16 | 92150 | 92150-1358 | 1 | ||
| BOLT-UPSET-WS,6X35 | 180 | 180D0635 | 2 |
