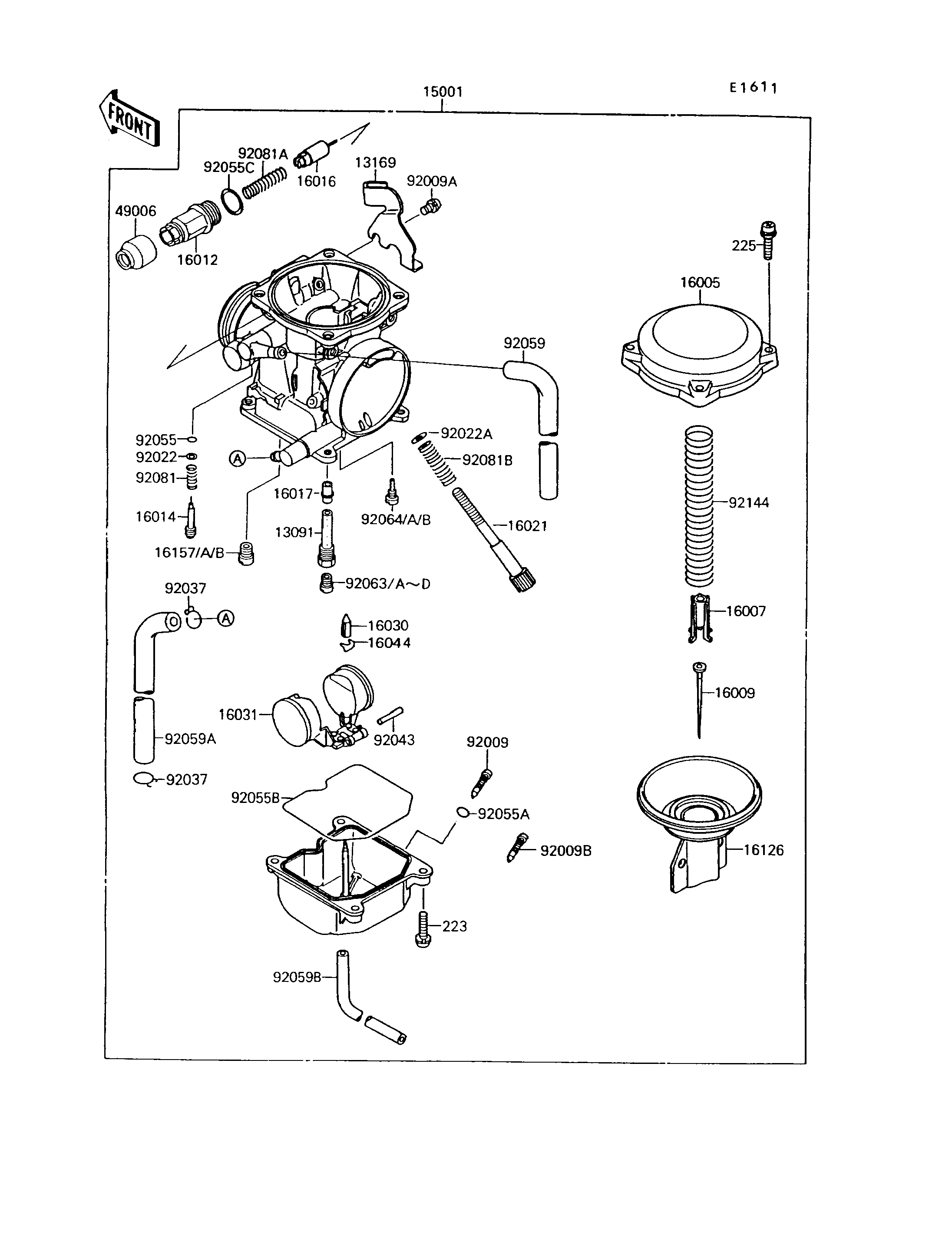

1994 Mojave 250 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1259 1
PLATE,THROTTLE CABLE 13169 13169-1197 1
CARBURETOR-ASSY 15001 15001-1413 1
TOP-CHAMBER,MIXING,27/60 16005 16005-1057 1
SEAT-SPRING,VALVE 16007 16007-1134 1
NEEDLE-JET,N54C 16009 16009-1333 1
CAP-STARTER PLUNGER 16012 16012-1055 1
SCREW-PILOT AIR 16014 16014-1029 1
PLUNGER,STARTER 16016 16016-1065 1
JET-NEEDLE 16017 16017-1319 1
SCREW-THROTTLE STOP 16021 16021-1109 1
VALVE-FLOAT 16030 16030-1007 1
FLOAT 16031 16031-1056 1
CLAMP,FLOAT VALVE 16044 16044-007 1
VALVE,VACUUM 16126 16126-1180 1
JET-STARTER,#55 16157 16157-1056 1
JET-STARTER,#58 16157A 16157-1057 1 (OPTION)
JET-STARTER,#60 16157B 16157-1058 1
BOOT,STARTER PLUNGER 49006 49006-1165 1
SCREW,DRAIN,M6X1.0 92009 92009-1095 1
SCREW,5X10 92009A 92009-1365 1
SCREW,DRAIN,M6X0.75 92009B 92009-1551 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,THROTTLE STOP SCREW 92022A 92022-1587 1
CLAMP,TUBE 92037 92037-1531 2
PIN,FLOAT 92043 92043-1207 1
RING-O,PILOT ADJUST 92055 92055-1002 1
RING-O,DRAIN SCREW 92055A 92055-1053 1
RING-O,FLOAT CHAMBER 92055B 92055-1222 1
RING-O,STARTER PLUNGER 92055C 92055-1416 1
TUBE,6.5X9.5X500 92059 92059-1465 1
TUBE,6.5X11.5X360 92059A 92059-1751 1
TUBE,3.5X6.5X300 92059B 92059-1752 1
JET-MAIN,#135 92063 92063-1014 1 (OPTION)
JET-MAIN,#138 92063A 92063-1015 1 (OPTION)
JET-MAIN,2ND,#128 92063B 92063-1074 1 (OPTION)
JET-MAIN,#130 92063C 92063-1075 1 (OPTION)
JET-MAIN,#132 92063D 92063-1076 1
JET-PILOT,#38 92064 92064-1050 1 (OPTION)
JET-PILOT,#35 92064A 92064-1101 1
JET-PILOT,#32 92064B 92064-1117 1 (OPTION)
SPRING,PILOT ADJUST SCREW 92081 92081-1002 1
SPRING,PLUNGER 92081A 92081-1720 1
SPRING,THROTTLE STOP SCREW 92081B 92081-1721 1
SPRING,VACUUM VALVE 92144 92144-1066 1
SCREW-PAN-WS-CROS 223 223C0416 4
SCREW-PAN-WSP-CROS 225 225C0418 4
