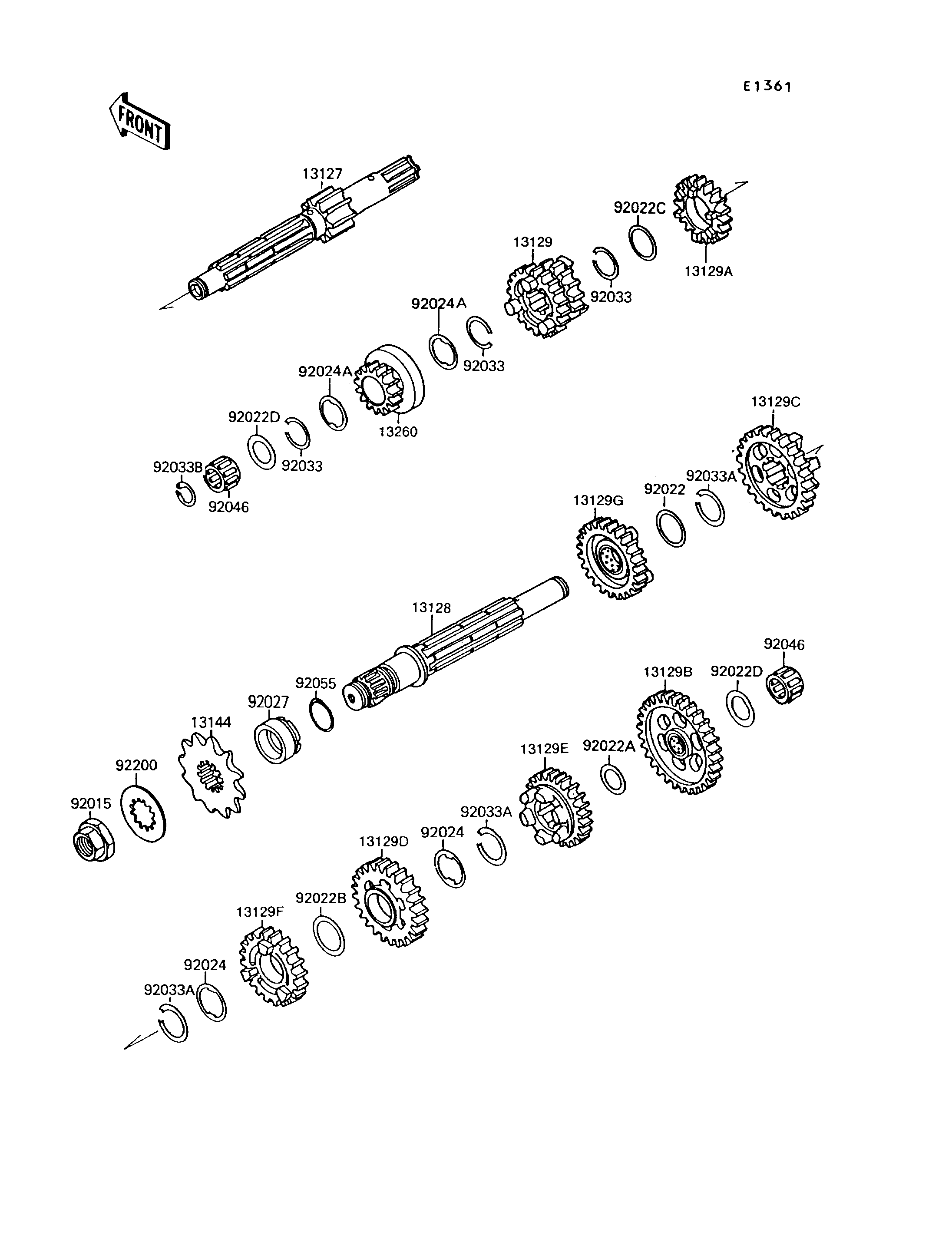

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT | 13127 | 13127-1139 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1171 | 1 | ||
| GEAR,INPUT 3RD&5TH,16T&20T | 13129 | 13129-1798 | 1 | ||
| GEAR,INPUT 4TH,20T | 13129A | 13129-1799 | 1 | ||
| GEAR,OUTPUT LOW,30T | 13129B | 13129-1800 | 1 | ||
| GEAR,OUTPUT 2ND,30T | 13129C | 13129-1801 | 1 | ||
| GEAR,OUTPUT 3RD,24T | 13129D | 13129-1802 | 1 | ||
| GEAR,OUTPUT 4TH,25T | 13129E | 13129-1803 | 1 | ||
| GEAR,OUTPUT 5TH,21T | 13129F | 13129-1804 | 1 | ||
| GEAR,OUTPUT REVERSE,24T | 13129G | 13129-1805 | 1 | ||
| SPROCKET-OUTPUT,12T | 13144 | 13144-1127 | 1 | ||
| GEAR,INPUT 2ND,15T | 13260 | 13260-1077 | 1 | ||
| NUT,20MM | 92015 | 92015-1254 | 1 | ||
| WASHER,25.3X30X0.5 | 92022 | 92022-159 | 1 | ||
| WASHER,17.3X25X0.5 | 92022A | 92022-1614 | 1 | ||
| WASHER,25.3X32X1 | 92022B | 92022-1800 | 1 | ||
| WASHER,22.3X27X0.5 | 92022C | 92022-198 | 1 | ||
| WASHER,17.3X28X1 | 92022D | 92022-255 | 2 | ||
| WASHER,TOOTHED,22.5X31X0.5 | 92024 | 92024-038 | 2 | ||
| WASHER,TOOTHED,22.5X27X0.5 | 92024A | 92024-039 | 2 | ||
| COLLAR,25X32X15.3 | 92027 | 92027-1800 | 1 | ||
| RING-SNAP,20X25.5X1.2 | 92033 | 92033-025 | 3 | ||
| RING-SNAP,24MM | 92033A | 92033-026 | 3 | ||
| RING-SNAP | 92033B | 92033-032 | 1 | ||
| BEARING-NEEDLE,K17X25X13.8X1 | 92046 | 92046-1156 | 2 | ||
| RING-O,21.5MM | 92055 | 92055-1293 | 1 | ||
| WASHER | 92200 | 92200-1065 | 1 |
| SHAFT-TRANSMISSION INPUT | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OUTPUT | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 3RD&5TH,16T&20T | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 4TH,20T | |
| REF # | 13129A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,30T | |
| REF # | 13129B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,30T | |
| REF # | 13129C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,24T | |
| REF # | 13129D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,25T | |
| REF # | 13129E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 5TH,21T | |
| REF # | 13129F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT REVERSE,24T | |
| REF # | 13129G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT,12T | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 2ND,15T | |
| REF # | 13260 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,25.3X30X0.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.3X25X0.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,25.3X32X1 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,22.3X27X0.5 | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.3X28X1 | |
| REF # | 92022D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,TOOTHED,22.5X31X0.5 | |
| REF # | 92024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,TOOTHED,22.5X27X0.5 | |
| REF # | 92024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,25X32X15.3 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,20X25.5X1.2 | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,24MM | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,K17X25X13.8X1 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,21.5MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
