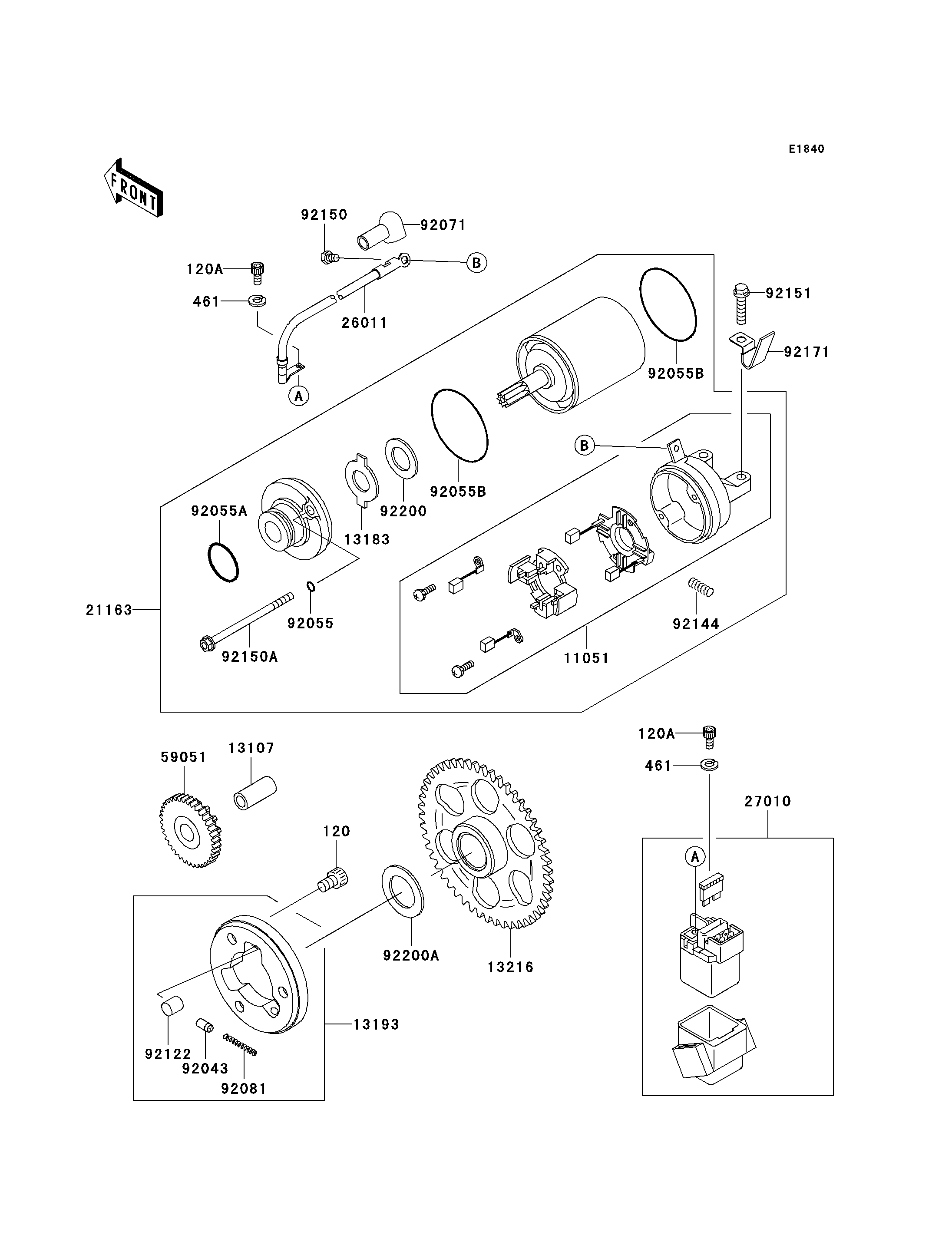

2006 ZZR600 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
120A
120A
461
461
11051
13107
13183
13193
13216
21163
26011
27010
59051
92043
92055
92055A
92055B
92055B
92071
92081
92122
92144
92150
92150A
92151
92171
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X12 120 120P0812 3
BOLT-SOCKET,5X10 120A 120S0510 2
WASHER-SPRING,5MM,BLACK 461 461K0500 2
BRACKET,STARTER MOTOR 11051 11051-1916 1
SHAFT,7.8X12X26.5 13107 13107-1176 1
PLATE 13183 13183-1460 1
CLUTCH-ASSY-ONEWAY 13193 13193-0001 1
GEAR-COMP,ONEWAY CLUTCH,65T 13216 13216-1194 1
STARTER-ELECTRIC 21163 21163-1304 1
WIRE-LEAD,STARTER 26011 26011-1694 1
SWITCH 27010 27010-1380 1
GEAR-SPUR,IDLE,48T&14T 59051 59051-1200 1
PIN 92043 92043-132 3
RING-O,4.5MM 92055 92055-1261 2
RING-O,24.4X3.1 92055A 92055-1262 1
RING-O 92055B 92055-1455 2
GROMMET,TERMINAL 92071 92071-1182 1
SPRING,COIL 92081 92081-159 3
ROLLER 92122 92122-006 3
SPRING,BRUSH 92144 92144-1423 4
BOLT 92150 92150-1305 1
BOLT 92150A 92150-1326 2
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 2
CLAMP 92171 92171-1238 1
WASHER 92200 92200-1019 1
WASHER,27.5X38X1.0 92200A 92200-1393 1
