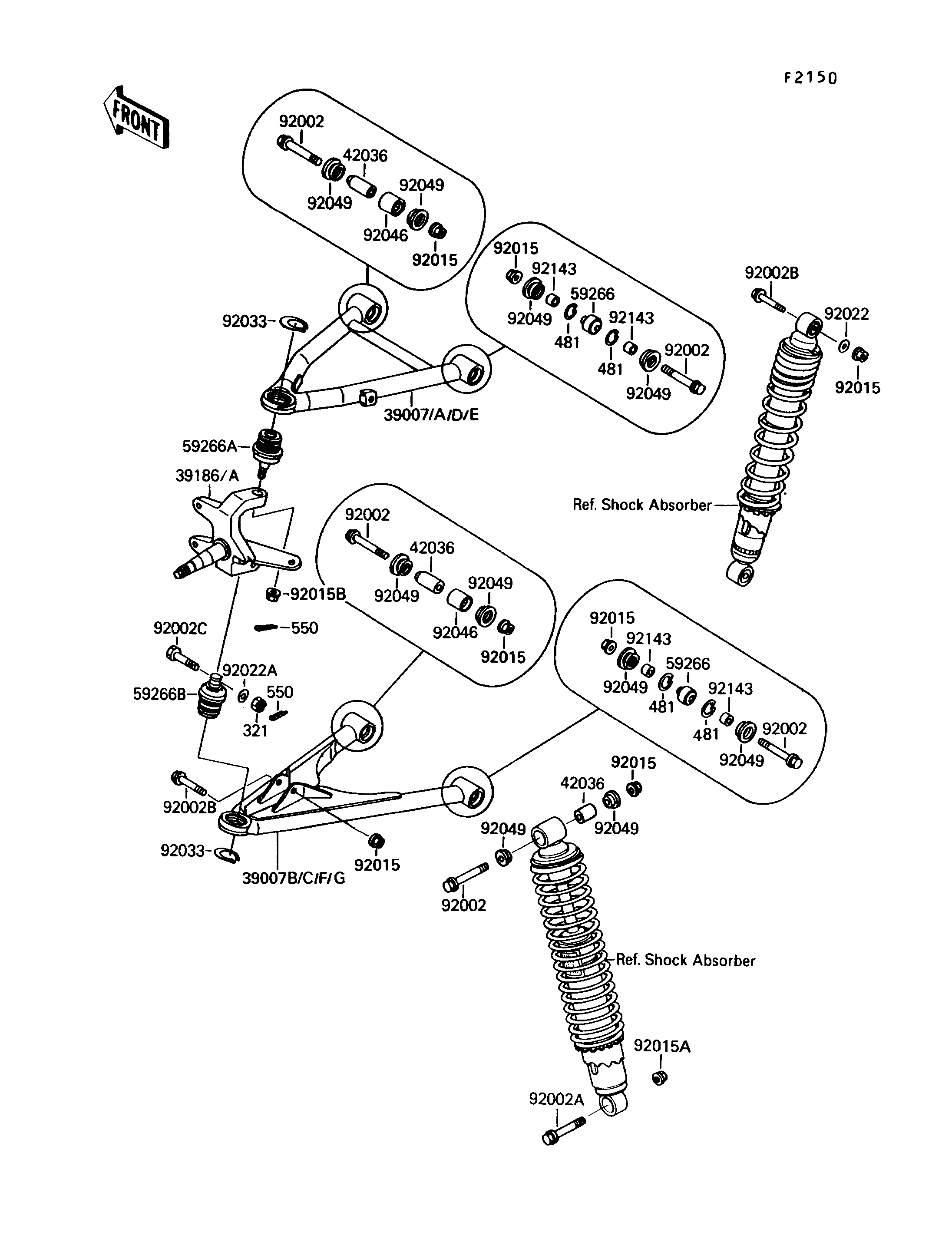

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM-SUSP,LH,UPP,L.GREEN | 39007D | 39007-1220-CC | 1 | ||
| ARM-SUSP,RH,UPP,L.GREEN | 39007E | 39007-1221-CC | 1 | ||
| ARM-SUSP,FR,LH,LWR,L.GREEN | 39007F | 39007-1222-CC | 1 | ||
| ARM-SUSP,FR,RH,LWR,L.GREEN | 39007G | 39007-1223-CC | 1 | ||
| KNUCKLE,LH | 39186 | 39186-1062 | 1 | ||
| KNUCKLE,RH | 39186A | 39186-1064 | 1 | ||
| SLEEVE,10X17X40 | 42036 | 42036-1183 | 5 | ||
| JOINT-BALL | 59266 | 59266-1011 | 4 | ||
| JOINT-BALL | 59266A | 59266-1075 | 2 | ||
| JOINT-BALL | 59266B | 59266-1077 | 2 | ||
| BOLT,FLANGED,10X61 | 92002 | 92002-1738 | 9 | ||
| BOLT,FLANGED,12X78 | 92002A | 92002-1739 | 1 | ||
| BOLT,FLANGED,10X46 | 92002B | 92002-1740 | 4 | ||
| BOLT,10X41 | 92002C | 92002-1741 | 2 | ||
| NUT,LOCK,10MM | 92015 | 92015-1597 | 13 | ||
| NUT,LOCK,12MM | 92015A | 92015-1617 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92015B | 92015-1717 | 2 | ||
| WASHER,10X22X3.2 | 92022 | 92022-176 | 2 | ||
| WASHER,10.2X16X1 | 92022A | 92022-1829 | 2 | ||
| RING-SNAP,30MM | 92033 | 92033-1218 | 4 | ||
| BEARING-NEEDLE | 92046 | 92046-1046 | 4 | ||
| SEAL-OIL,MHA17245.7F | 92049 | 92049-1223 | 18 | ||
| COLLAR,10X17X12 | 92143 | 92143-1010 | 8 | ||
| NUT-CASTLE | 321 | 321H1000 | 2 | ||
| CIRCLIP | 481 | 481J2400 | 8 | ||
| PIN-COTTER,2.0X15 | 550 | 550D2015 | 4 |
