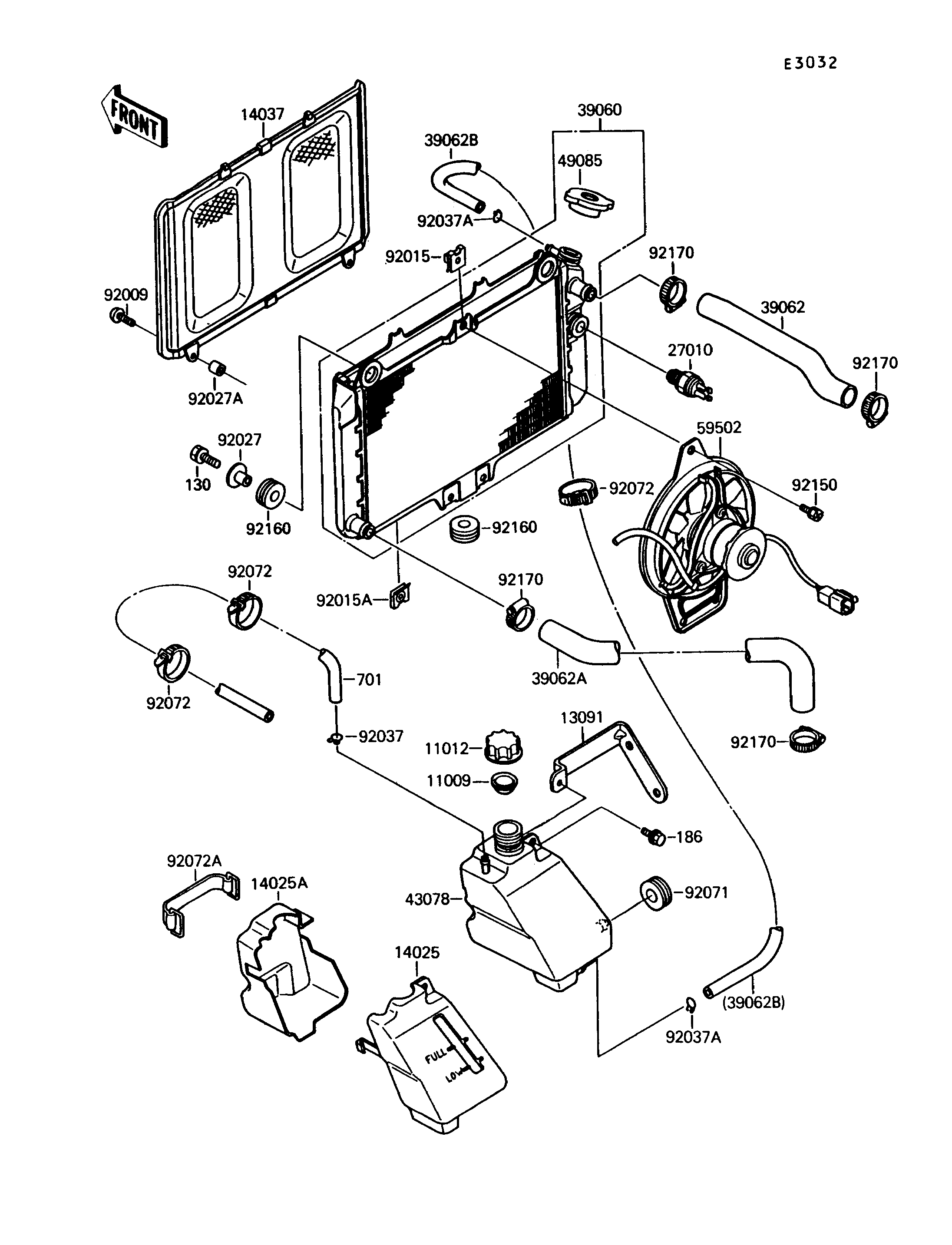

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| HOLDER,RESERVOIR | 13091 | 13091-1435 | 1 | ||
| COVER,RESERVOIR | 14025 | 14025-1991 | 1 | ||
| COVER,RESERVOIR | 14025A | 14025-1992 | 1 | ||
| SCREEN | 14037 | 14037-1083 | 1 | ||
| SWITCH,FAN | 27010 | 27010-1206 | 1 | ||
| RADIATOR | 39060 | 39060-1071 | 1 | ||
| HOSE-COOLING,HEAD-RADIATOR | 39062 | 39062-1191 | 1 | ||
| HOSE-COOLING,RADIATOR-PUMP | 39062A | 39062-1192 | 1 | ||
| HOSE-COOLING | 39062B | 39062-1208 | 1 | ||
| RESERVOIR,TANK | 43078 | 43078-1061 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1005 | 1 | ||
| FAN-ASSY | 59502 | 59502-1065 | 1 | ||
| SCREW,TAPPING,6X20 | 92009 | 92009-1422 | 2 | ||
| NUT | 92015 | 92015-1487 | 3 | ||
| NUT,6MM | 92015A | 92015-1758 | 2 | ||
| COLLAR,L=14 | 92027 | 92027-1134 | 2 | ||
| COLLAR,6.8X10X10.5 | 92027A | 92027-120 | 2 | ||
| CLAMP,TUBE | 92037 | 92037-010 | 1 | ||
| CLAMP,TUBE | 92037A | 92037-147 | 2 | ||
| GROMMET | 92071 | 92071-1115 | 1 | ||
| BAND,L=149 | 92072 | 92072-031 | 3 | ||
| BAND,L=82 | 92072A | 92072-053 | 1 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 3 | ||
| DAMPER | 92160 | 92160-1007 | 3 | ||
| CLAMP,COOLING HOSE | 92170 | 92170-1033 | 4 | ||
| BOLT-FLANGED,8X25,BLACK | 130 | 130J0825 | 2 | ||
| BOLT-UPSET-WP | 186 | 186J0618 | 1 | ||
| TUBE-PVC | 701 | 701Q05750 | 1 |
