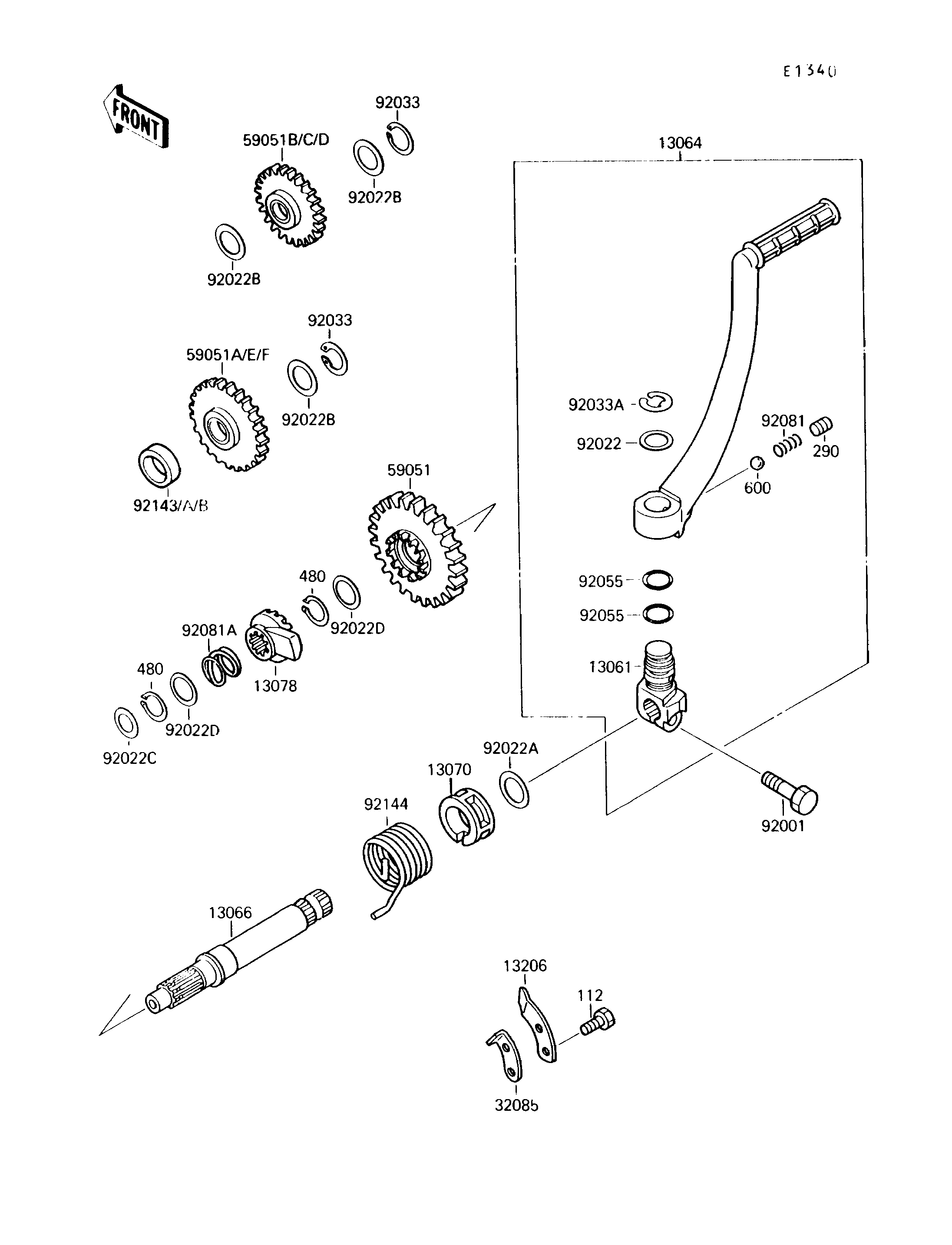

1993 Mojave 250 - Kickstarter Mechanism
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOSS,KICK PEDAL | 13061 | 13061-1189 | 1 | ||
| LEVER-ASSY-KICK | 13064 | 13064-1127 | 1 | ||
| SHAFT-KICK | 13066 | 13066-1062 | 1 | ||
| GUIDE,KICK SPRING | 13070 | 13070-011 | 1 | ||
| RATCHET | 13078 | 13078-1053 | 1 | ||
| GUIDE-KICK | 13206 | 13206-1056 | 1 | ||
| STOPPER | 32085 | 32085-1237 | 1 | ||
| GEAR-SPUR,KICKSTARTER,30T | 59051 | 59051-1170 | 1 | ||
| GEAR,REVERSE SHAFT,21T | 59051C | 59051-1220 | 1 | ||
| GEAR,KICKSTARTER IDLE,25T | 59051E | 59051-1221 | 1 | ||
| BOLT,8X28 | 92001 | 92001-1042 | 1 | ||
| WASHER,15.2X20X1 | 92022 | 92022-1019 | 1 | ||
| WASHER,18.5X23X1.2 | 92022A | 92022-118 | 1 | ||
| WASHER,17.3X22X0.5 | 92022B | 92022-1799 | 3 | ||
| WASHER,12.3X20X0.5 | 92022C | 92022-269 | 1 | ||
| WASHER,16.8X22X0.5 | 92022D | 92022-315 | 2 | ||
| RING-SNAP | 92033 | 92033-032 | 2 | ||
| RING-SNAP,10MM | 92033A | 92033-1166 | 1 | ||
| RING-O,10X1.5 | 92055 | 92055-061 | 2 | ||
| SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
| SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
| COLLAR,17.1X24X9 | 92143A | 92143-1330 | 1 | ||
| SPRING,KICKSTARTER | 92144 | 92144-1001 | 1 | ||
| BOLT-UPSET | 112 | 112G0618 | 2 | ||
| SCREW-SET-SOCKET,8X8 | 290 | 290Q0808 | 1 | ||
| CIRCLIP-TYPE-C,16MM | 480 | 480J1600 | 2 | ||
| BALL-STEEL,1/4" | 600 | 600A0800 | 1 |
