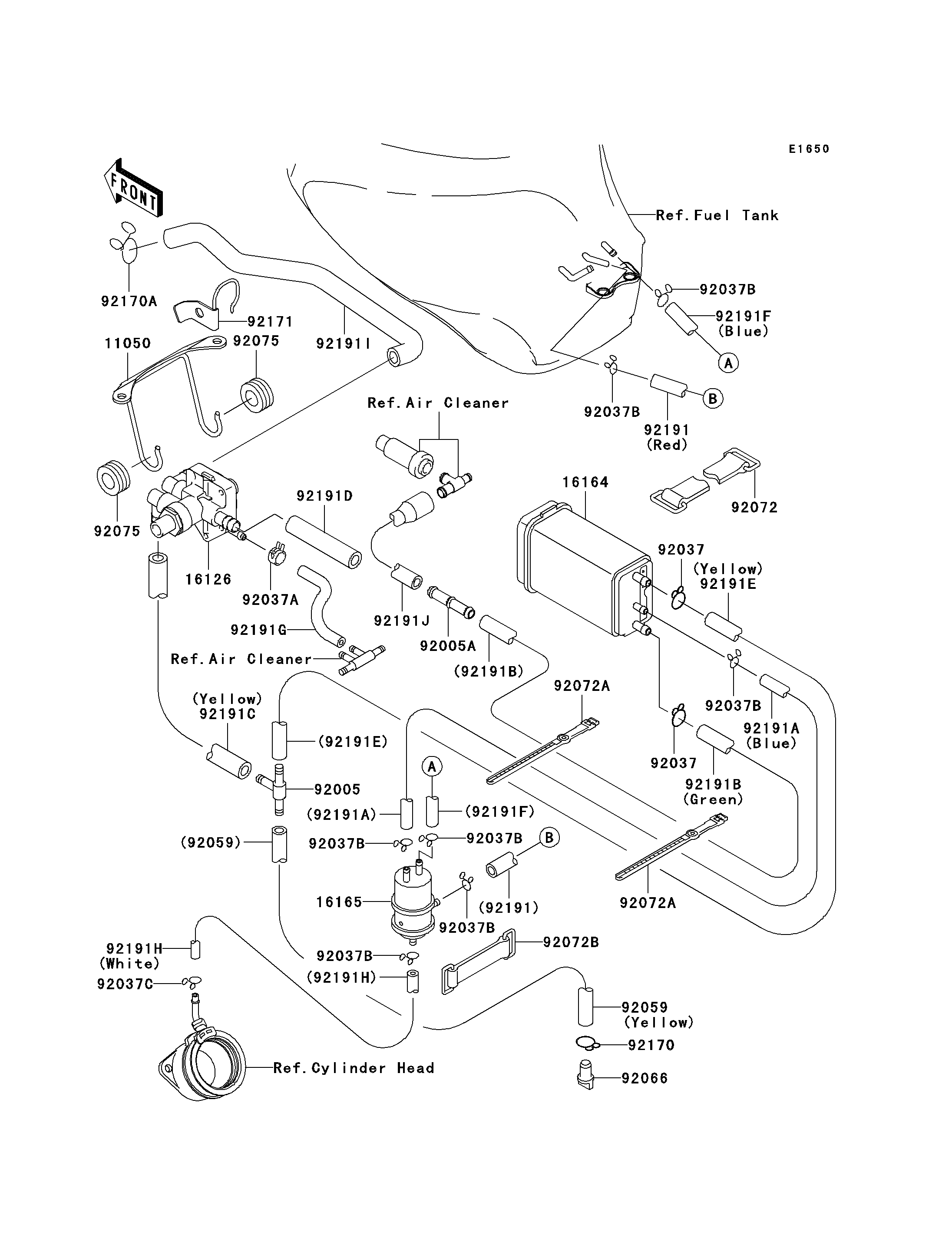

2006 ZZR600 - Fuel Evaporative System(CA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11050 | 11050-1729 | 1 | CA | |
| VALVE | 16126 | 16126-1354 | 1 | CA | |
| CANISTER | 16164 | 16164-1052 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| FITTING | 92005 | 92005-1304 | 1 | CA | |
| FITTING | 92005A | 92005-1377 | 1 | CA | |
| CLAMP,HOSE | 92037 | 92037-1104 | 2 | CA | |
| CLAMP,TUBE | 92037A | 92037-1461 | 1 | CA | |
| CLAMP,TUBE | 92037B | 92037-147 | 7 | CA | |
| CLAMP | 92037C | 92037-1712 | 1 | CA | |
| TUBE,7X12X440,YELLOW | 92059 | 92059-1440 | 1 | CA | |
| PLUG,DRAIN | 92066 | 92066-1211 | 1 | CA | |
| BAND,L=90 | 92072 | 92072-045 | 1 | CA | |
| BAND,L=202 | 92072A | 92072-1195 | 2 | CA | |
| BAND,L=50 | 92072B | 92072-1419 | 1 | CA | |
| DAMPER,MUFFLER | 92075 | 92075-1621 | 2 | CA | |
| CLAMP | 92170 | 92170-1529 | 1 | CA | |
| CLAMP | 92170A | 92170-1997 | 1 | CA | |
| CLAMP | 92171 | 92171-1236 | 1 | CA | |
| TUBE,SEPARATOR-TANK,RED | 92191 | 92191-1234 | 1 | CA | |
| TUBE,SEPARATOR-CANIST,BLUE | 92191A | 92191-1236 | 1 | CA | |
| TUBE,CANISTER-FILTER,GREEN | 92191B | 92191-1237 | 1 | CA | |
| TUBE,VALVE-FITTING,YELLOW | 92191C | 92191-1238 | 1 | CA | |
| TUBE,CARB-VALVE | 92191D | 92191-1240 | 1 | CA | |
| TUBE,FITTING-CANIST,YELLOW | 92191E | 92191-1250 | 1 | CA | |
| TUBE,SEPARATOR-TANK,BLUE | 92191F | 92191-1268 | 1 | CA | |
| TUBE,FITTING-VALVE | 92191G | 92191-1275 | 1 | CA | |
| TUBE,SEPARATOR-CARB,WHITE | 92191H | 92191-1276 | 1 | CA | |
| TUBE,AIR VENT-VALVE | 92191I | 92191-1503 | 1 | CA | |
| TUBE | 92191J | 92191-1514 | 1 | CA |
| BRACKET | |
| REF # | 11050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| VALVE | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| SEPARATOR | |
| REF # | 16165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FITTING | |
| REF # | 92005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,7X12X440,YELLOW | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| PLUG,DRAIN | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=90 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=202 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=50 | |
| REF # | 92072B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| DAMPER,MUFFLER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92170A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARATOR-TANK,RED | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARATOR-CANIST,BLUE | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,CANISTER-FILTER,GREEN | |
| REF # | 92191B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,VALVE-FITTING,YELLOW | |
| REF # | 92191C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,CARB-VALVE | |
| REF # | 92191D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,FITTING-CANIST,YELLOW | |
| REF # | 92191E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARATOR-TANK,BLUE | |
| REF # | 92191F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,FITTING-VALVE | |
| REF # | 92191G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARATOR-CARB,WHITE | |
| REF # | 92191H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,AIR VENT-VALVE | |
| REF # | 92191I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE | |
| REF # | 92191J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
