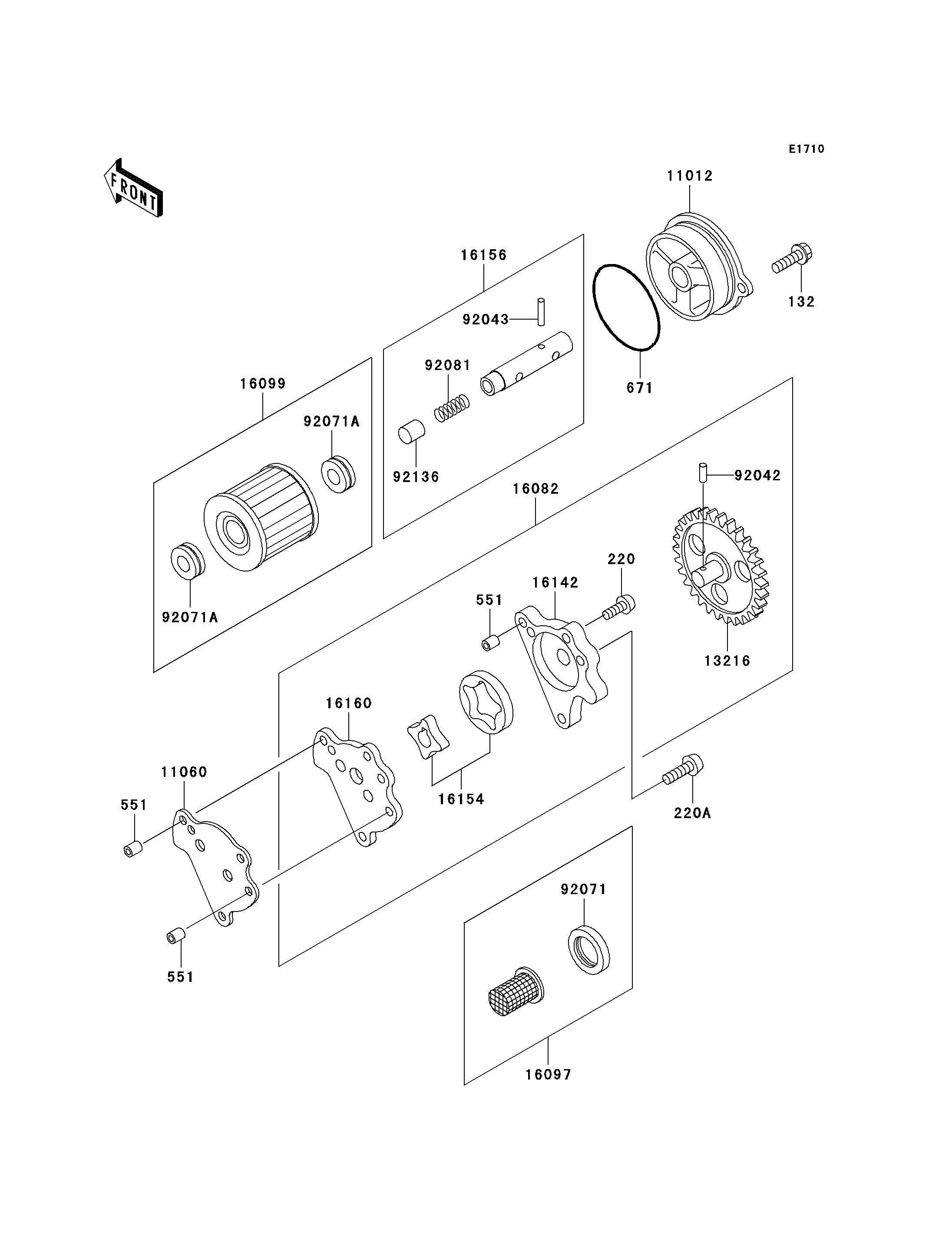

2003 Mojave 250 - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
132
220
220A
551
551
551
671
11012
11060
13216
16082
16097
16099
16142
16154
16156
16160
92042
92043
92071
92071A
92071A
92081
92136
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0620 2
SCREW-PAN-CROS,6X14 220 220B0614 1
SCREW-PAN-CROS,6X25 220A 220B0625 3
PIN-DOWEL,6X8 551 551A0608 3
O RING,55MM 671 671B2555 1
CAP,OIL FILTER 11012 11012-1695 1
GASKET,OIL PUMP 11060 11060-1130 1
GEAR-COMP,OIL PUMP 13216 13216-1096 1
PUMP-ASSY-OIL 16082 16082-1082 1
FILTER-ASSY-OIL 16097 16097-1001 1
ELEMENT-OIL FILTER 16099 16099-004 1
COVER-PUMP 16142 16142-1056 1
ROTOR-PUMP 16154 16154-1008 1
PISTON-ASSY,VALVE,BY-PASS 16156 16156-002 1
BODY,OIL PUMP 16160 16160-1069 1
PIN,DOWEL,4X12.8 92042 92042-041 1
PIN,SPRING,2.2X13.5 92043 92043-123 1
GROMMET,OIL STRAINER 92071 92071-100 1
GROMMET,OIL FILTER 92071A 92071-101 2
SPRING,PISTON 92081 92081-043 1
VALVE 92136 92136-002 1
