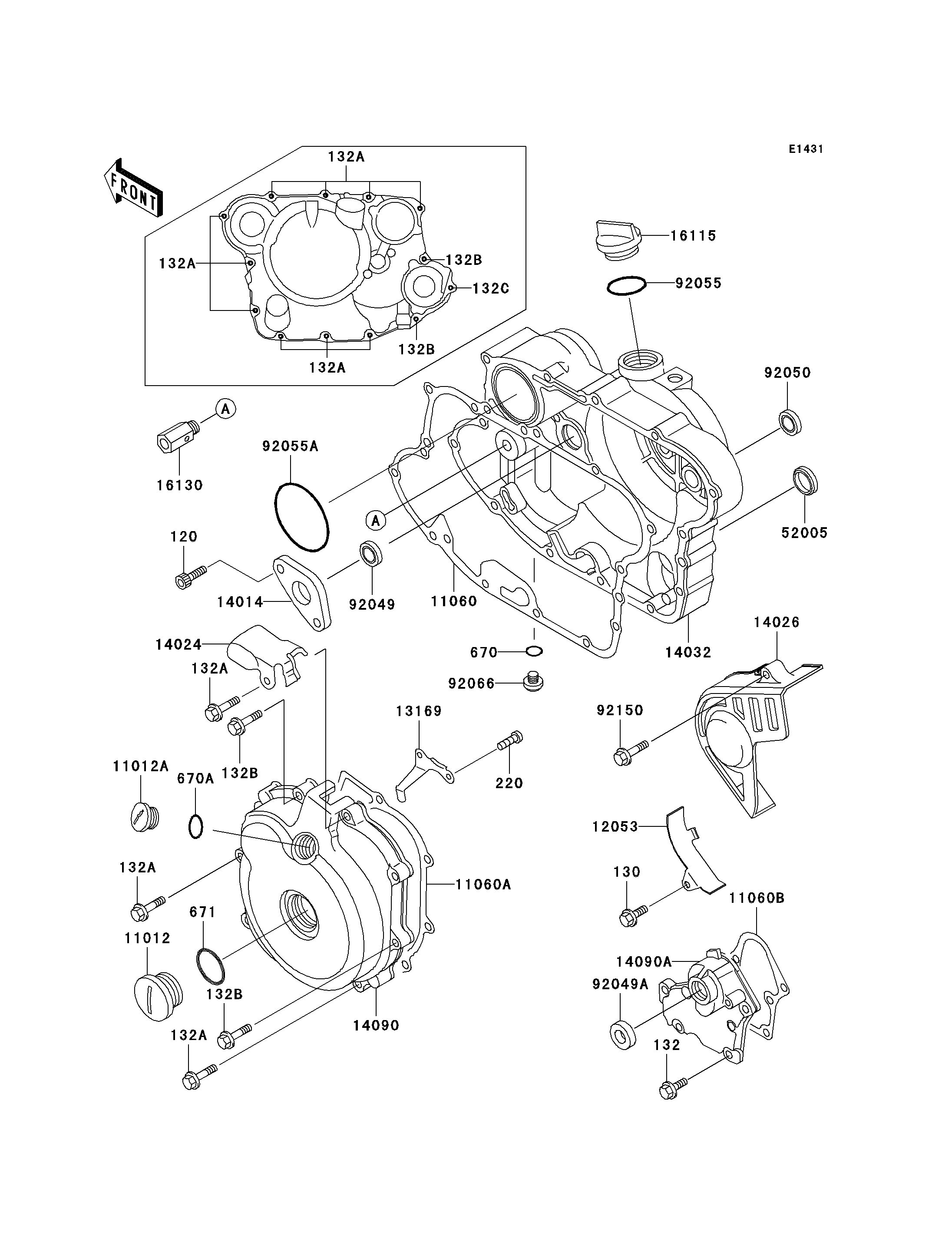

2003 Mojave 250 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
120
130
132
132A
132A
132A
132A
132A
132A
132B
132B
132B
132B
132C
220
670
670A
671
11012
11012A
11060
11060A
11060B
12053
13169
14014
14024
14026
14032
14090
14090A
16115
16130
52005
92049
92049A
92050
92055
92055A
92066
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X10 120 120P0610 2
BOLT-FLANGED 130 130J0610 1
BOLT-FLANGED-SMALL 132 132J0620 5
BOLT-FLANGED-SMALL 132A 132J0630 17
BOLT-FLANGED-SMALL,6X40 132B 132J0640 4
BOLT-FLANGED-SMALL 132C 132J0695 1
SCREW-PAN-CROS 220 220B0512 2
O RING,11MM 670 670B2011 1
O RING,18MM 670A 670B2018 1
O RING,40MM 671 671B2540 1
CAP 11012 11012-1362 1
CAP,TOP MARK 11012A 11012-1363 1
GASKET,CLUTCH COVER 11060 11060-1238 1
GASKET,GENERATOR 11060A 11060-1239 1
GASKET,REVERSE COVER 11060B 11060-1240 1
GUIDE-CHAIN 12053 12053-1196 1
PLATE,GENERATOR LEAD 13169 13169-1692 1
PLATE-POSITION 14014 14014-1079 1
COVER 14024 14024-1363 1
COVER-CHAIN 14026 14026-1212 1
COVER-CLUTCH 14032 14032-1455 1
COVER,GENERATOR 14090 14090-1757 1
COVER,REVERSE 14090A 14090-1758 1
CAP-OIL FILLER 16115 16115-1009 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
GAUGE,OIL LEVEL 52005 52005-1009 1
SEAL-OIL 92049 92049-1191 1
SEAL-OIL,TB12205.5 92049A 92049-1271 1
SEAL-OIL 92050 92050-078 1
RING-O,31.7X2.4 92055 92055-049 1
RING-O,62.6X66X3.1 92055A 92055-1221 1
PLUG,DRAIN 92066 92066-1156 1
BOLT,FLANGED,6X30 92150 92150-1915 2
